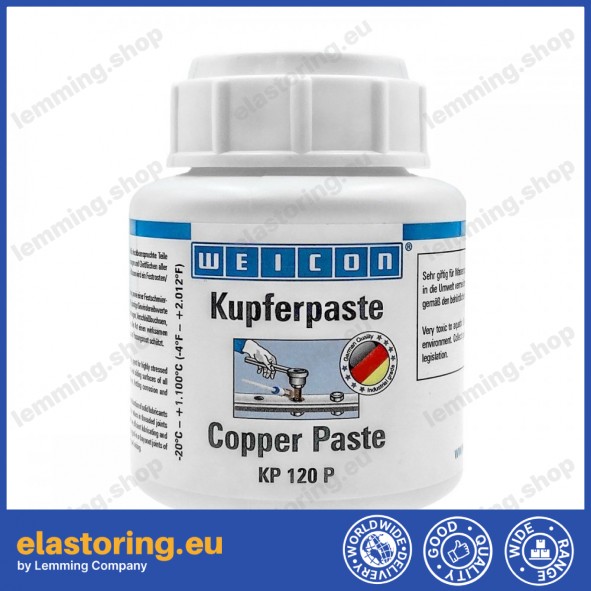

Copper assembly paste Weicon Copper Paste 120 g [26200012]

WEICON Copper Paste is a high-performance assembly paste designed for screw connections and sliding surfaces. It offers exceptional protection against corrosion, seizure, and wear—even at extreme temperatures up to +1100 °C. The paste provides excellent adhesion and contains no sulfur, lead, or nickel, making it safe for sensitive applications.

Recommended uses:

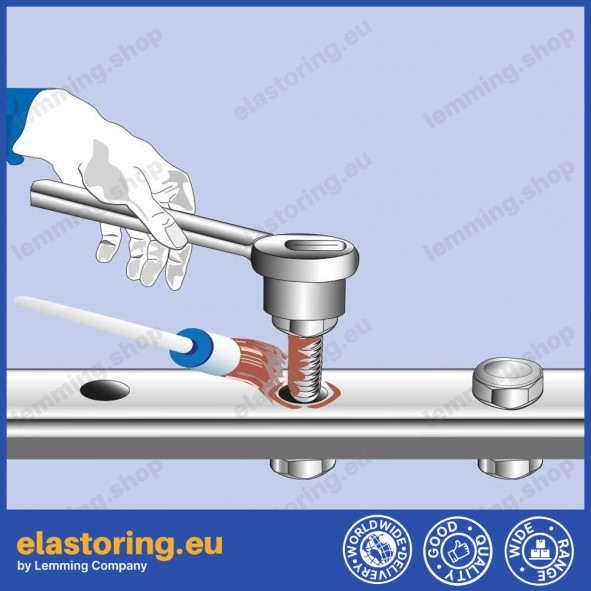

• Threaded joints, bolts, nuts, mechanical couplings

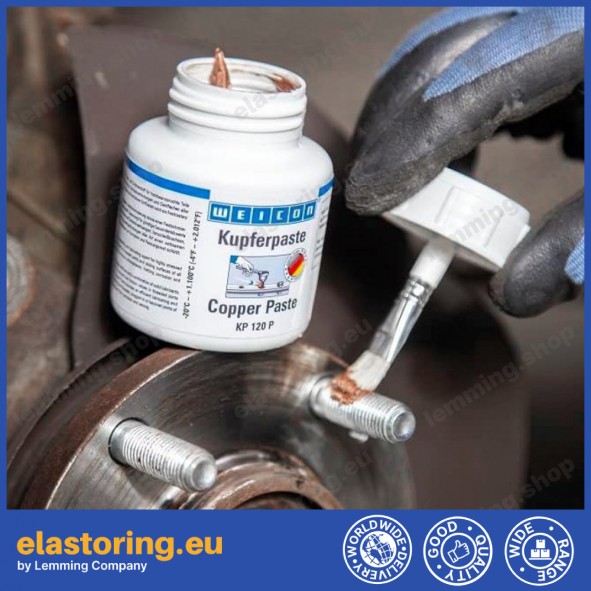

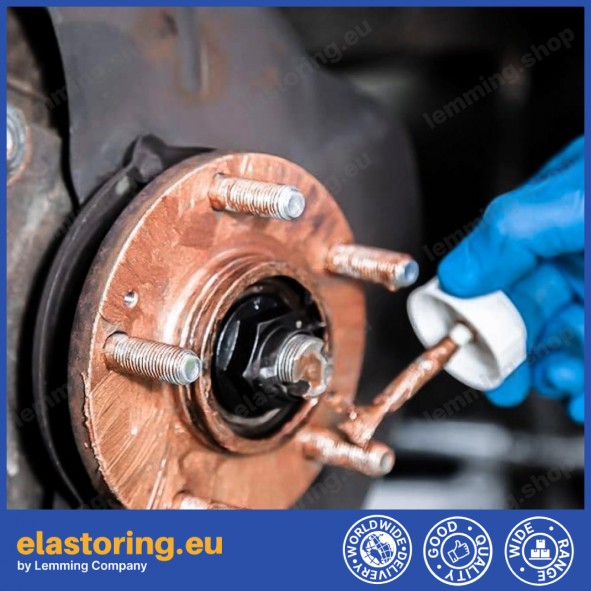

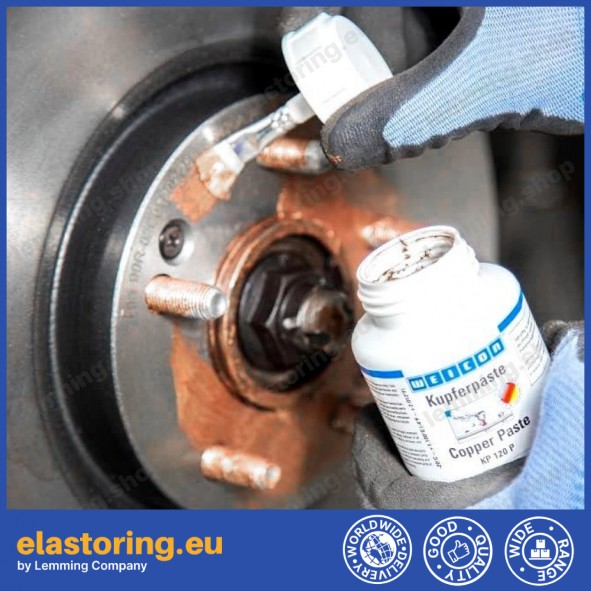

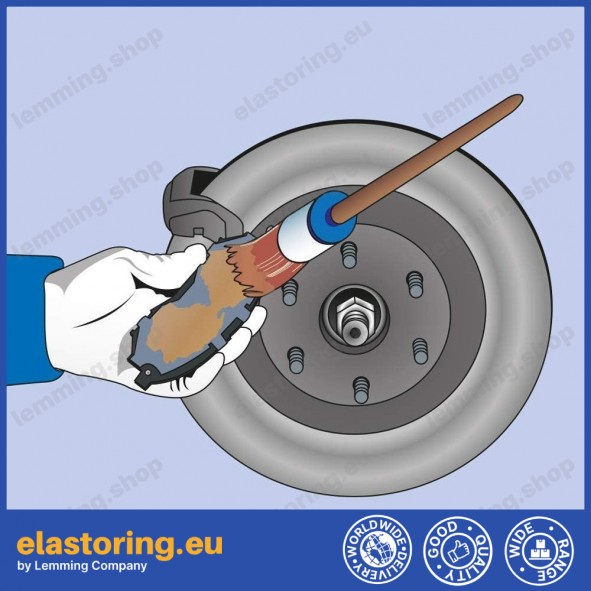

• Brake system components: pads, guides, cams, pins

• Battery terminals, electrical connections

• Wear sleeves and guides in hydraulic, pneumatic, and electric hammers

Technical Data:

• Base: mineral oil

• Color: copper

• Contains silicone: no

• Thickener: complex aluminum soap

• NLGI grade: 1

• Temperature resistance: -20 °C to +1100 °C

• Friction coefficient (overall): 0.11–0.13

• Thermal conductivity (20 °C): 0.392 W/m·K

• Dielectric strength: 1.7 kV/mm

• Dropping point: +180 °C

• Density: 1.1 g/cm³

• IMPA Code: 450888/89/90/91/92
