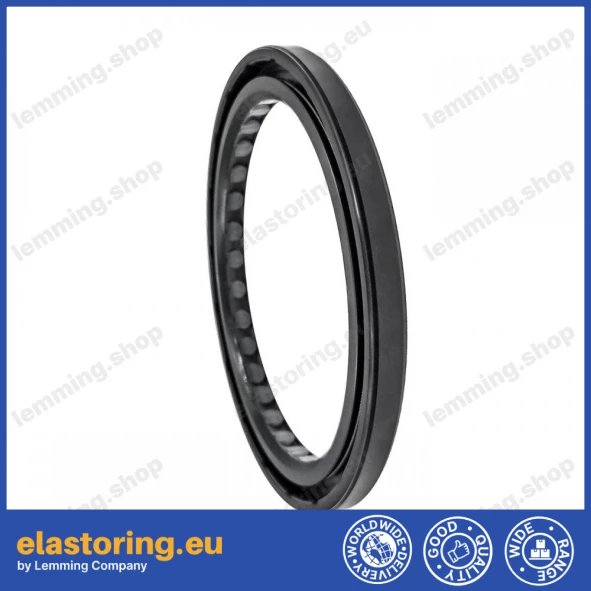

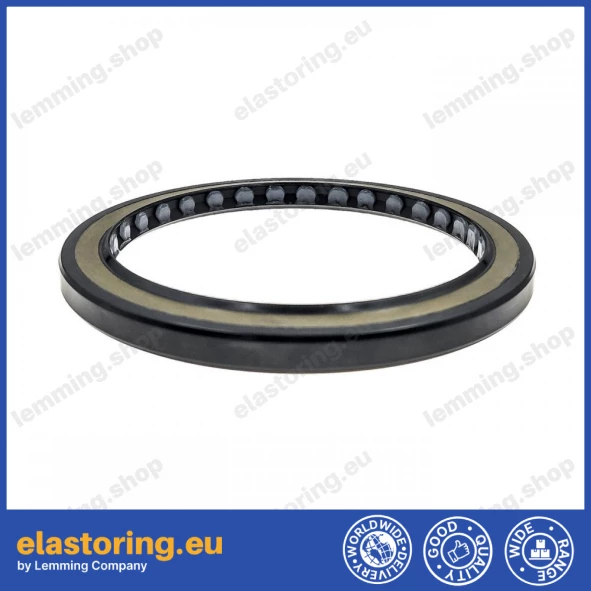

High pressure oil seal 80x100x7 BAHDSL1.5 NBR

The high-pressure oil seal 80x100x7 BAHDSL1.5 NBR (model: 1907006, SKU: 14001) is a sealing element designed for shaft applications in hydraulic systems and hydrokinetic drives operating under high pressure.
The front-side metal insert provides deformation resistance and ensures stable contact with the housing.
Made from NBR (nitrile rubber), it is compatible with hydraulic oils and lubricants.

Technical specifications:
• Working pressure: up to 100 bar (max 150 bar)
• Linear speed: up to 2 m/s
• Operating temperature: –30 °C to +105 °C
• Material: NBR (nitrile rubber)
• Dimensions: 80x100x7 mm (≈ 3.15x3.94x0.28 in)

Seals marked BAHDSL1.5, BAHD, BAHDSN and BAKHDSN are interchangeable and suitable for the same applications.
