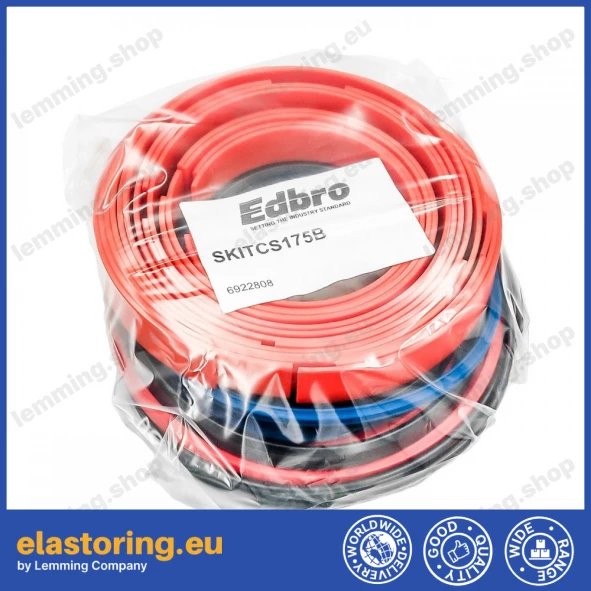

Original repair kit for 5 stage telescopic cylinder manufacturer EDBRO CS17 series.

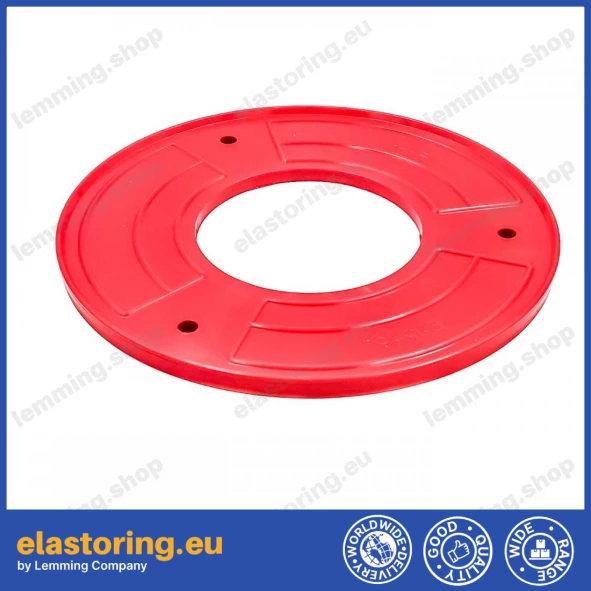

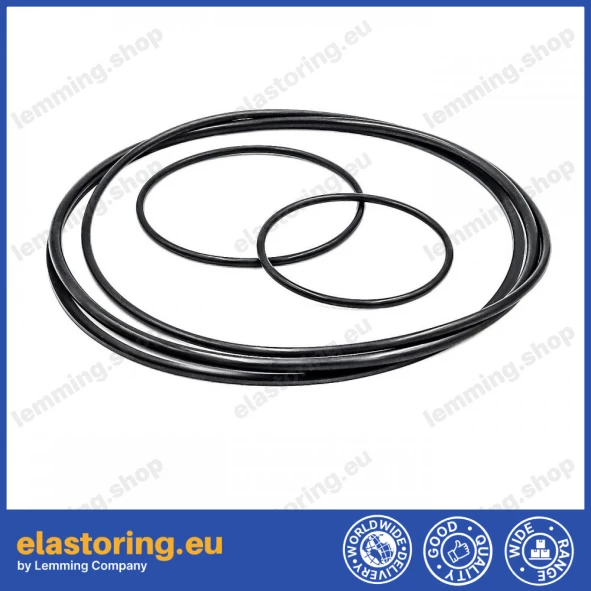

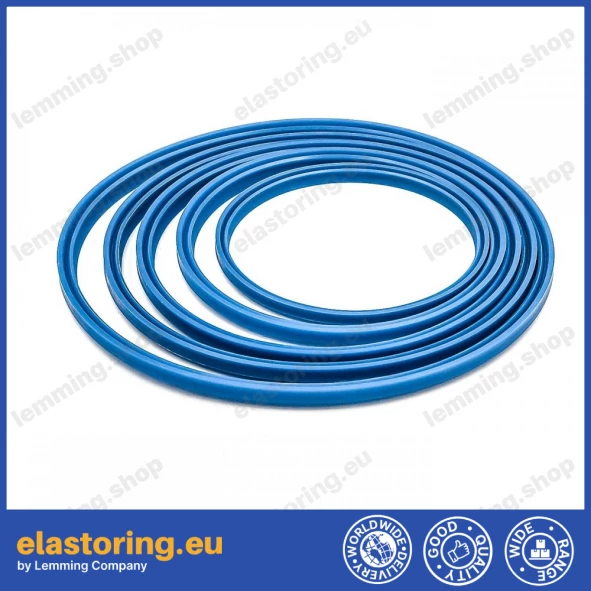

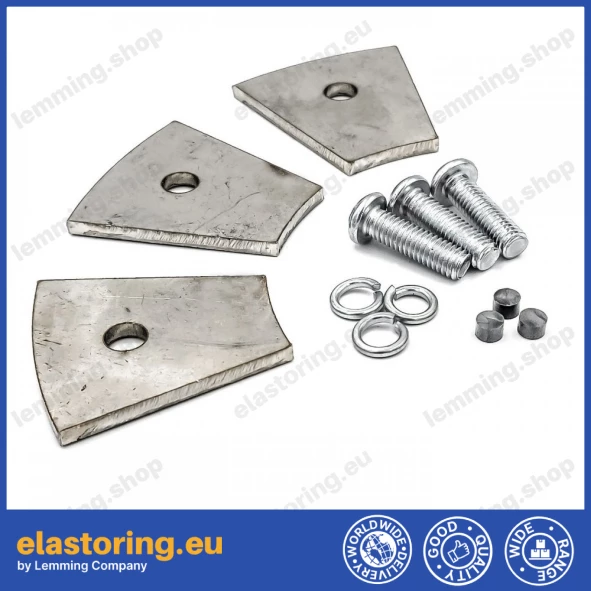

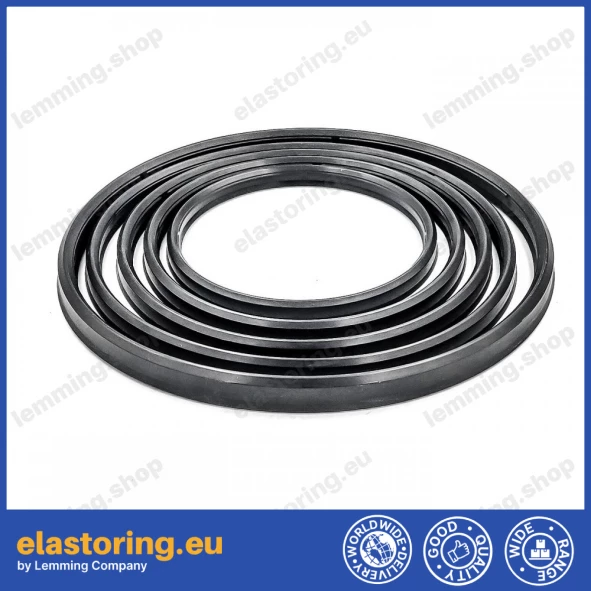

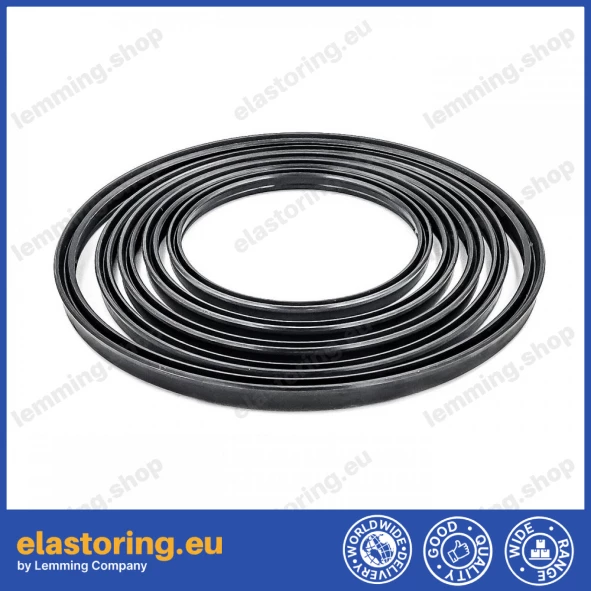

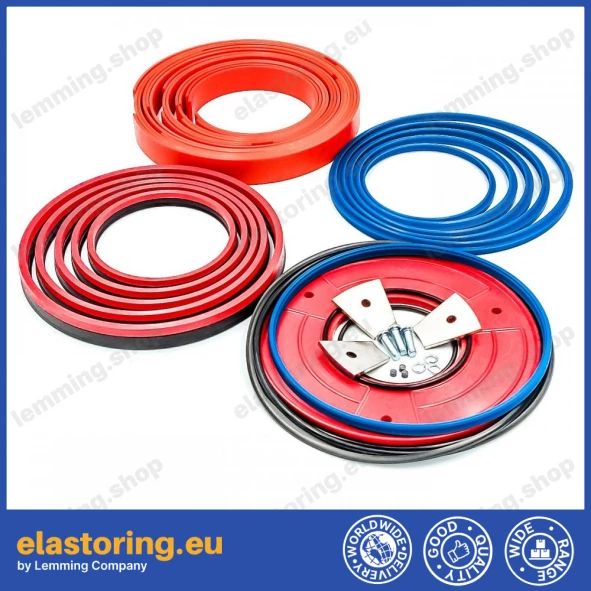

The kit includes: seals, scrapers (wipers), guide rings, o-rings, static seal, lower gasket, fasteners.

1. For Rod 98 mm:

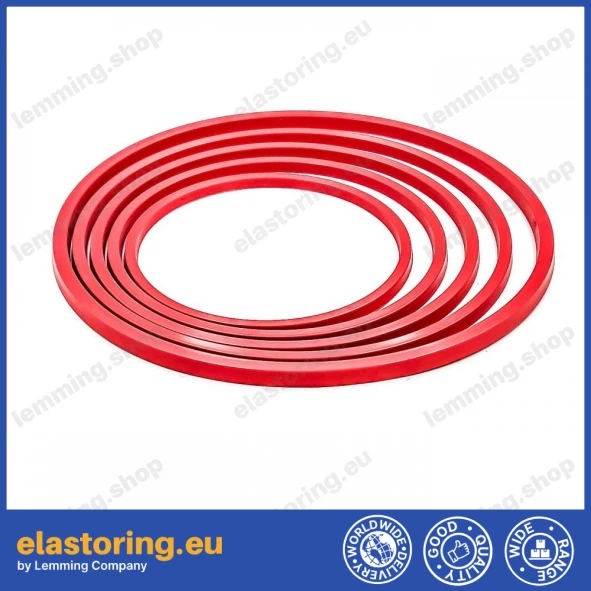

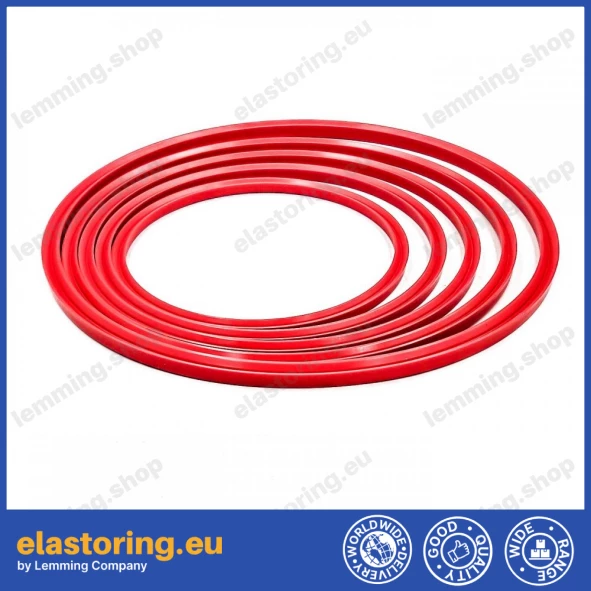

   Wiper EWM98/01 (44487) - 1pcs. (dimension 98*108*4,5/7)

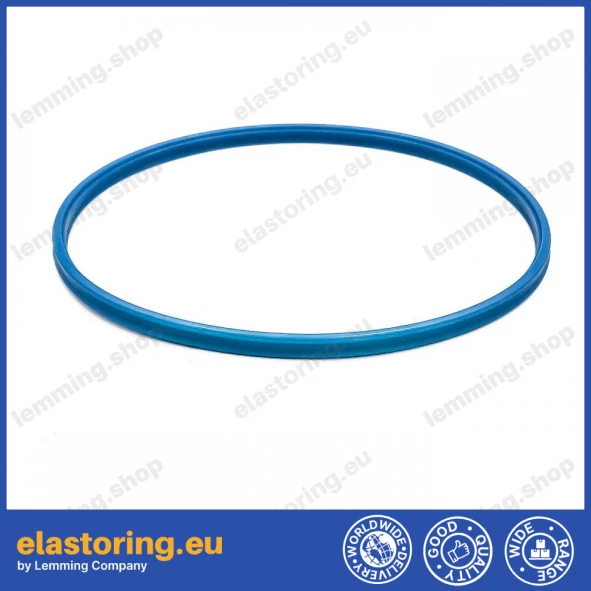

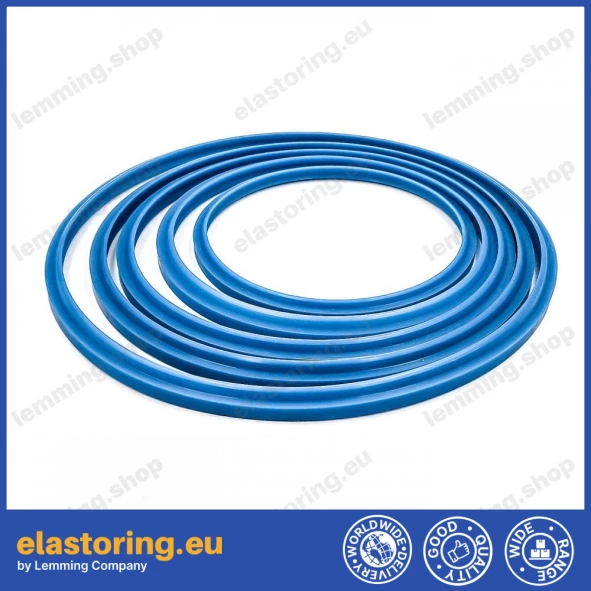

   Seal SAM98/01 (44496 + 47701) - 1pcs. (dimension 98*108*12,2)

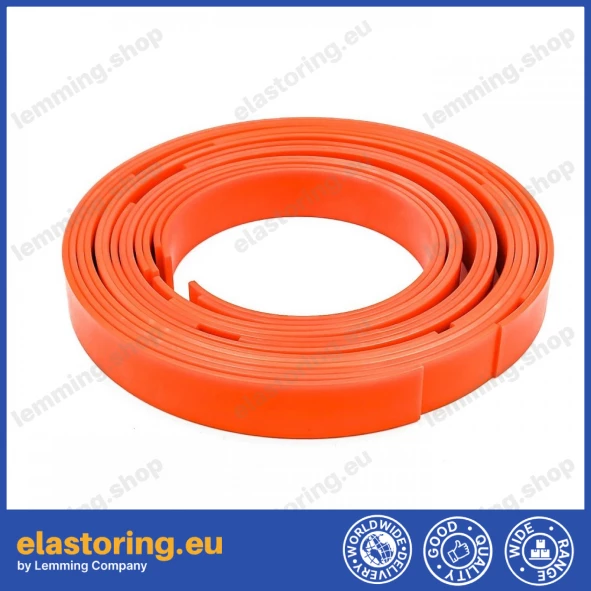

   Guide ring BRH98/04 - 2pcs.
2. For Rod 117,00 mm:
   Wiper EWM117/01 (44488) - 1pcs. (dimension 117*127*5,8/8,8)
   Seal SAM117/03 (44497 + 47702) - 1pcs. (dimension 117*127*14)
   Guide ring BRH117/04 - 2pcs.
3. For Rod 136,00 mm:
   Wiper EWM136/01 (44489) - 1pcs. (dimension 136*146*5,8/8,8)
   Seal SAM136/03 (44489 + 47703) - 1pcs. (dimension 136*146*14)
   Guide ring BRH136/04 - 2pcs.
4. For Rod 155,00 mm:
   Wiper EWM155/01 (44490) - 1pcs. (dimension 155*165*5,8/8,8)
   Seal SAM155/01 (44499 + 47704) - 1pcs. (dimension 155*165*14)
   Guide ring BRH155/04 - 2pcs.
5. For Rod 176,00 mm:
   Wiper EWM176/01 (44491) - 1pcs. (dimension 176*188*16,5)
   Seal SAM176/03 (44500 + 47751) - 1pcs. (dimension 176*186*5,8/8,8)

Usually used in the following cylinders:

• CS1700505733A101
• CS1700507233A101
• CS17005xxxxxAxxx
• CS170E506233A115
• CS170E5xxxxxAxxx
• CS170S4xxxxxAxxx
• CS170S5xxxxxAxxx

Important information.

This repair kit is universal - suitable for new and old telescopic cylinders of the KC17 series. During the installation process, extra parts that are not used in this cylinder can remain.
