Gland SHM-HGC-50x30
Gland SHM-HGC-50x30
- Code: 48007139
- In Stock: request
Updated: 24.01.2026 15:38

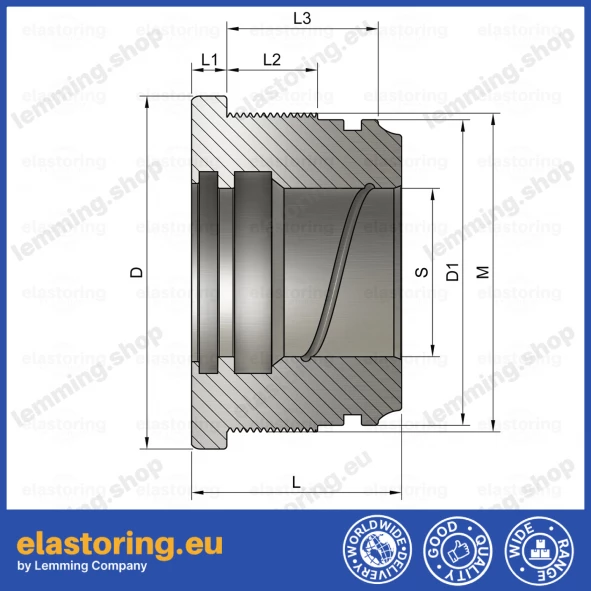

| Gland dimensions | |
| D (mm) | 60 |
| D1 (mm) | 51 |
| L (mm) | 45 |
| L1 (mm) | 8 |
| L2 (mm) | 19 |
| L3 (mm) | 32 |
| M (mm) | 55x1,5 |
| S (mm) | 30 |
- Brand: OEM
- SKU: 32621
$8.40/pcs.
5 pcs. or more $7.99/pcs.
10 pcs. or more $7.18/pcs.
Description

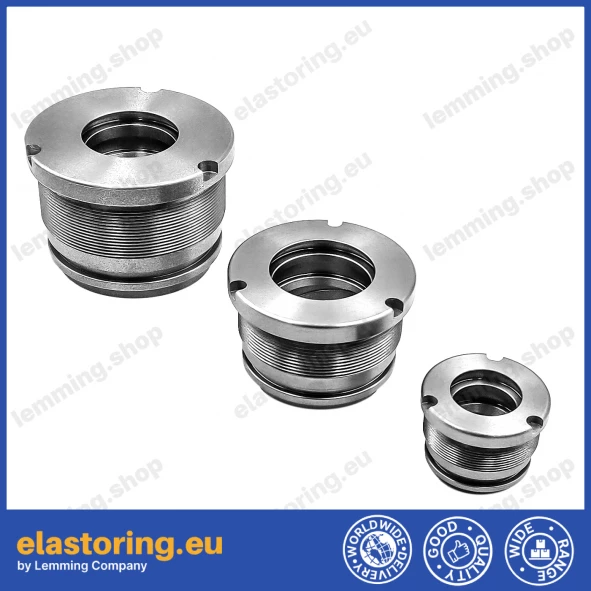

The SHM HGC-50x30 gland with external thread M55x1.5, manufactured by SEHEM (Turkey), is designed for hydraulic cylinders with a 30 mm piston rod and a 50 mm cylinder tube. Made of cast iron, it is suitable for systems operating under low to medium loads. The M55x1.5 thread ensures easy installation in the cylinder head.
Technical specifications:
-
Type: SHM HGC-50x30
-
Piston rod diameter: 30 mm
-
Cylinder tube diameter: 50 mm
-
External thread: M55x1.5
-
Material: cast iron
-
Manufacturer: SEHEM (Turkey)
-
Application: hydraulic cylinders
-
Load range: low and medium
