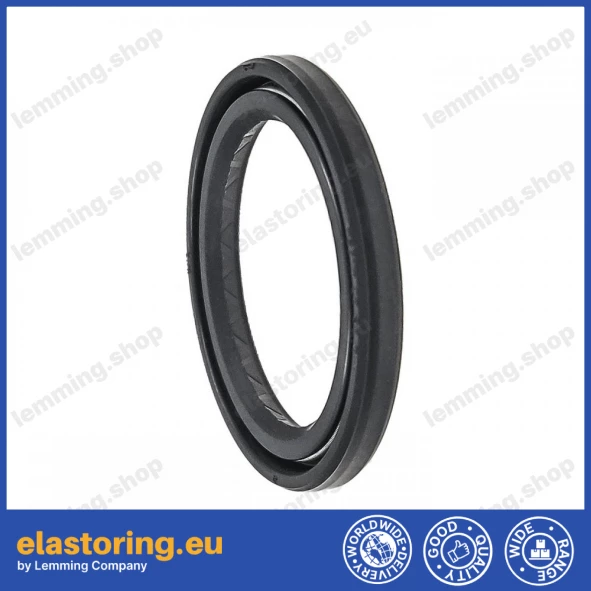

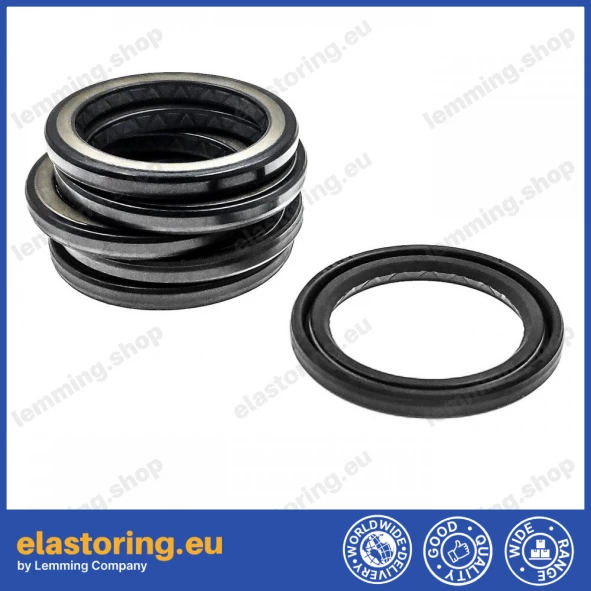

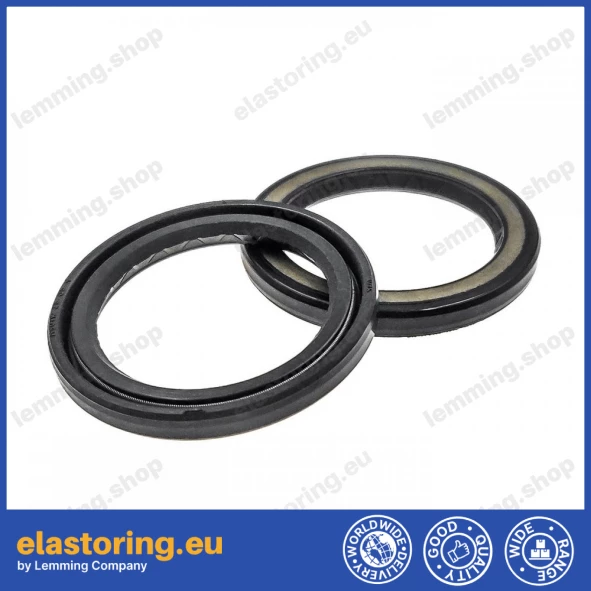

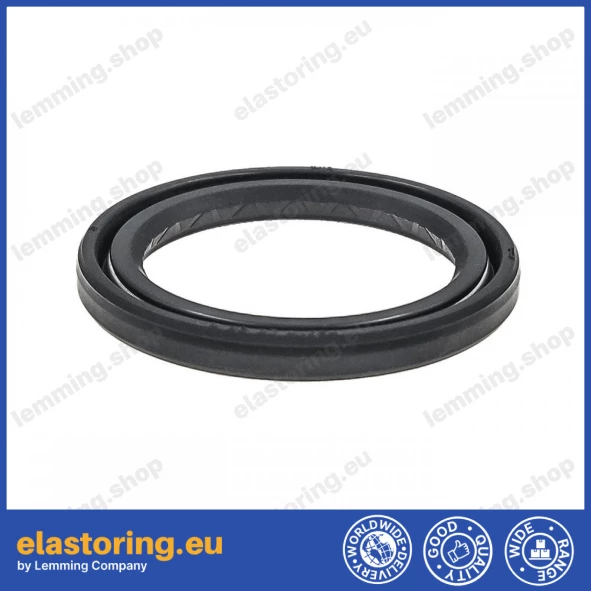

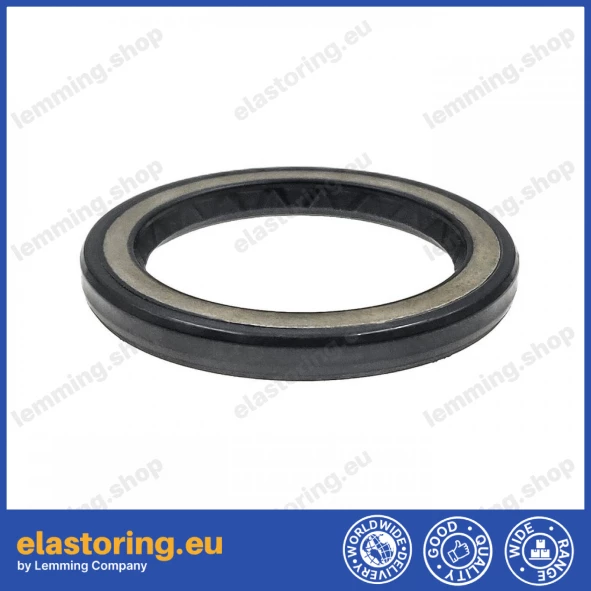

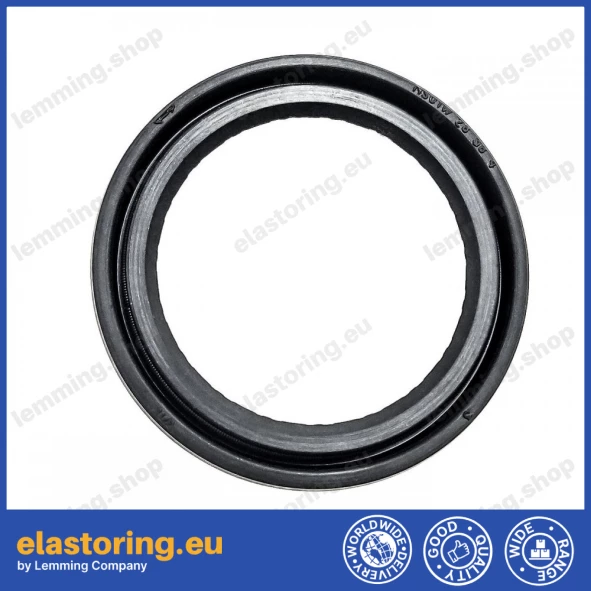

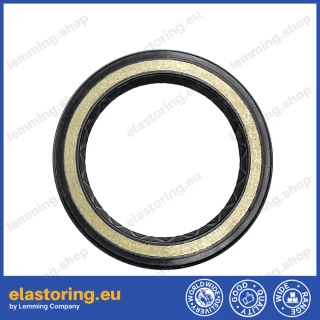

High pressure oil seal 28x38x4 NS01W NBR

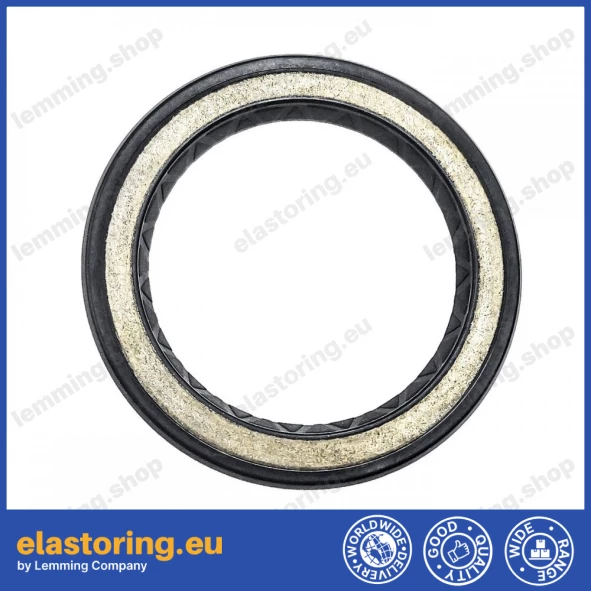

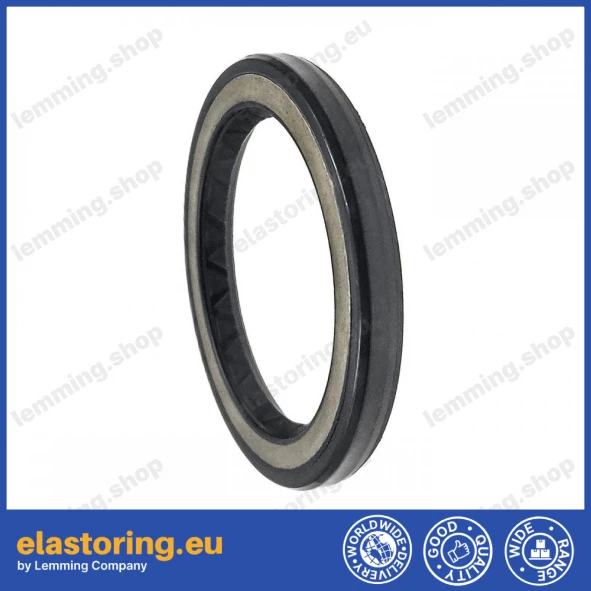

The High-Pressure Shaft Seal 28x38x4 NS01W NBR is designed for use in hydraulic motors and hydrokinetic drive systems. Its construction features an open metal insert on the front side, ensuring a stable contact surface and protecting against deformation under pressure. Made of nitrile rubber (NBR), resistant to oils and greases.

Dimensions:

• 28 x 38 x 4 mm (d1 x D x b)

• 1.102" x 1.496" x 0.157"

Technical details:

• Manufacturer: Wintek (Taiwan)

• Type: NS01W NBR (compatible with BAHD)

• Material: NBR (nitrile rubber)

• Max working pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s

Applications:

• Shaft sealing in hydraulic motors

• Hydrokinetic drive systems
