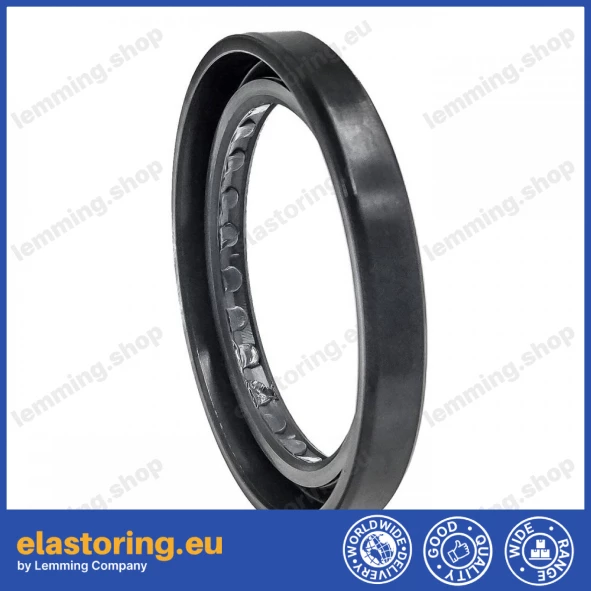

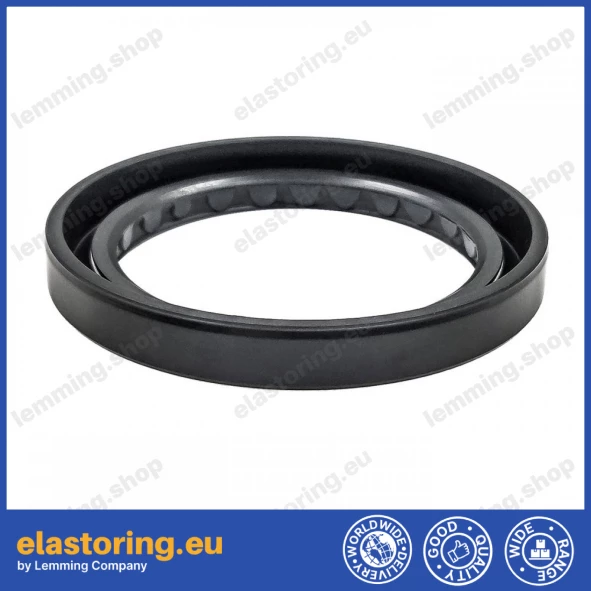

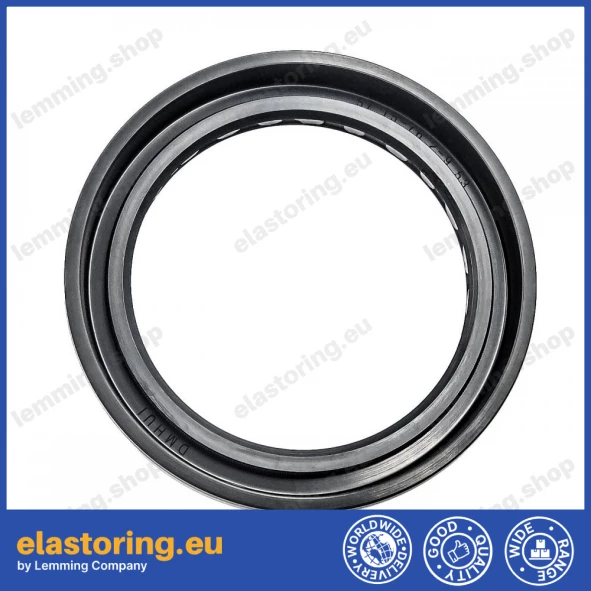

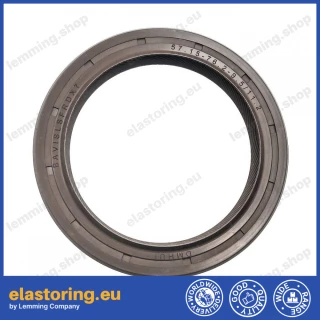

High pressure oil seal 57,15x76,2x9,53 BAKHDSN NBR

The high-pressure simmering 57.15x76.12x9.53 BAKHDSN NBR (code: 1904033) is a specialised sealing element designed for use on shafts in hydraulic systems and hydrokinetic drives, where high operating pressure is required.

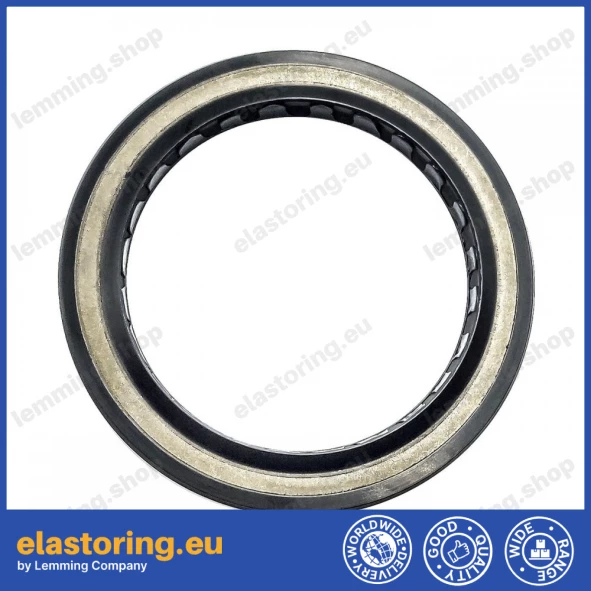

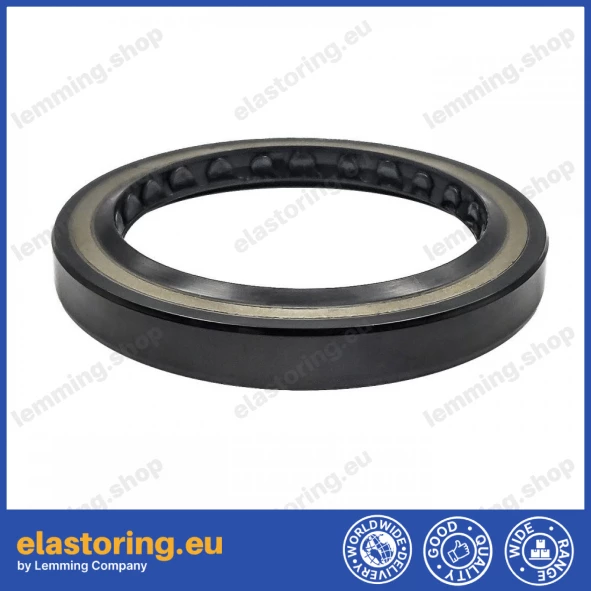

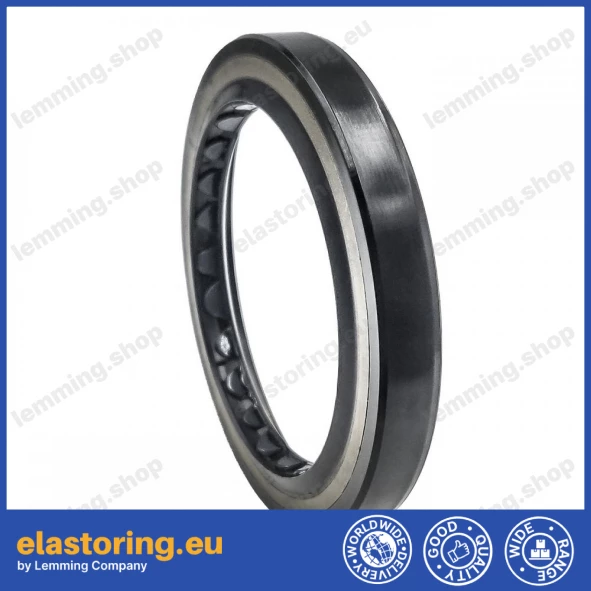

It features an open metal insert on the front side that provides a stable contact surface and prevents deformation under load.
The seal is made of nitrile rubber (NBR), resistant to hydraulic oils and lubricants.

Technical specifications:
• Working pressure: up to 100 bar (max 150 bar)
• Linear speed: up to 2 m/s
• Operating temperature: –30 °C to +105 °C
• Material: NBR (nitrile rubber)
• Inner diameter: 57.15 mm (≈ 2.25 in)
• Outer diameter: 76.12 mm (≈ 3.00 in)
• Height: 9.53 mm (≈ 0.38 in)
Seals marked BAHD, BAHDSN and BAKHDSN are interchangeable and can be used in the same applications.

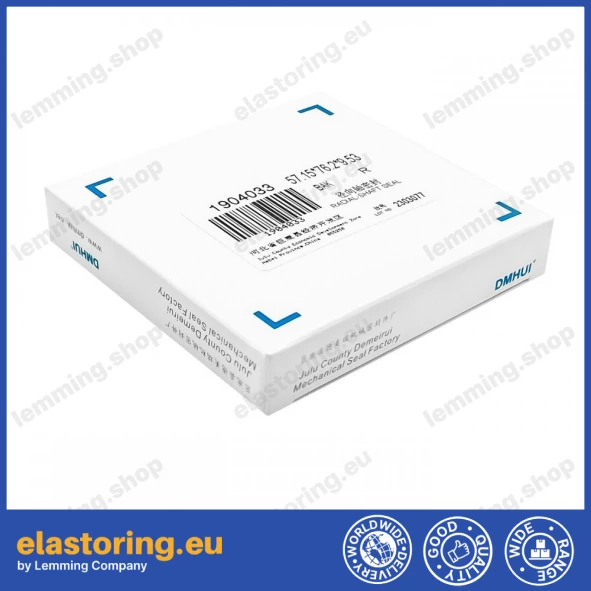

Manufacturer: DMHUI
