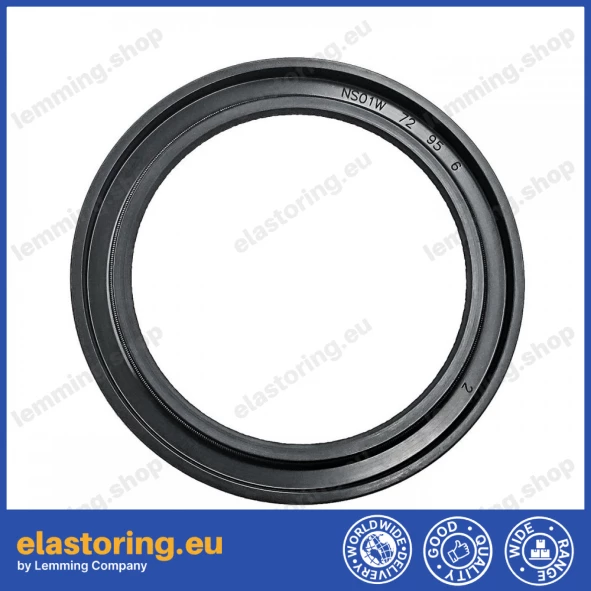

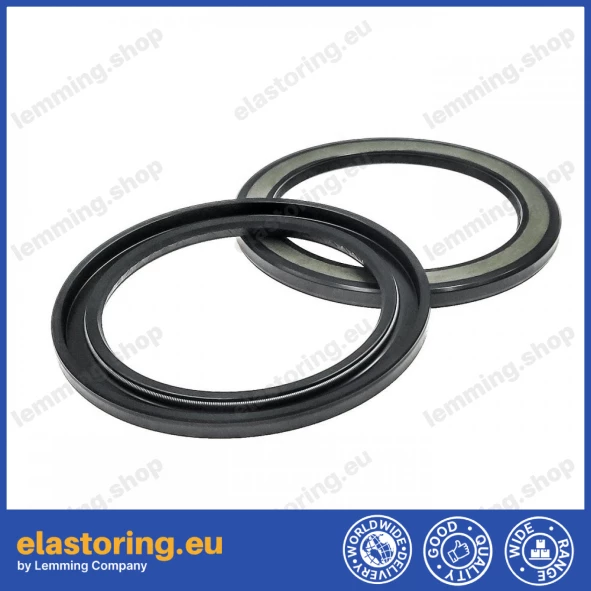

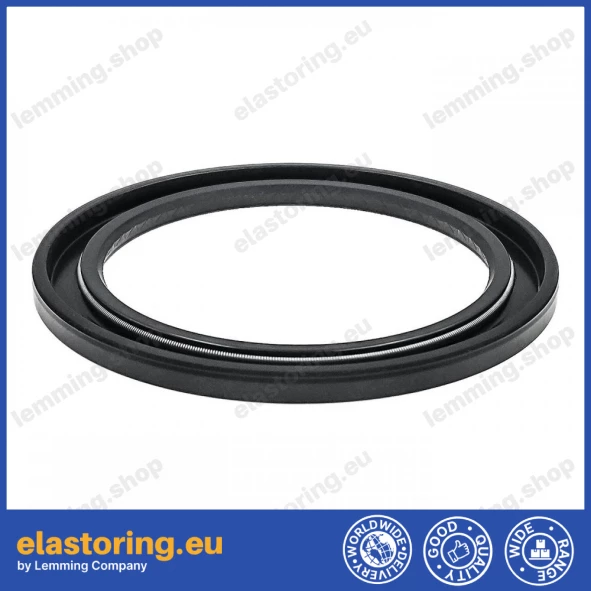

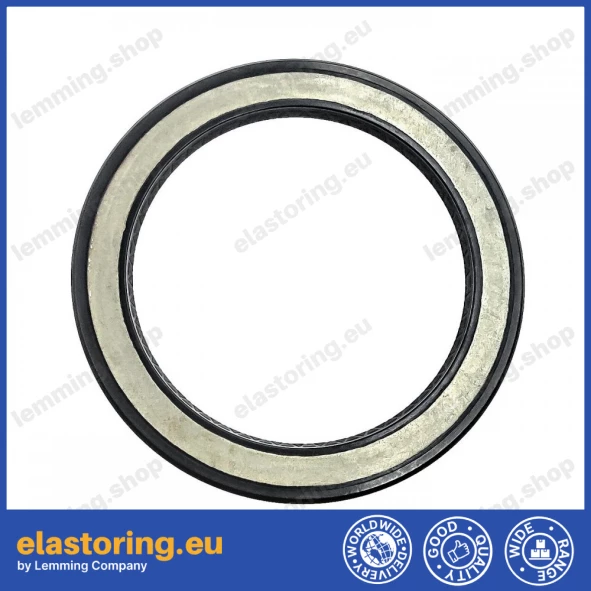

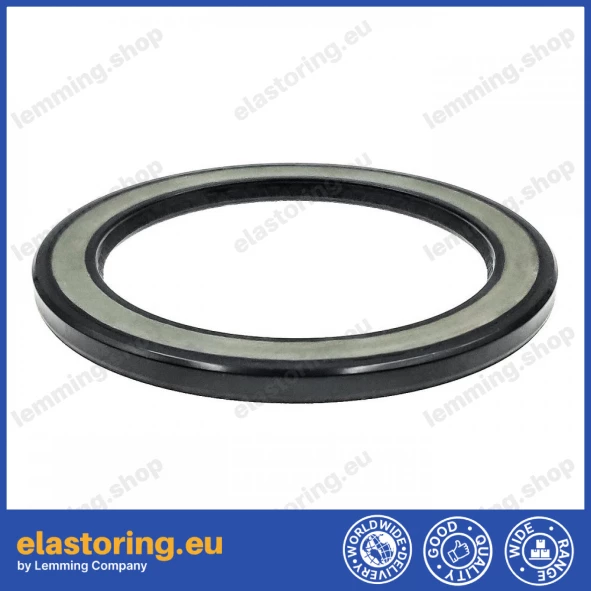

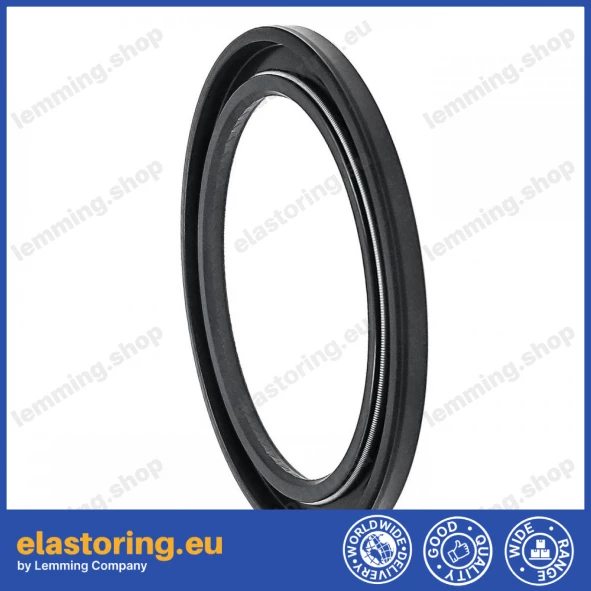

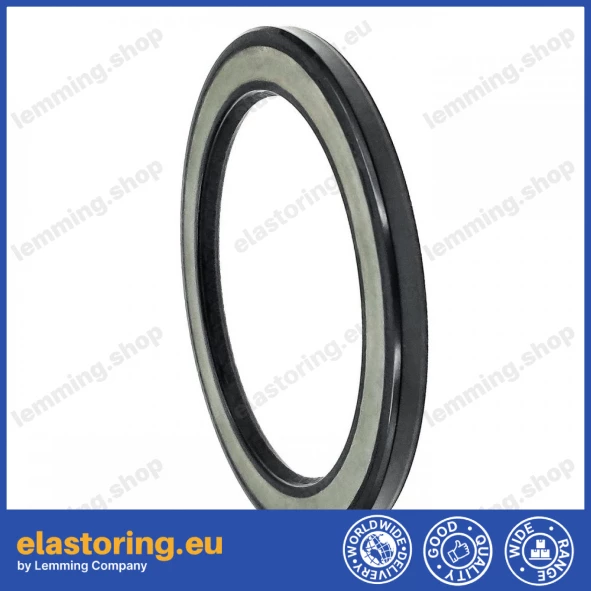

High pressure oil seal 72x95x6 BAHD NBR TTO

The high-pressure oil seal 72x95x6 BAHD NBR (code: 48001339, SKU: 21333) is a specialised sealing element used on shafts in hydraulic systems and hydrokinetic drives where high operating pressure is required. The design with an open metal insert on the front side provides a stable contact surface and prevents deformation under pressure. Made of nitrile rubber (NBR), it ensures compatibility with hydraulic oils and lubricants.

Technical specifications:
• Working pressure: up to 100 bar (max 150 bar)
• Linear speed: up to 2 m/s
• Operating temperature: –30 °C to +105 °C
• Material: NBR (nitrile rubber)
• Dimensions: 72x95x6 mm (≈ 2.83x3.74x0.24 in)

Seals marked BAHD, BAHDSN and BAKHDSN are interchangeable and can be used in the same applications.
