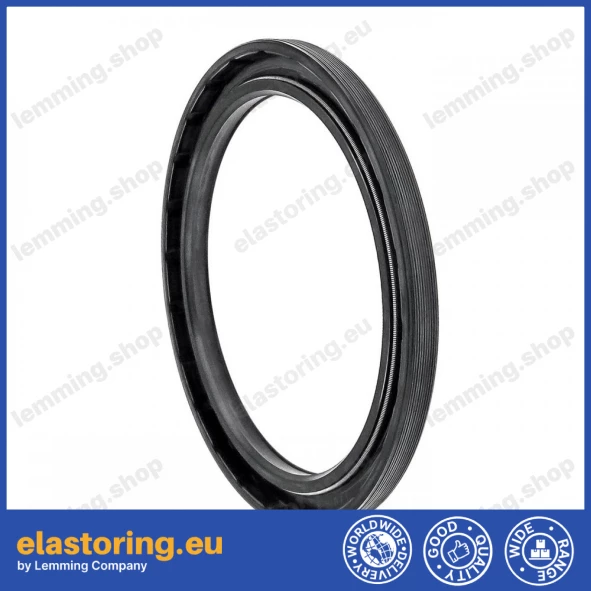

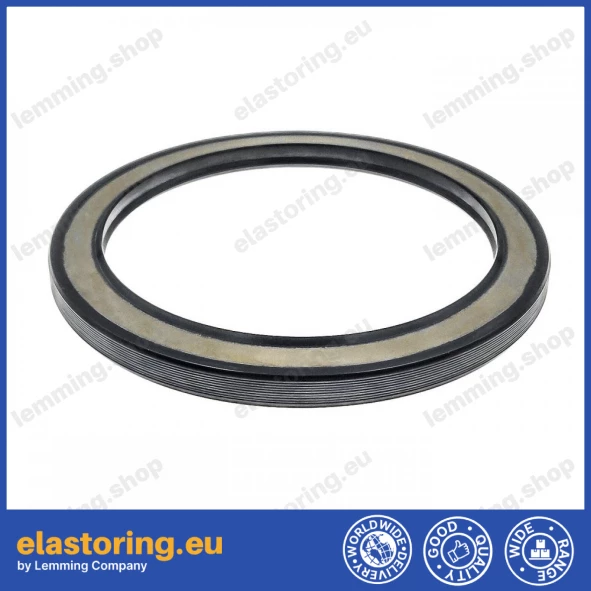

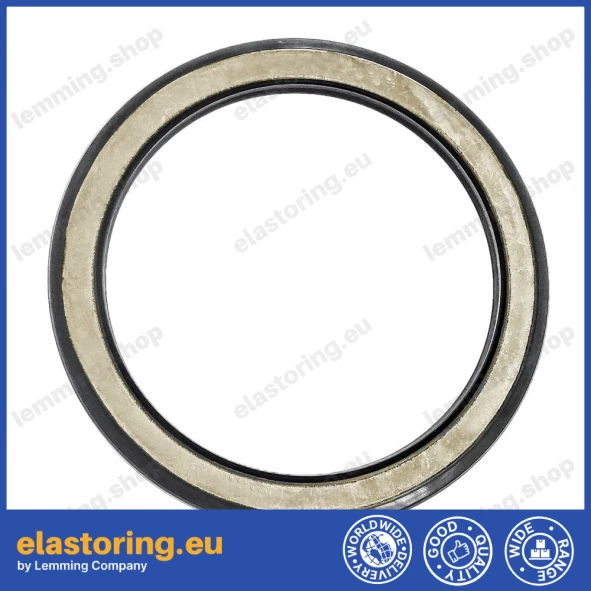

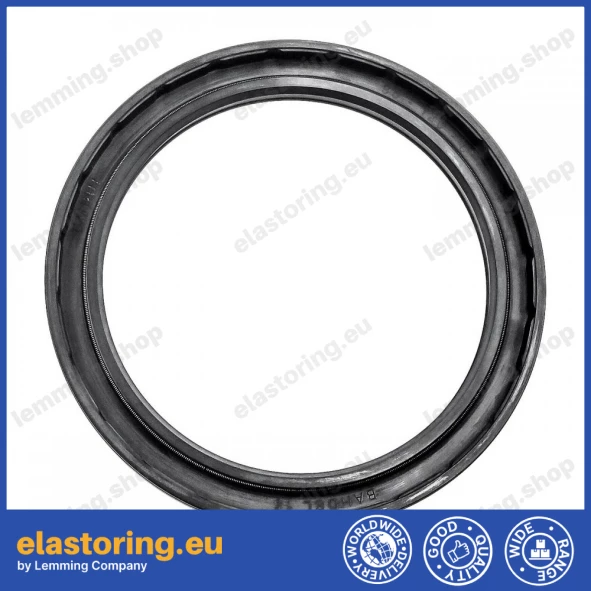

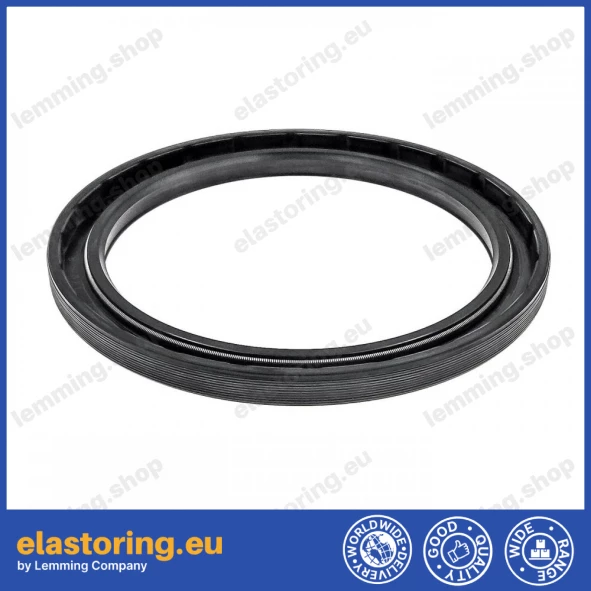

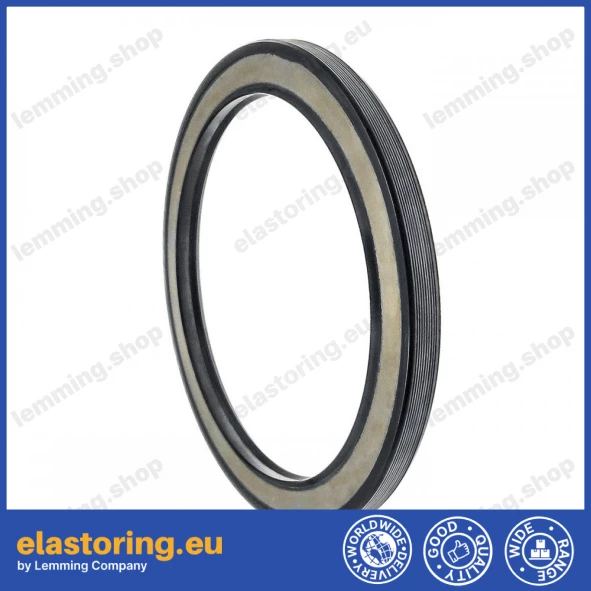

High pressure oil seal 95x120x8 BAHDSL15 NBR [Poclain MG21]

The high-pressure shaft seal 95x120x8 BAHDSL15 NBR [Poclain MG21] is used in hydraulic motors, especially in hydrokinetic drives.
It features a front-side open metal insert that provides dimensional stability and protects against pressure deformation.
Made from oil- and fuel-resistant nitrile rubber (NBR). Interchangeable with BAHD, BAHDSN, and BAKHDSN types.

Technical data:

• Inside diameter: 95 mm (3.74 inches)

• Outside diameter: 120 mm (4.72 inches)

• Seal height: 8 mm (0.31 inches)

• Size in inches: 3.74×4.72×0.31

• Material: NBR

• Type: BAHDSL15

• Compatibility: Poclain MG21

• Max operating pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s
