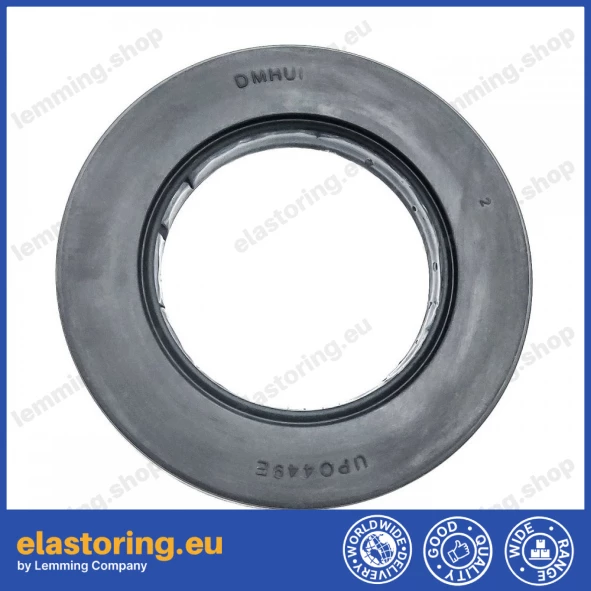

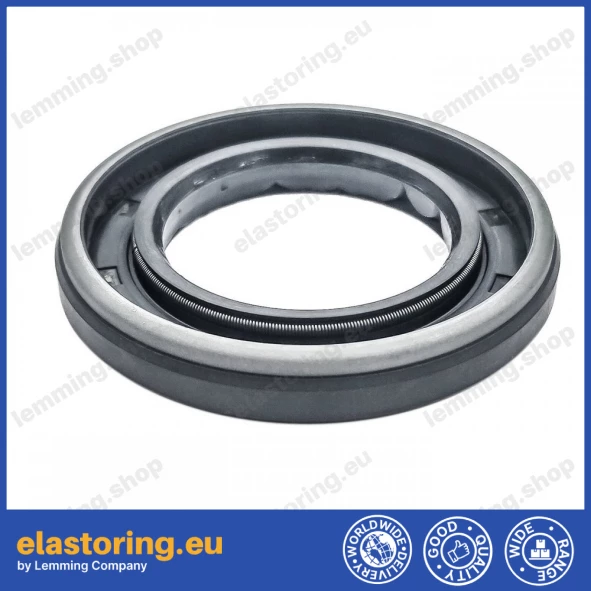

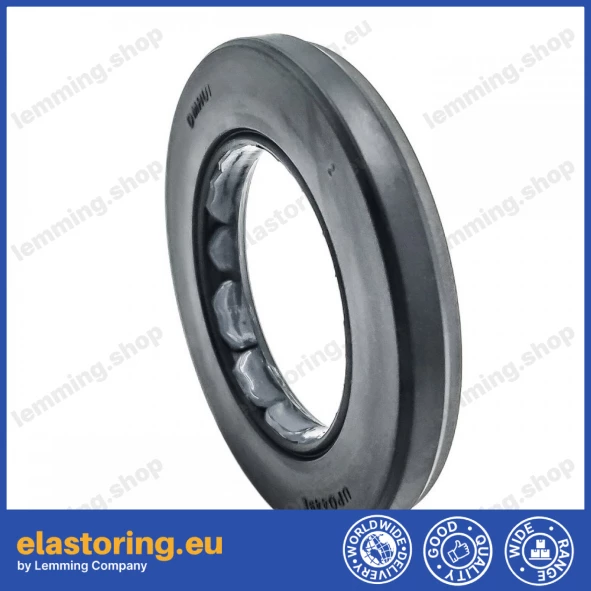

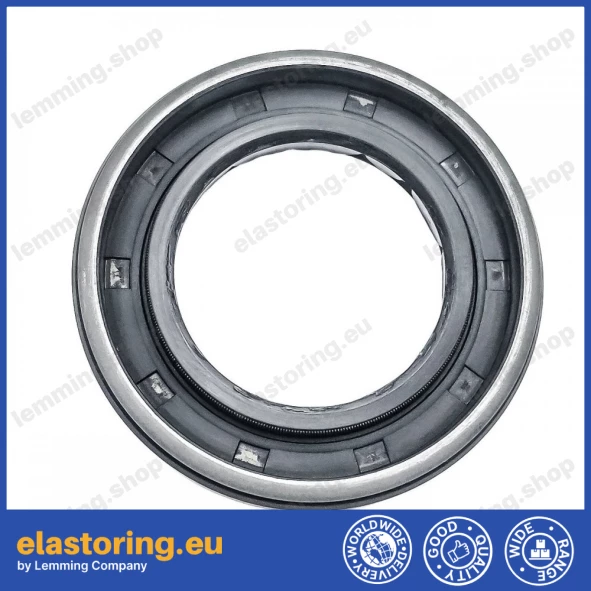

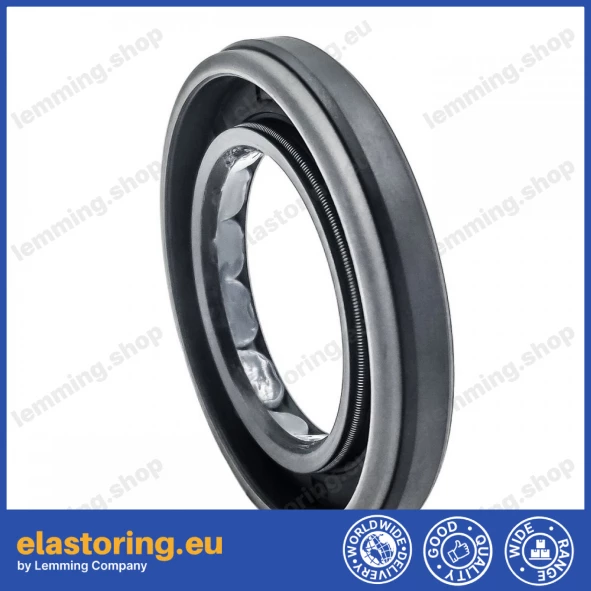

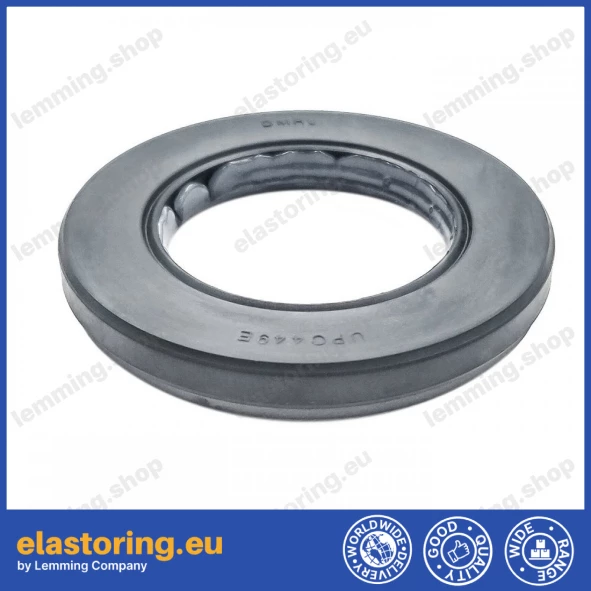

Pressure oil seal 34,925x57,15x8,85 UP0449E NBR

Pressure oil seal 34.925×57.15×8.85 made of NBR rubber.

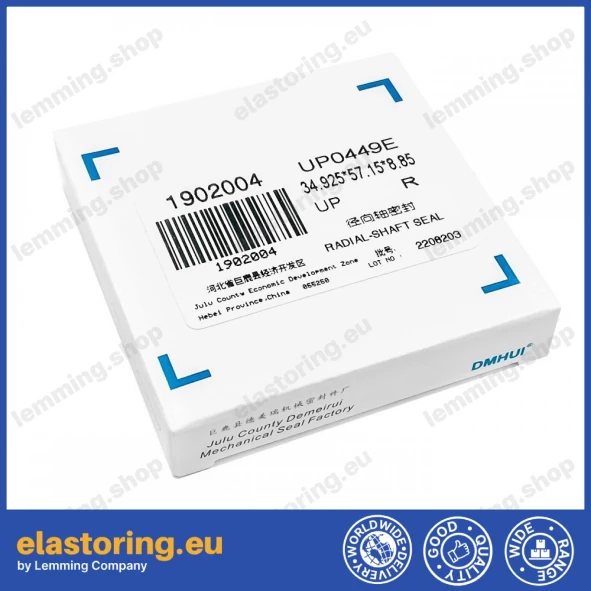

Model DMHUI UP0449E (code 1902004) is a replacement for the original seal marked UP0449E.
Used in hydraulic pumps and motors, including SAUER-Danfoss 90R042 / 90R055 units.

Technical data:

• Inner diameter (d): 34.925 mm (1.375 in)

• Outer diameter (D): 57.15 mm (2.25 in)

• Height (H): 8.85 mm (0.35 in)

• Size (inches): 1.375 × 2.25 × 0.35 in

• Material: NBR (nitrile rubber)

• Seal type: UP – high-pressure rotary shaft seal

• Applications: hydraulic pumps, motors, gearboxes, industrial machinery

• Temperature range: –40 °C to +100 °C

• Maximum pressure: up to 10 bar (depending on speed, temperature, medium and seal support)
