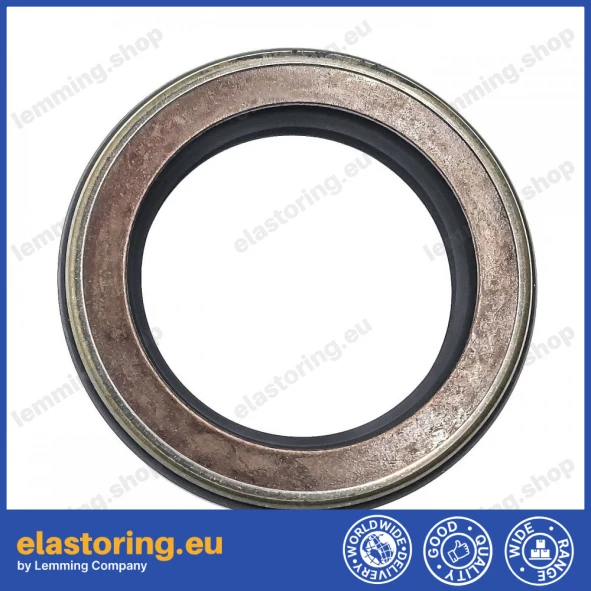

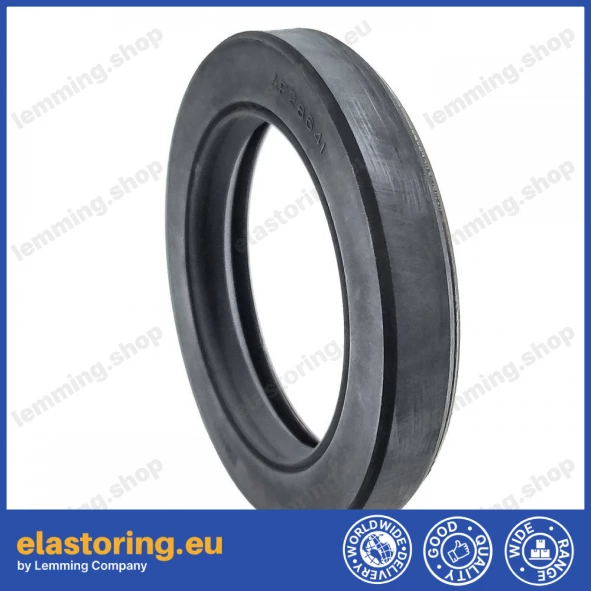

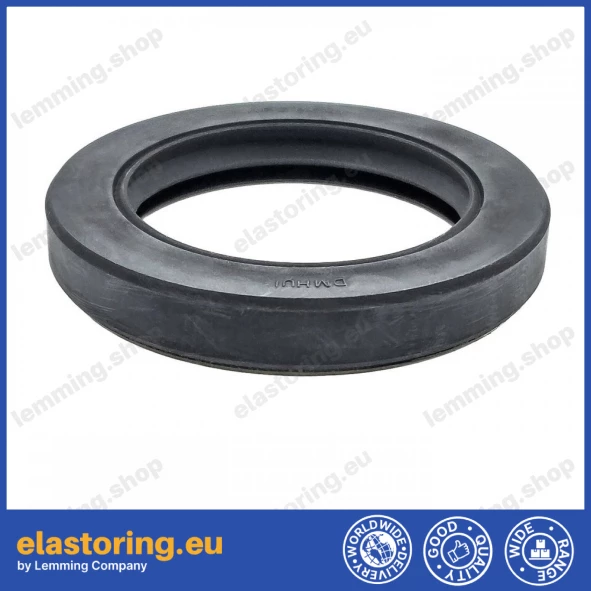

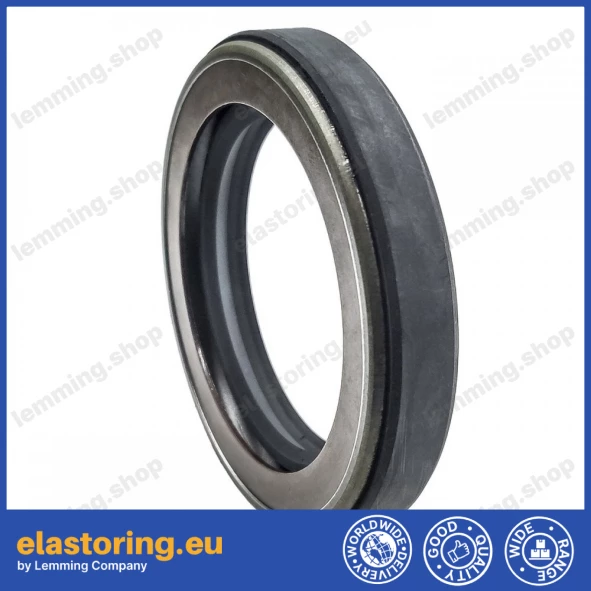

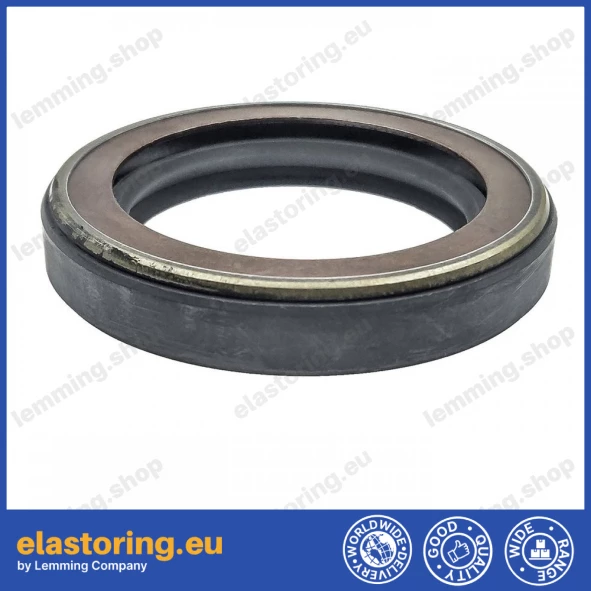

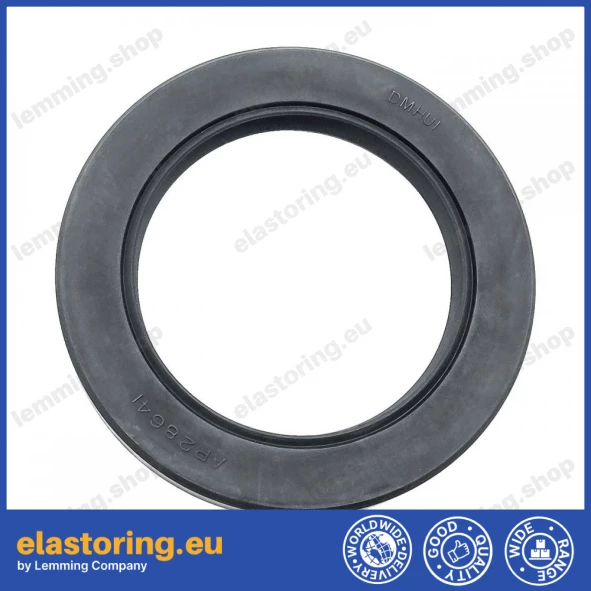

Pressure oil seal 50x72x12 AP2864I NBR

Pressure oil seal type AP2864I made of NBR rubber.

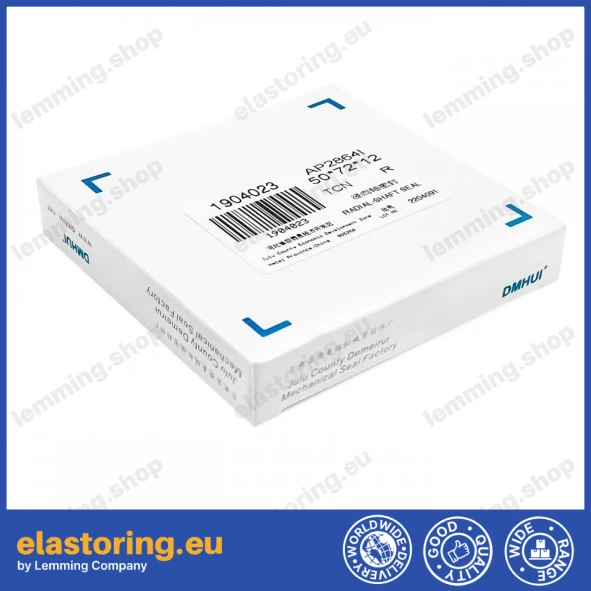

Model DMHUI 1904023 is a replacement for the original NOK AP2864I seal, used in hydraulic pumps and motors operating under high pressure conditions.
Based on the TCN structure, it provides reliable sealing under dynamic shaft operation.

Technical data:

• Inner diameter (d): 50 mm (1.97 in)

• Outer diameter (D): 72 mm (2.83 in)

• Height (H): 12 mm (0.47 in)

• Material: NBR (nitrile rubber)

• Type: AP2864I – high-pressure rotary shaft seal

• Applications: hydraulic pumps, motors, gearboxes, construction and industrial machinery

• Temperature range: –40 °C to +100 °C

• Rotational speed: up to 10 m/s

• Maximum pressure: up to 10 bar (depending on speed, temperature, medium, and seal support)
