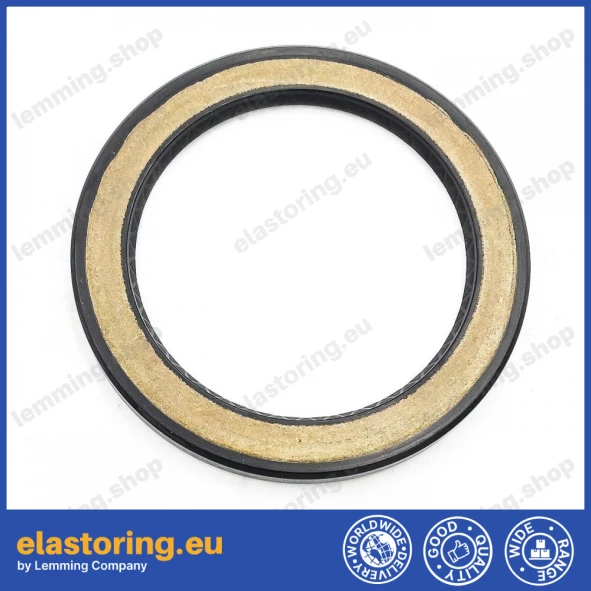

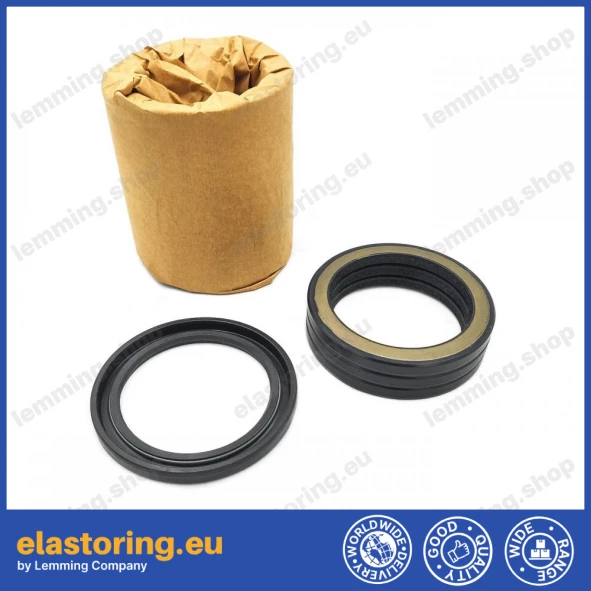

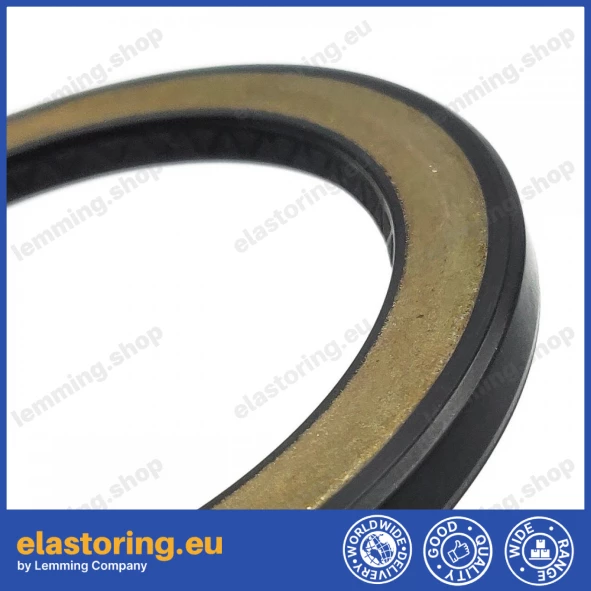

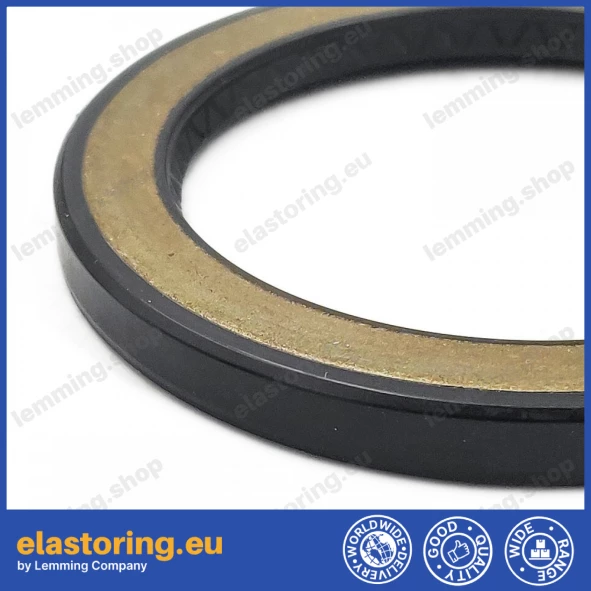

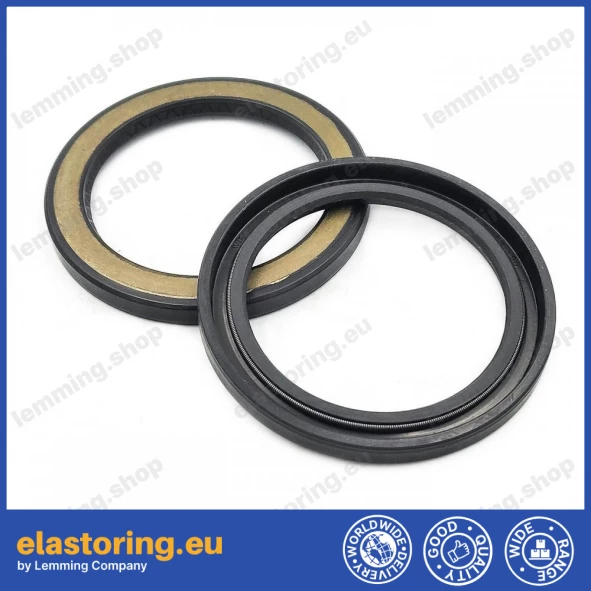

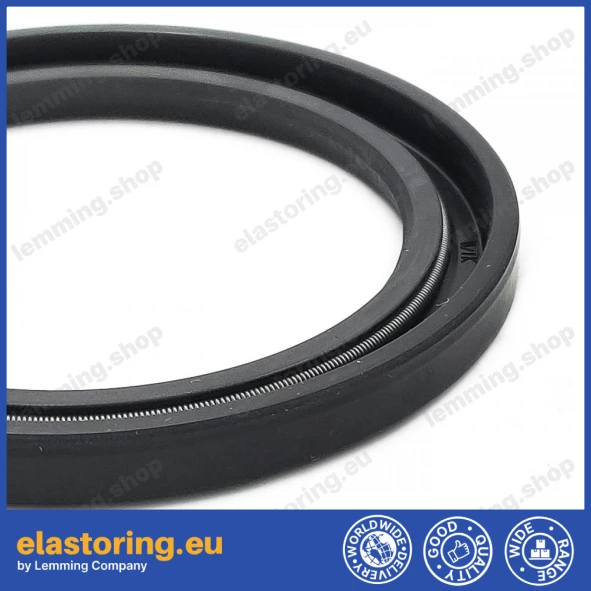

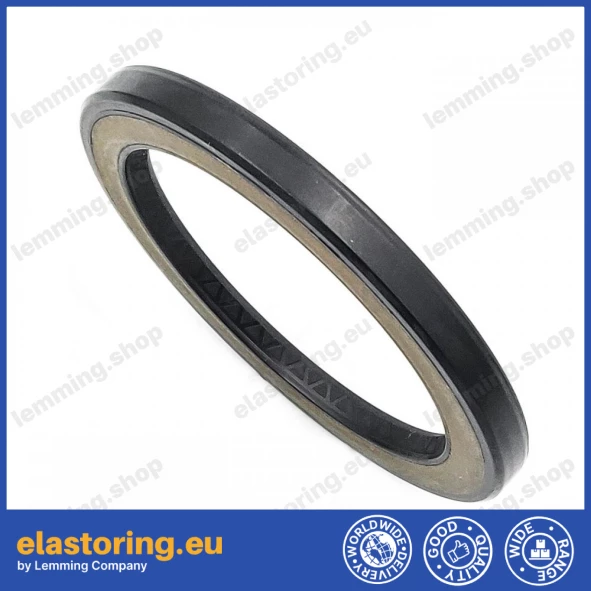

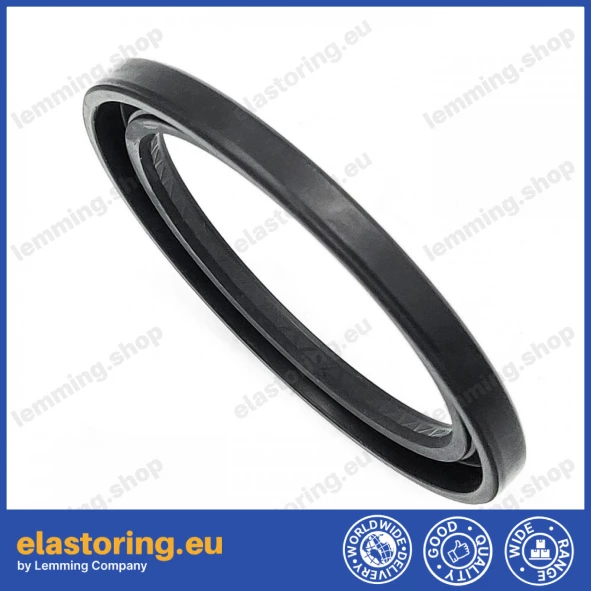

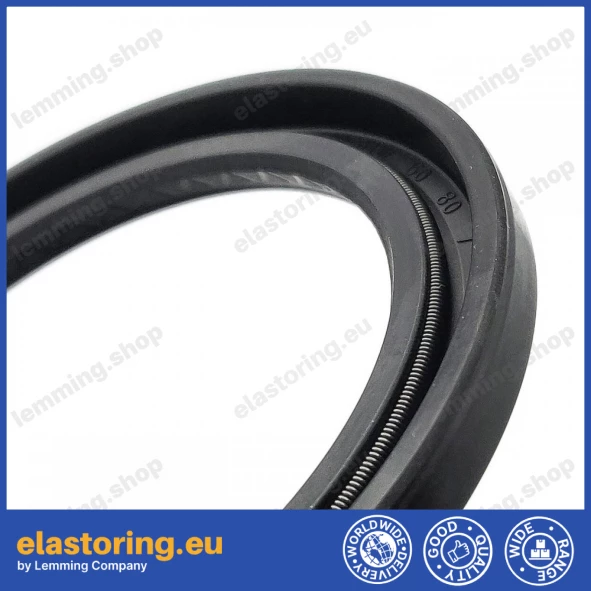

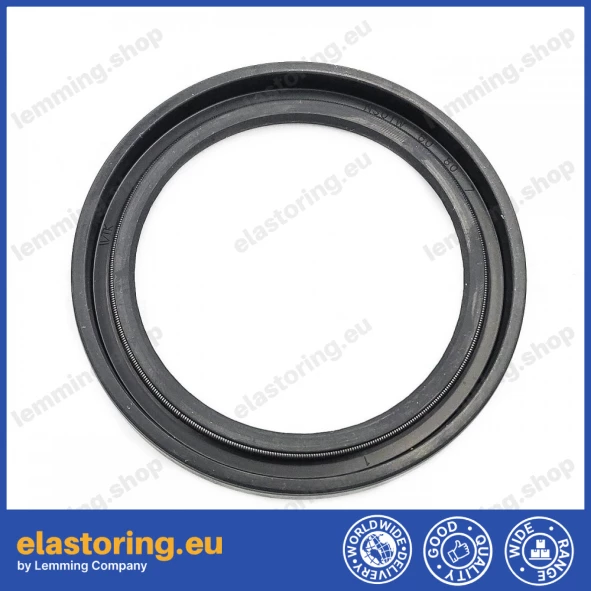

High pressure oil seal 60x80x7 NS01W NBR

High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
High pressure oil seal 60x80x7 NS01W NBR
  • Code: WT06333
  • In Stock: 713 pcs.
Updated: 31.07.2025 12:25
Rotary seal dimension
Shaft Diameter (mm) 60
Housing diameter (mm) 80
Width 1 7
Details
Seal type NS01W
Material type NBR
22.26€/pcs.
5 pcs. or more 4.69€/pcs.
10 pcs. or more 4.22€/pcs.

Description

The high-pressure shaft seal 60x80x7 NS01W (BAHD) NBR is designed for use in hydraulic motors and hydrokinetic drive systems. Its open-face metal insert ensures dimensional stability under pressure. Made from oil-resistant nitrile rubber (NBR). NS01W matches BAHD specifications and is interchangeable with BAHDSN and BAKHDSN.

Technical data:

  • Inside diameter: 60 mm (2.36 inches)

  • Outside diameter: 80 mm (3.15 inches)

  • Seal height: 7 mm (0.28 inches)

  • Material: NBR

  • Max operating pressure: 150 bar

  • Average working pressure: 100 bar

  • Max linear speed: 2 m/s
