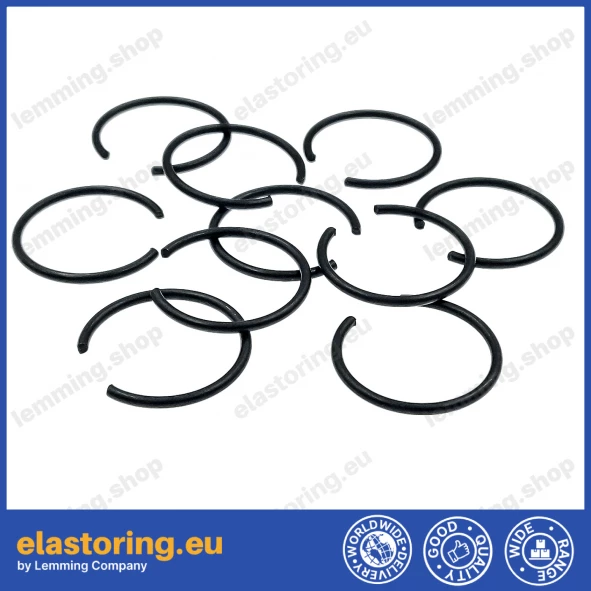

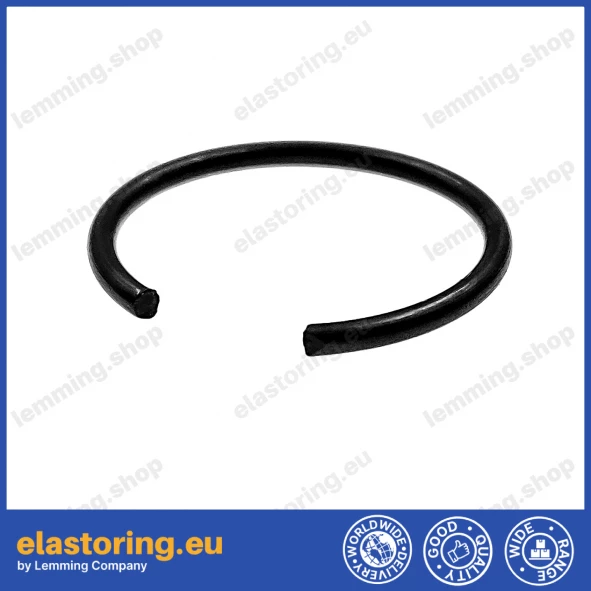

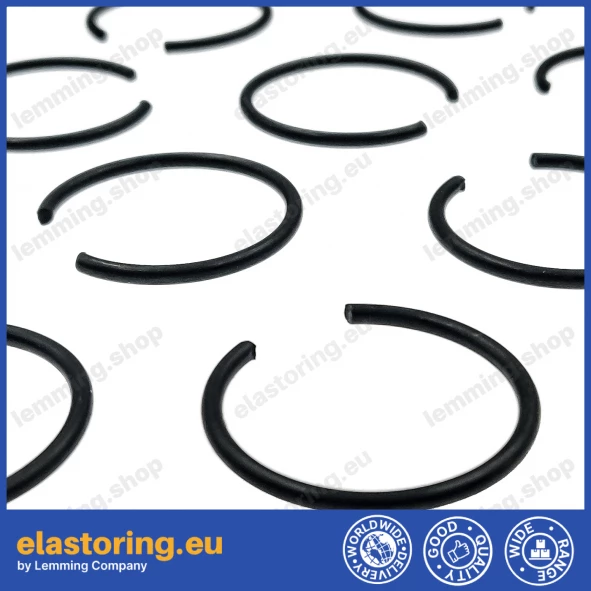

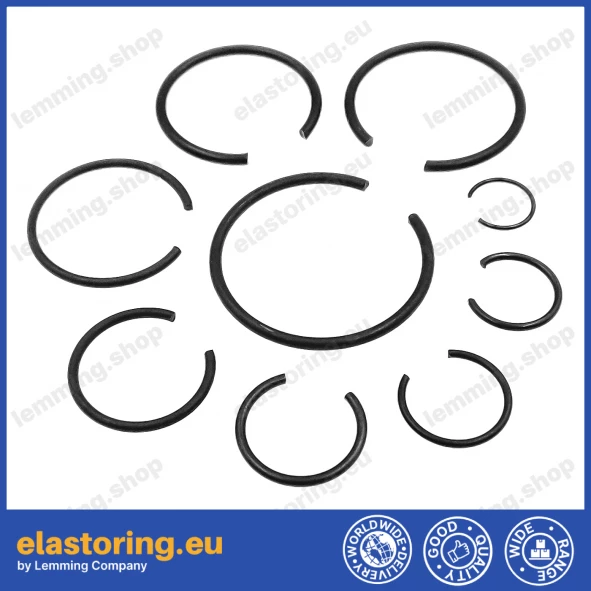

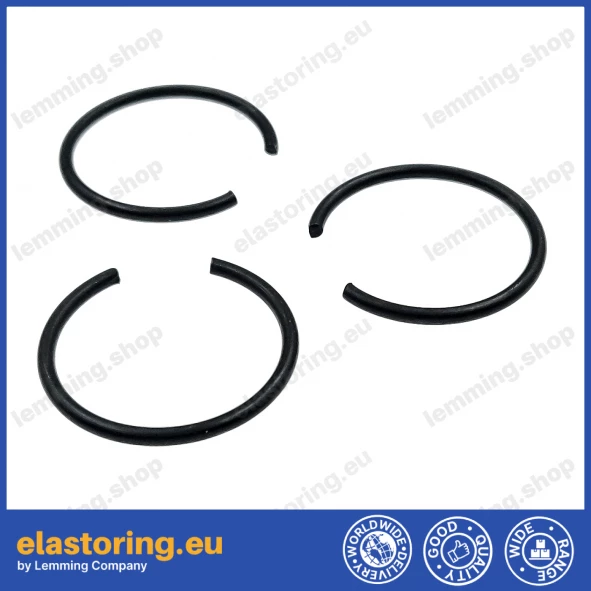

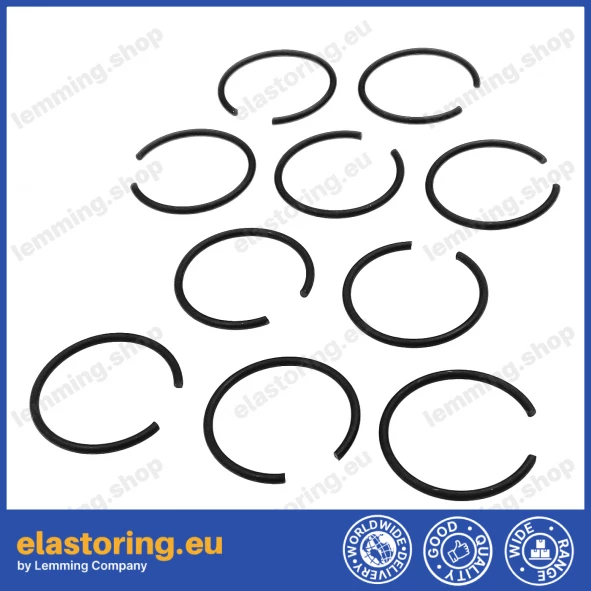

Retaining ring 20 DIN7993B

Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
Retaining ring 20 DIN7993B
  • Code: 48004022
  • In Stock: 528 pcs.
Updated: 17.07.2025 12:25

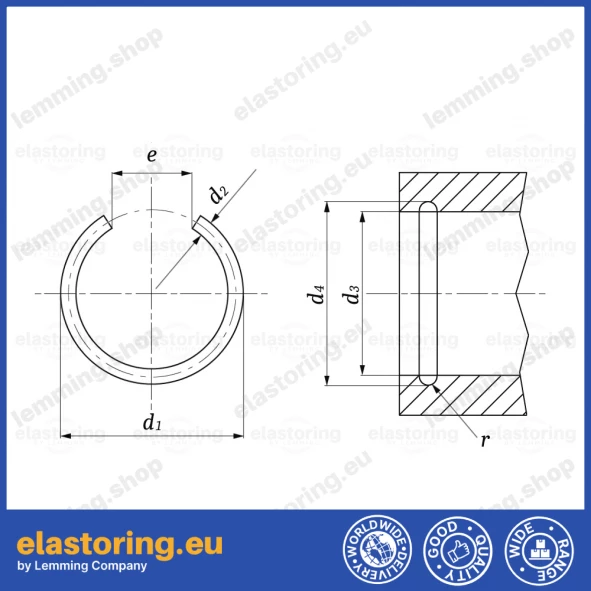

Retaining rings dimensions DIN7993B
Outside diameter d1 (mm) 22,3
Cross section d2 (mm) 2
Hole diameter d3 (mm) 20
Groove diameter d4 (mm) 22
Opening range e (mm) 10
Minimum groove cros section radius r (mm) 1,1
Details
Material type Stal
Norm design DIN7993B
  • Brand: OEM
  • SKU: 32191
1.88€/pcs.
5 pcs. or more 0.47€/pcs.
10 pcs. or more 0.24€/pcs.
30 pcs. or more 0.11€/pcs.

Description

**Technical Specification:** - Product Name: 20 DIN7993B Snap Ring - Standard: DIN 7993B - Diameter: 20 mm - Material: High-strength Steel - Application: Securing bearings, bushings, sealing rings and other components embedded in holes **Product Description:** The 20 DIN7993B Snap Ring is an essential element in many mechanisms. It is used to secure various components from falling out or moving from the holes in which they are mounted. This is a universally applicable product that finds its place in many industries. **Application:** The 20 DIN7993B Snap Ring is often used for securing bearings, bushings, sealing rings and other components embedded in holes. Thanks to its construction, it ensures stability and safety of assembly. **Material:** The 20 DIN7993B Snap Ring is made of high-strength steel, which guarantees its durability and resistance to mechanical loads.
