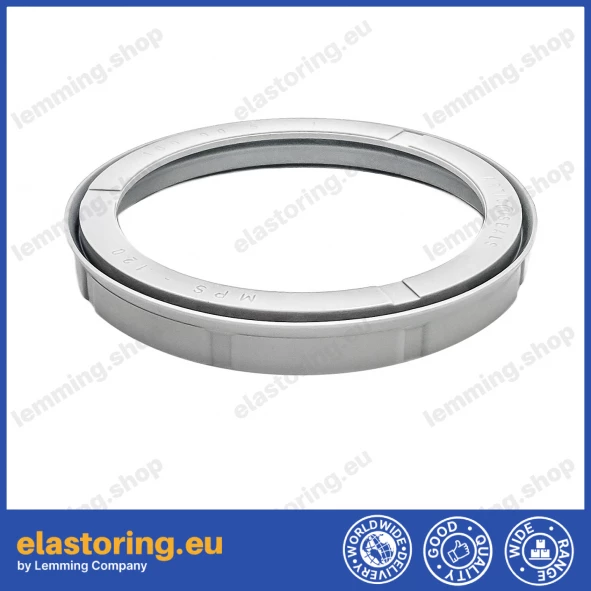

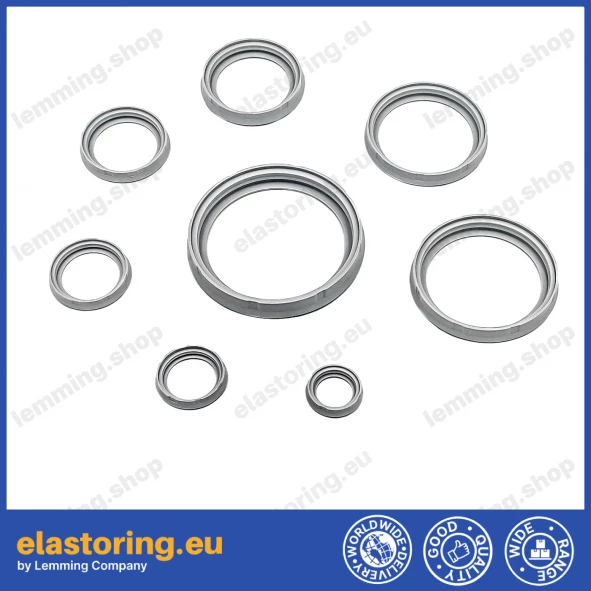

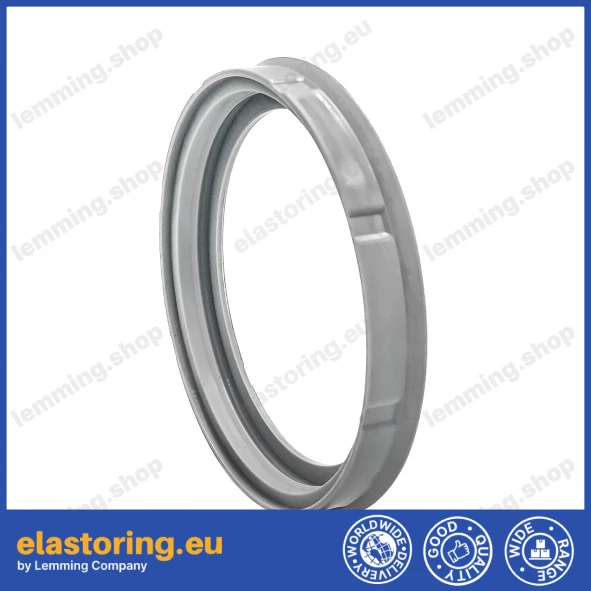

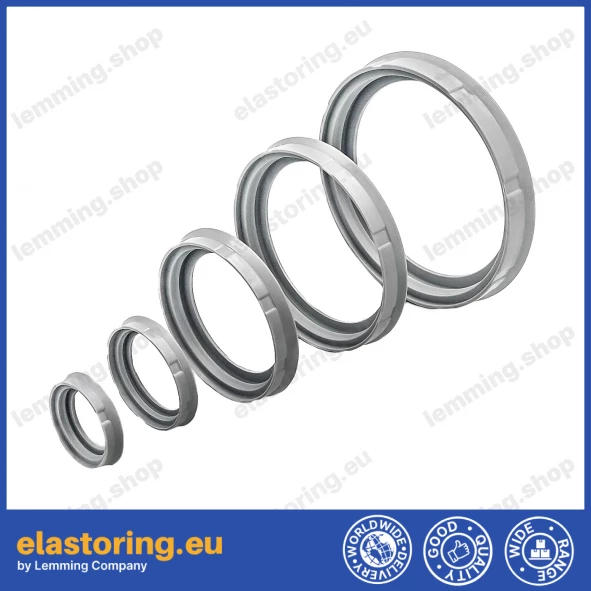

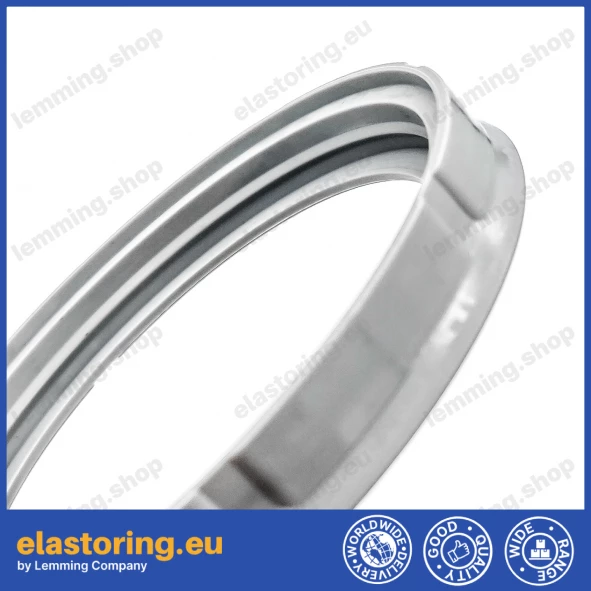

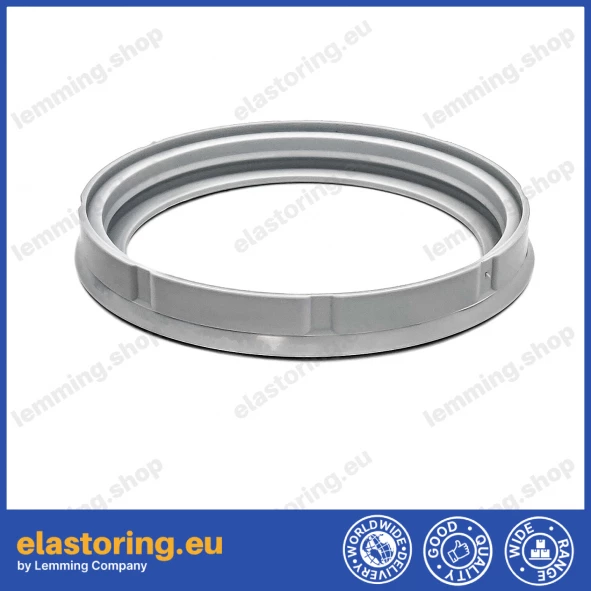

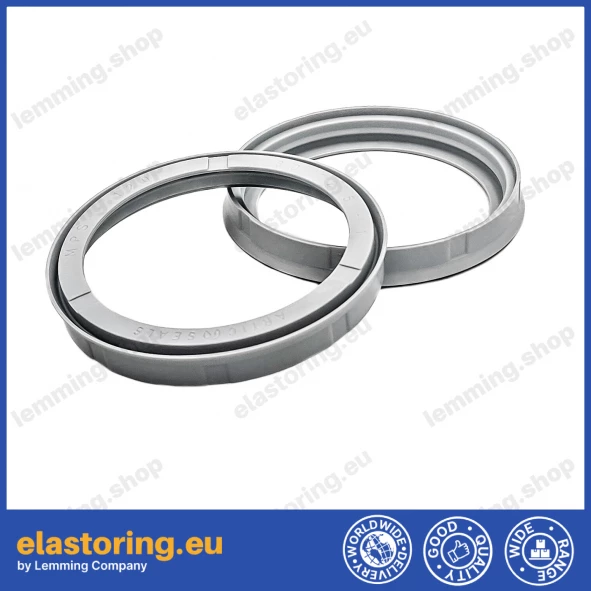

Piston seal MPS 63x55x5 (120°) PU

Description

The MPS seal has been specifically designed either for pneumatic compact short stroke cylinders and single/double effect cylinders.
The guiding element is integrated on the seal. Specific notches keep the lubricant grease maintaining a sliding effect on the piston for longtime.

The magnet is located between the two opposed gaskets.

For specific needs or problems, our technical office is at your complete disposal with tailor-made solutions.

Technical data

• Pressure: < 20 bar
• Speed: < 1 m/s
• Temperature: from -30° C up to +90° C
• Fluids: air with or without lubrication, mineral oils or grease

Material

Standard polyurethane 90 Shore A. Standard compound reference: B0
Alternative polyurethane 85 Shore A. Alternative compound reference: A0
