Seal kit for CS15, CX15 EDBRO -4 stages

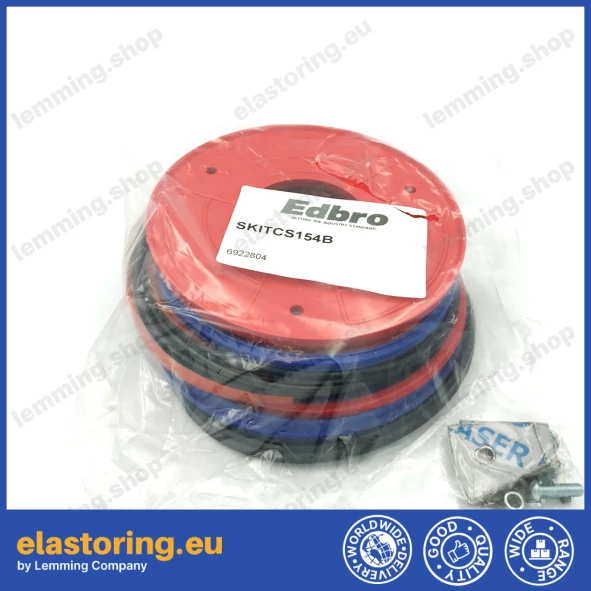

Original repair kit designed for EDBRO telescopic cylinders, CS15 and CX15 series.
The kit includes sealing elements, wipers, and wear rings.
Suitable for cylinder models such as CX1500405006A101, CX1500405606A275, CX1500405006A393, CS150S304639A102, CS150S4xxxxxAxxx and CS15004**A.

Kit contents for each rod diameter:

• Rod 98 mm (3.86")
  • Wiper EWM98/01 – 1 pc.
  • Seal SAM98/01 (44496) – 1 pc.
  • Guide ring BRH98/04/LF – 2 pcs.

• Rod 117 mm (4.61")
  • Wiper EWM117/01 – 1 pc.
  • Seal SAM117/01 (44497) – 1 pc.
  • Guide ring BRH117/04/LF – 2 pcs.

• Rod 136 mm (5.35")
  • Wiper EWM136/01 – 1 pc.
  • Seal SAM136/01 (44498) – 1 pc.
  • Guide ring BRH136/04/LF – 2 pcs.

• Rod 155 mm (6.10")
  • Wiper EWM155/01 – 1 pc.
  • Seal SAM155/01 (44499) – 1 pc.
