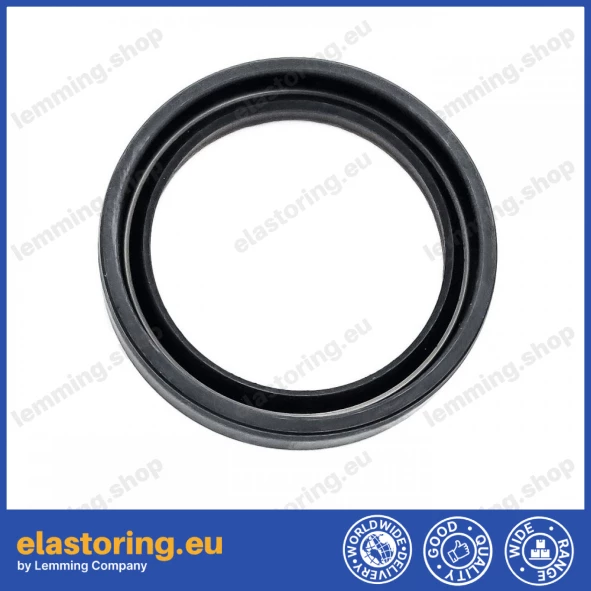

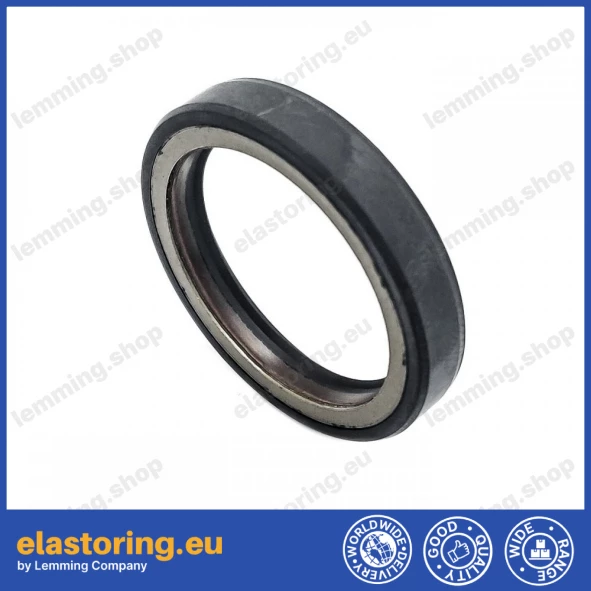

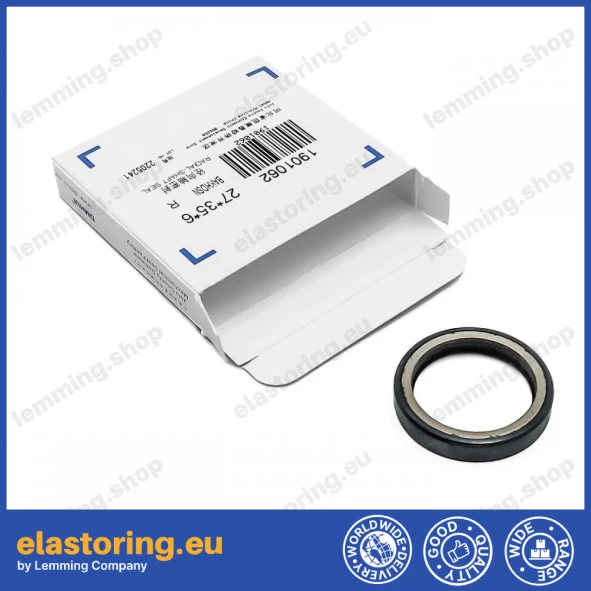

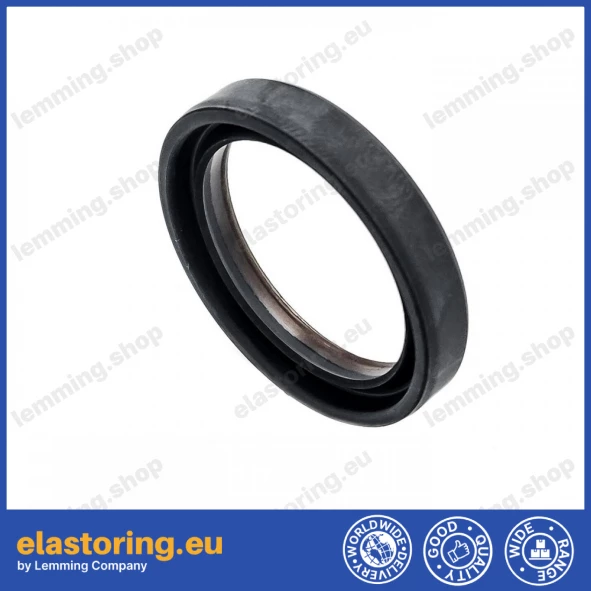

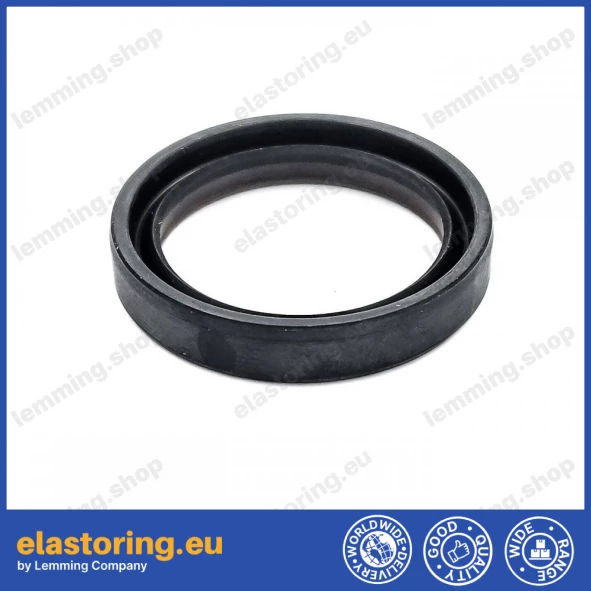

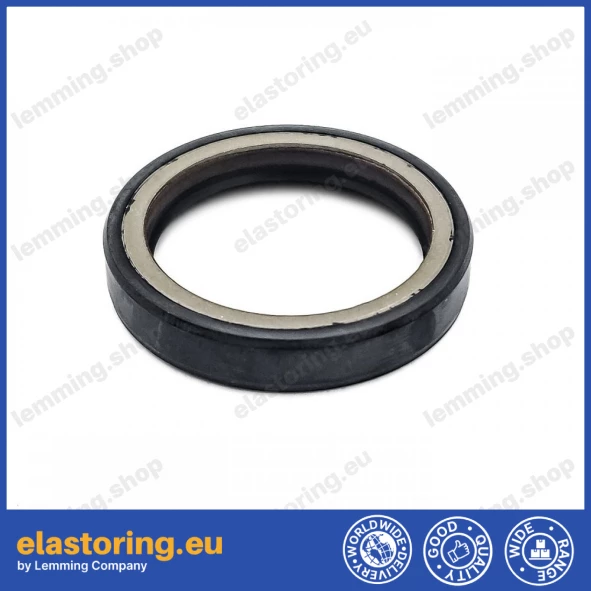

High pressure oil seal 27x35x6 BAKHDSN PTFE+NBR

The high-pressure shaft seal 27x35x6 BAKHDSN PTFE+NBR is a specialist sealing element used in hydraulic motors, especially in hydrokinetic drives.

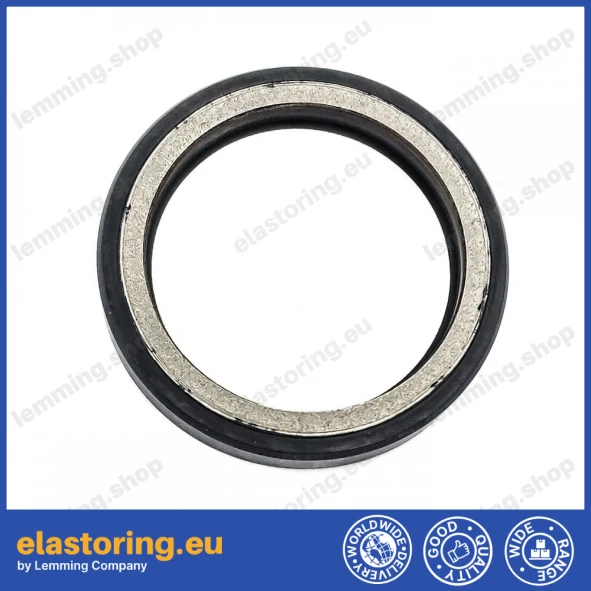

Its open metal insert on the front side ensures surface stability and prevents deformation under pressure.
The PTFE sealing layer offers low-friction performance, while the NBR structure provides oil resistance and elasticity.
Interchangeable with BAHD and BAHDSN models.

Technical data:

• Inside diameter: 27 mm (1.06 inches)

• Outside diameter: 35 mm (1.38 inches)

• Seal height: 6 mm (0.24 inches)

• Material: PTFE + NBR

• Max operating pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s
