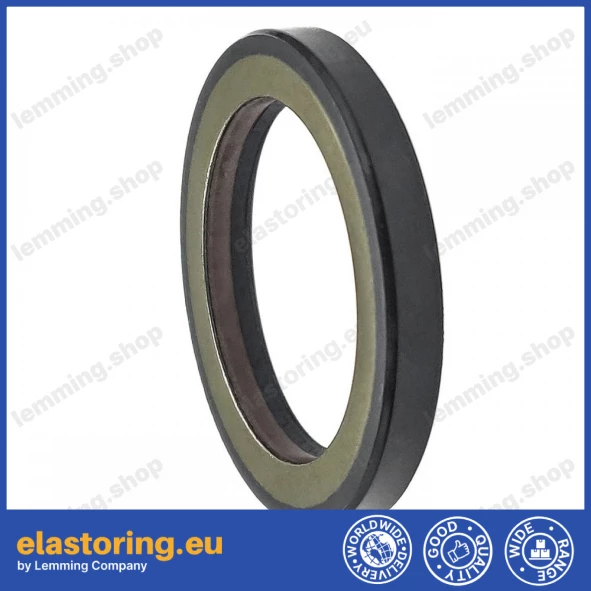

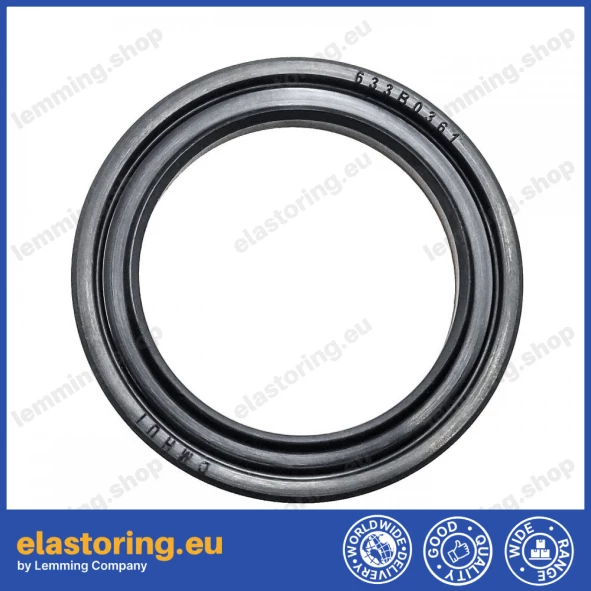

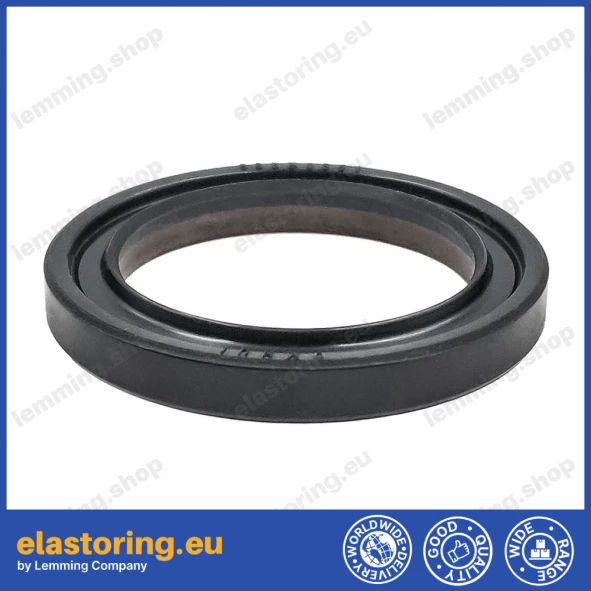

High pressure oil seal 28,6x39x4,9 BAKHDSN NBR

The 28.6x39x4.9 BAHDASN NBR shaft seal finds application in hydraulic engines used in hydrokinetic drives.

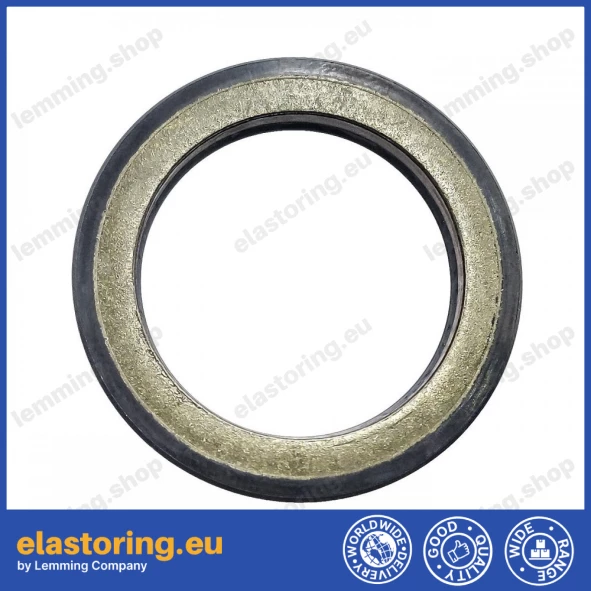

Its construction includes an open metal insert on the front side, which provides a stable contact surface and protects against deformation under pressure.
The average working pressure is 100 bar, while the maximum working pressure is 150 bar, with a maximum linear speed of 2 m/s.
Simmerings marked with the symbols BAHD, BAHDN, and BAHDASN are interchangeable and can be used in the same applications.

Technical data:

• Shaft Diameter (d): 28.6 mm (1.126 in)
• Housing Diameter (D): 39 mm (1.535 in)
• Width / Thickness (H): 4.9 mm (0.193 in)
