High pressure oil seal 28,6x39x4,9 NBR [633B0361]

High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
High pressure oil seal 28,6x39x4,9 NBR [633B0361]
  • Code: 48000216
  • In Stock: 33 pcs.
Updated: 03.09.2025 09:34
Rotary seal dimension
Shaft Diameter (mm) 28,6
Housing diameter (mm) 39
Width 1 4,9
Details
Seal type 633B0361
Material type NBR
56.35€/pcs.

Description

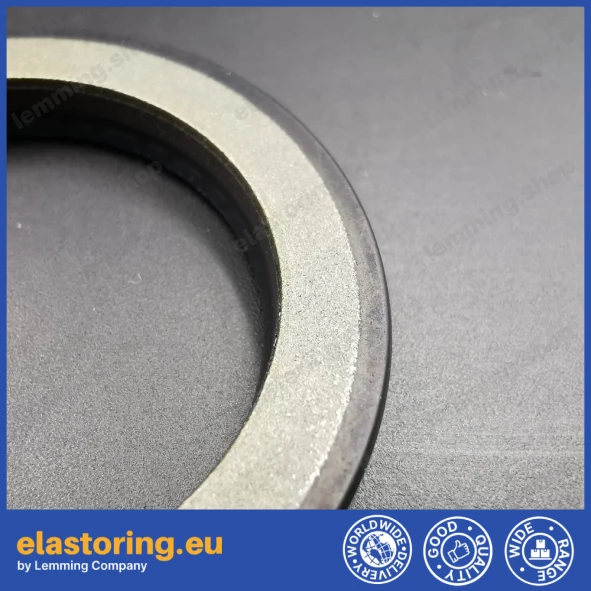

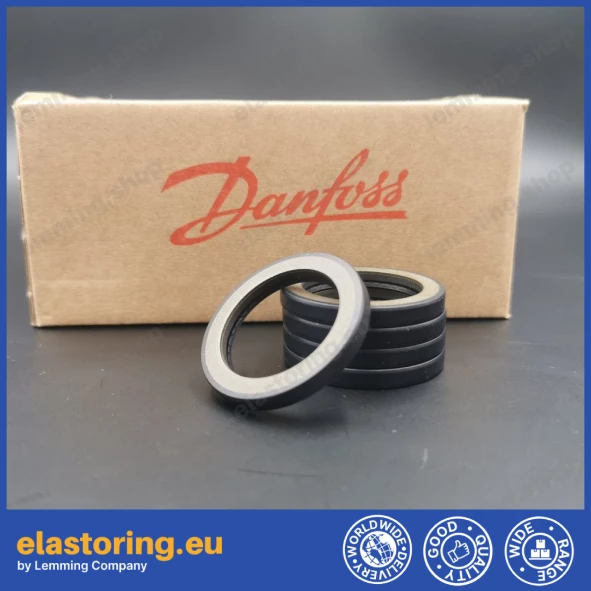

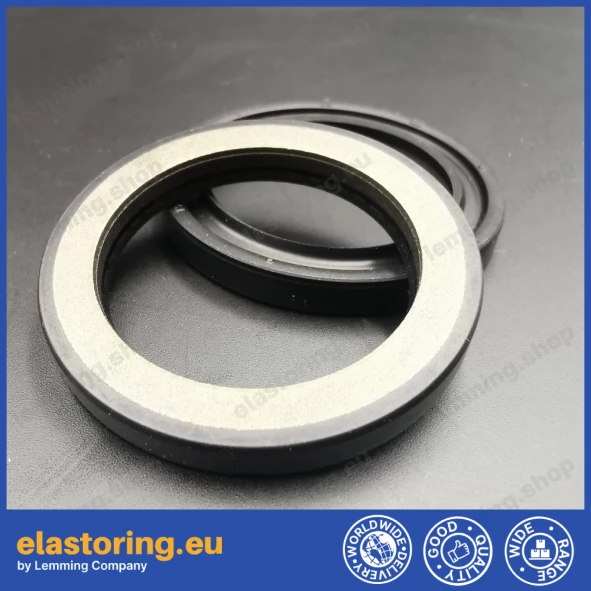

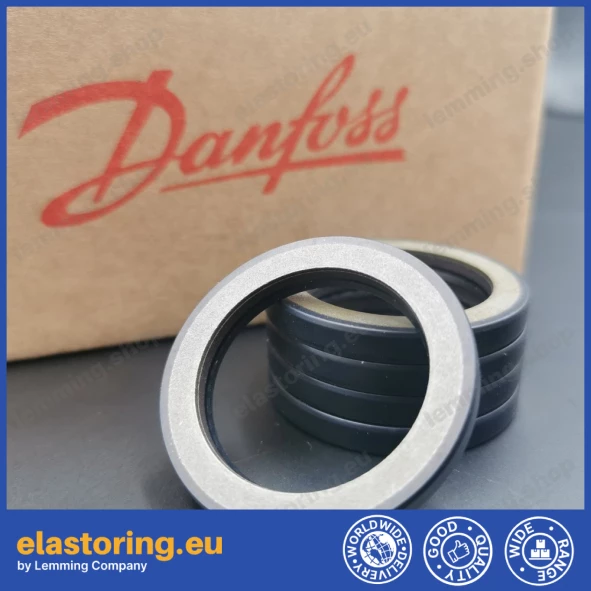

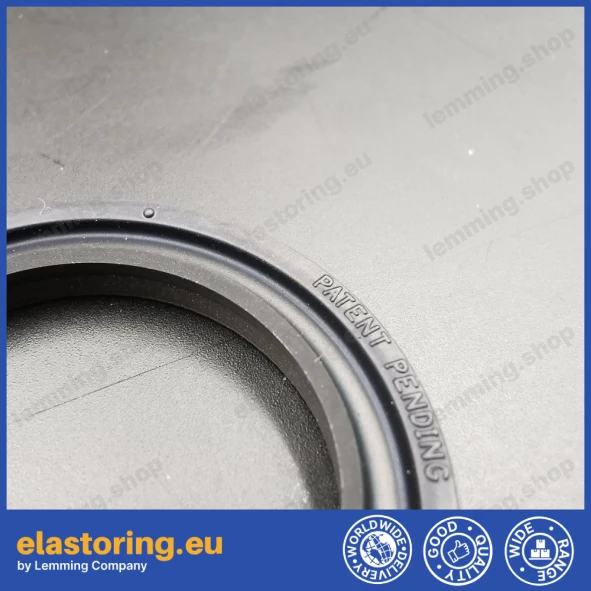

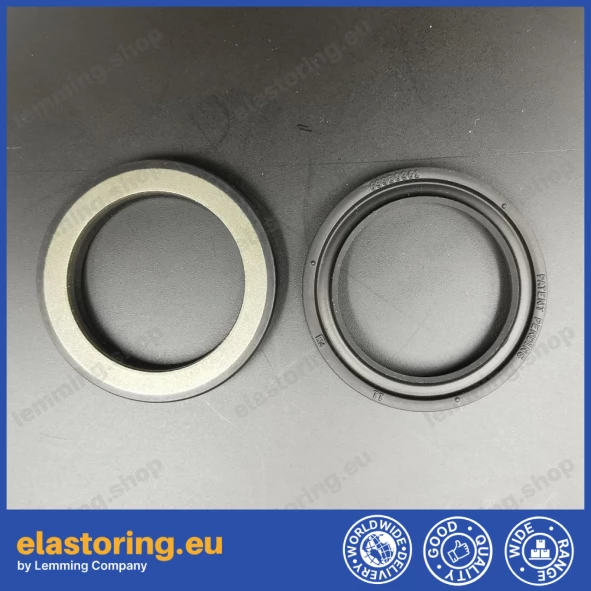

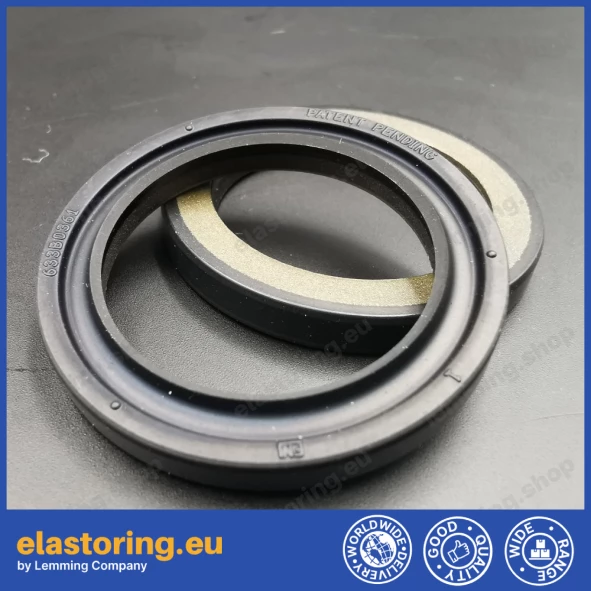

The shaft seal (oil seal) 28.6×39×4.9 NBR [code: 633B0361] is designed for Sauer Danfoss hydraulic motors. Made of NBR (nitrile butadiene rubber), it provides resistance to oils and greases, ensuring reliable performance in demanding applications. It is compatible with OMP, OMR, and OMPW series motors.

Dimensions:

  • 28.6 × 39 × 4.9 mm (d1 x D x b)

  • 1.126" × 1.535" × 0.193"

Technical details:

  • Manufacturer code: 633B0361

  • Material: NBR (nitrile rubber)

  • Application: Sauer Danfoss hydraulic motors (OMP, OMR, OMPW)
