High pressure oil seal 35x48x5,5 BAKHDSN NBR














High pressure oil seal 35x48x5,5 BAKHDSN NBR
- Code: 1902029
- In Stock: 47 pcs.
Updated: 01.08.2025 15:25
Rotary seal dimension | |
Shaft Diameter (mm) | 35 |
Housing diameter (mm) | 48 |
Width 1 | 5,5 |
Details | |
Pressure | P > 10Bar |
Seal type | BAKHDSN |
Material type | NBR |
- Brand: DMHUI
- SKU: 8853
37.50€/pcs.
5 pcs. or more 7.74€/pcs.
10 pcs. or more 7.27€/pcs.
Interchangeable
..
30.47€
In Stock: 427
Similar
..
53.91€
In Stock: 12
..
24.61€
In Stock: 95
Description
The High-Pressure Seal 35x48x5.5 BAKHDSN NBR is a specialist sealing element that is used in hydraulic engines. Thanks to its construction, this seal is able to withstand high pressure, making it an ideal solution for hydrokinetic drives.

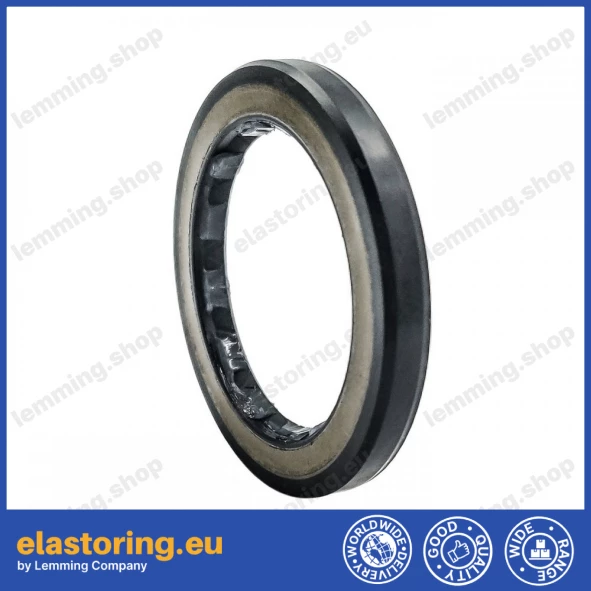

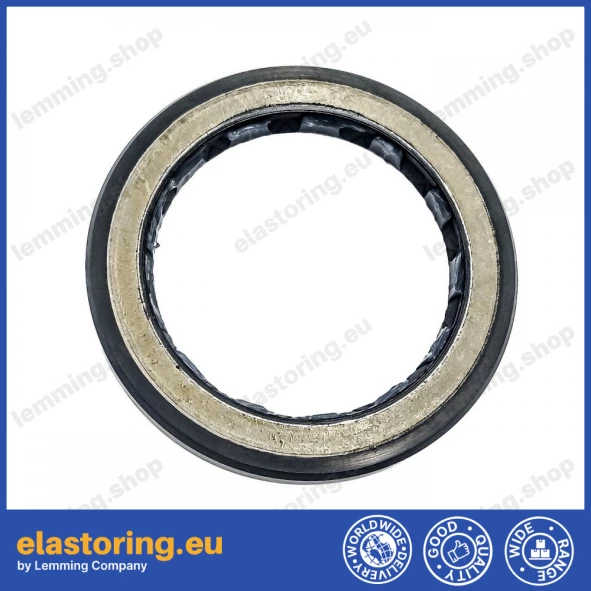

This seal is characterized by an open metal insert on the front side, which provides a stable contact surface. Such a construction protects the seal from deformation under pressure, which is crucial for maintaining its full functionality.
The product is made of NBR, or nitrile rubber, which is a material highly resistant to various external factors. The maximum working pressure of the seal is 150 bar, while the average working pressure is 100 bar. The maximum linear speed it can withstand is 2 m/s.
Seals marked with the symbols BAHD, BAHDSN, and BAKHDSN are interchangeable and can be used interchangeably in the same applications. This means that regardless of the specific model, each of them will perform its task in a similar way.
This product is designed to work in difficult conditions, where high reliability and durability of the seal are required. Therefore, the High-Pressure Seal 35x48x5.5 BAKHDSN NBR is a choice that will certainly meet the expectations of even the most demanding users.
