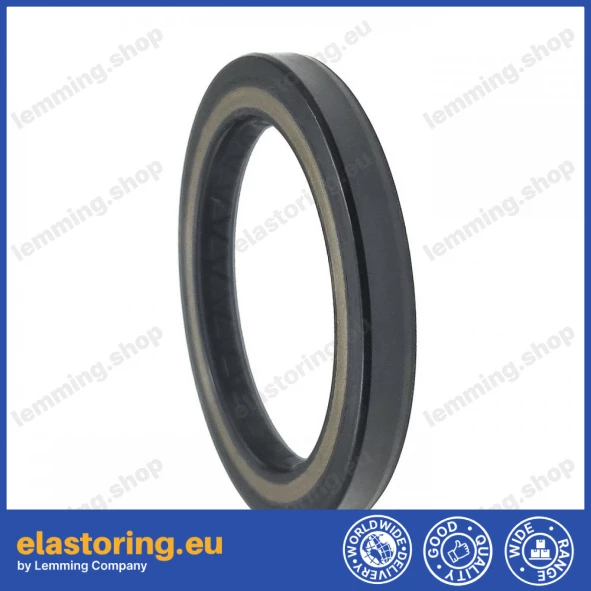

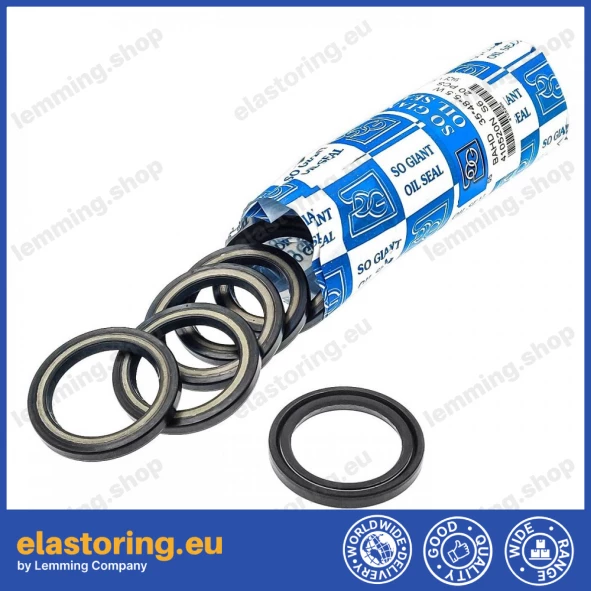

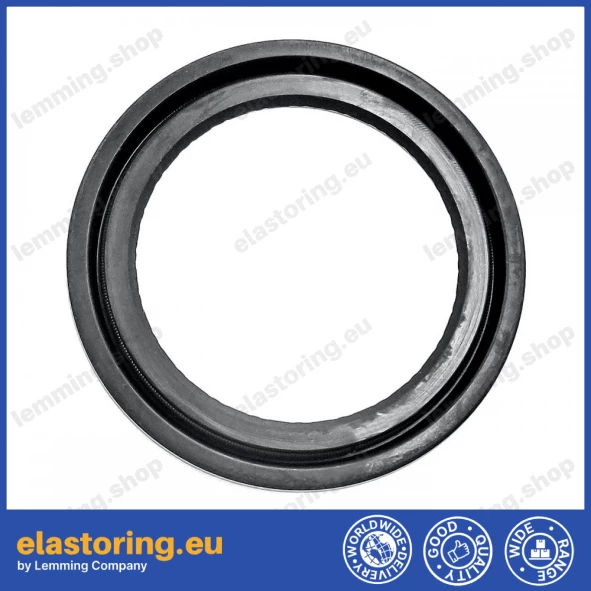

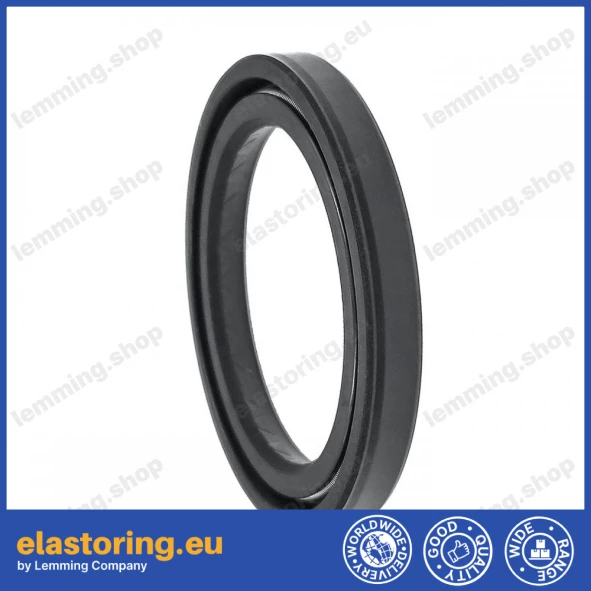

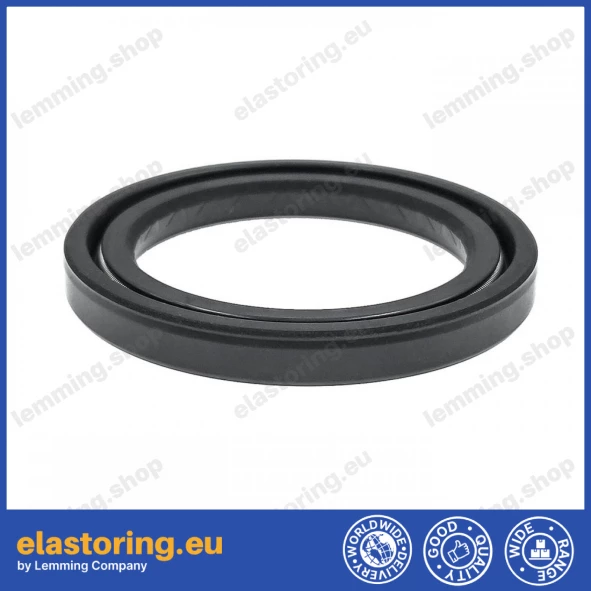

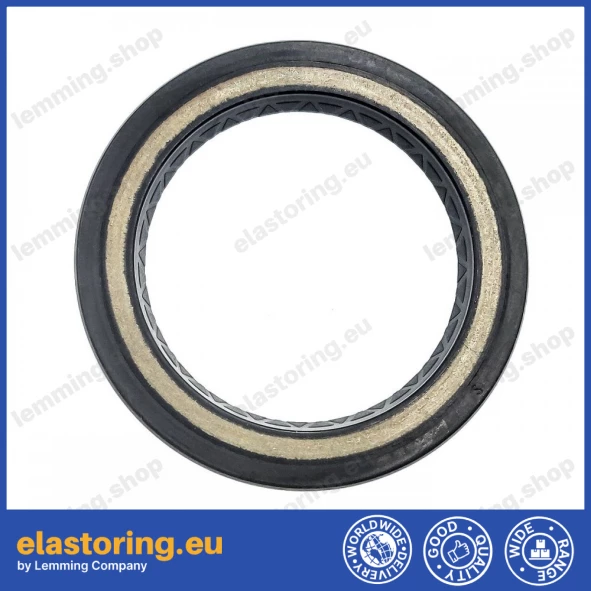

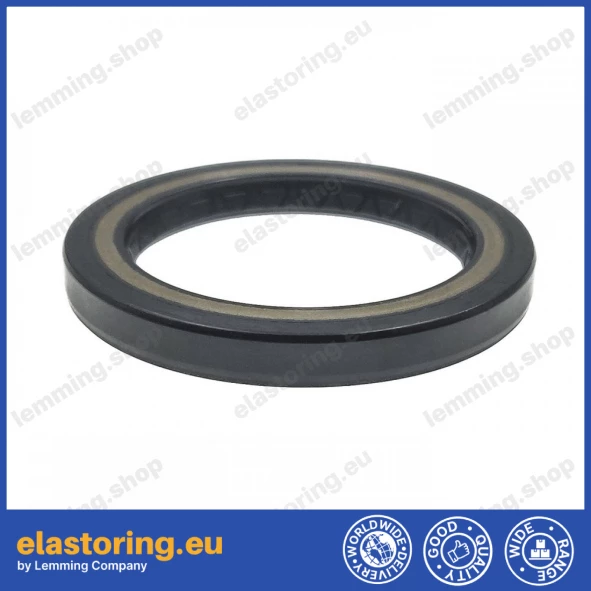

High pressure oil seal 35x48x5,5 BAHD NBR

The high-pressure shaft seal 35x48x5.5 BAHD NBR by SOG (code: 410520N) is used in hydraulic motors and hydrokinetic drives.
It features a front-facing open metal insert for dimensional stability.
Made from oil- and fuel-resistant nitrile rubber (NBR). Fully interchangeable with BAHDSN and BAKHDSN.

Technical data:

• Inside diameter: 35 mm (1.38 inches)

• Outside diameter: 48 mm (1.89 inches)

• Seal height: 5.5 mm (0.22 inches)

• Size in inches: 1.38×1.89×0.22

• Material: NBR

• Type: BAHD

• Manufacturer: SOG

• Code: 410520N

• Max operating pressure: 150 bar

• Average pressure: 100 bar

• Max linear speed: 2 m/s
