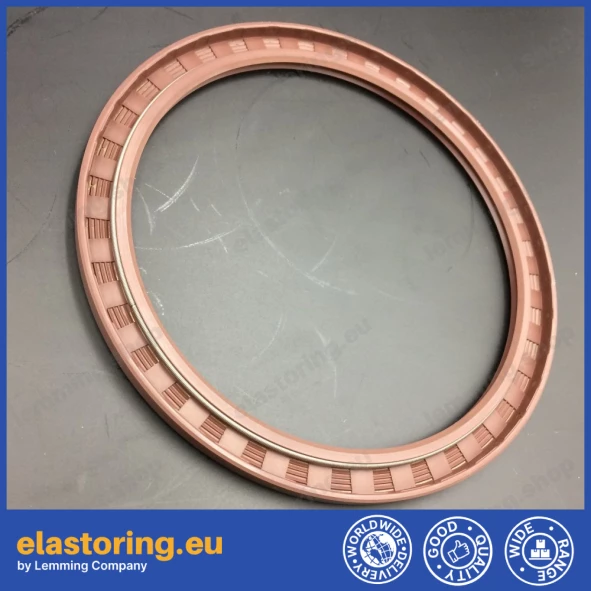

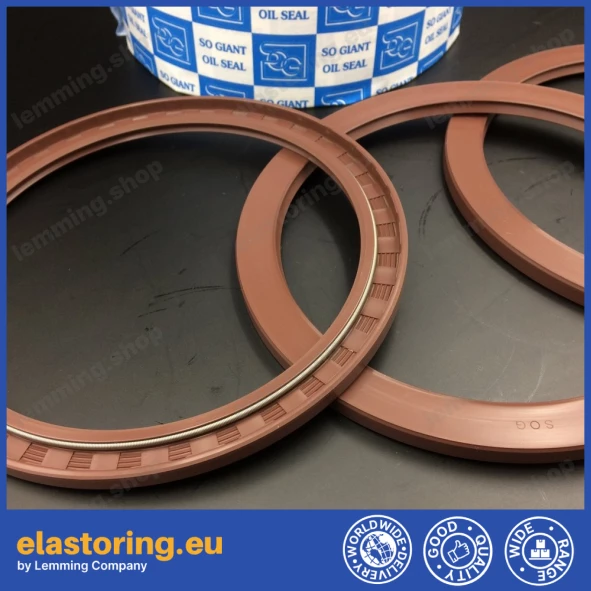

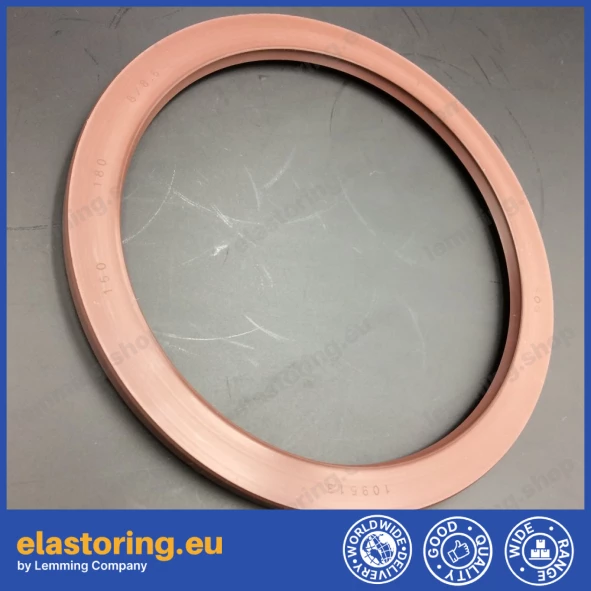

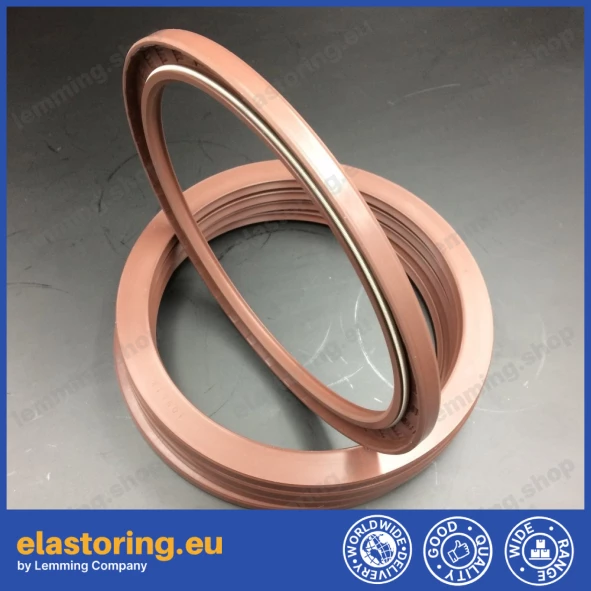

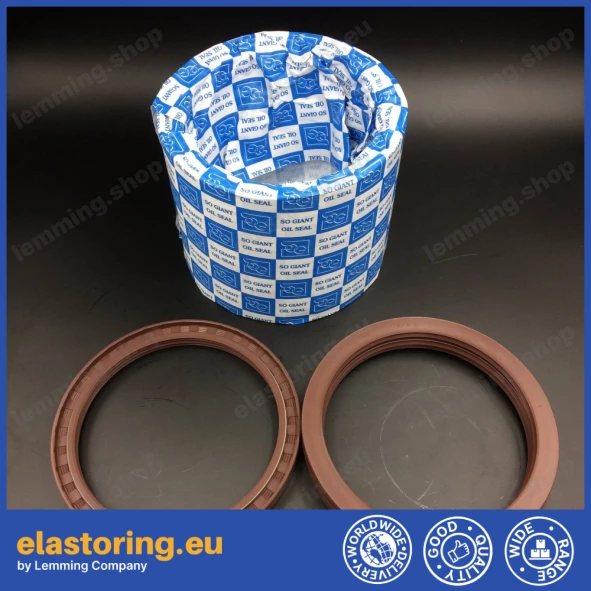

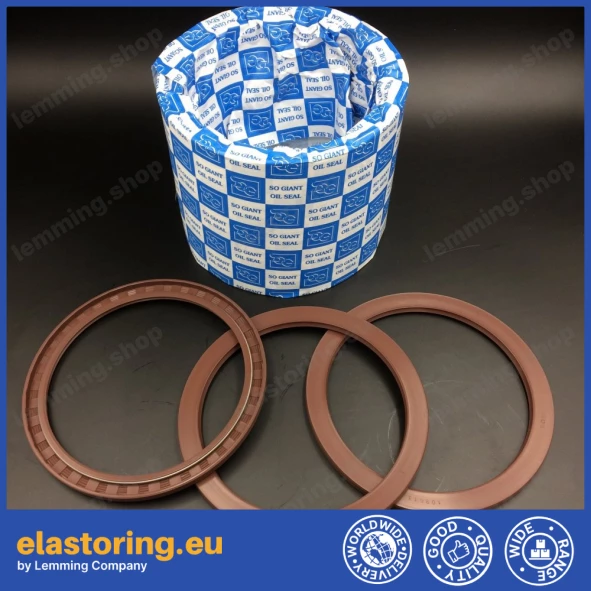

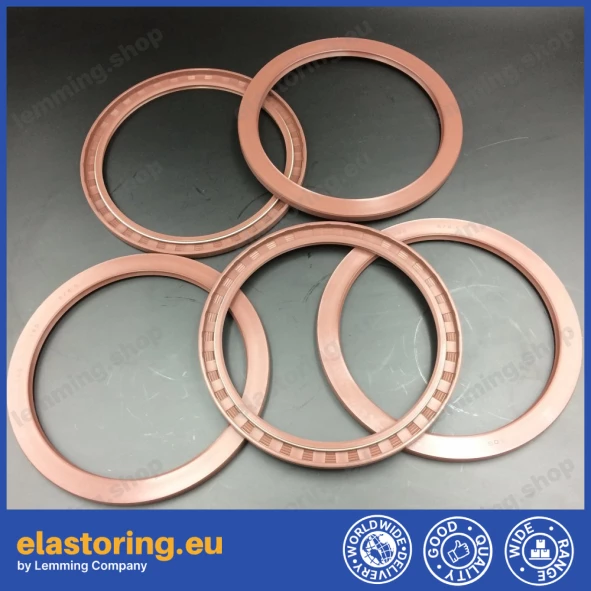

Pressure oil seal 150x180x8/8,5 BABSL FPM

The pressure-resistant BABSL FPM oil seal in dimensions 150 × 180 × 8 / 8.5 mm (inner × outer × height / lip) is manufactured by SOG (Taiwan), part number 109513V.
Designed for applications under pressure (up to ~10 bar), it features a reinforced housing and a protective lip design.
The sealing element is made of FPM (Viton), suitable for elevated temperatures and aggressive media, with an additional dust lip.

Technical features:

• Inner diameter (d): 150 mm

• Outer diameter (D): 180 mm

• Height / lip widths: 8 mm / 8.5 mm

• Type: BABSL (pressure type with protective lip)

• Sealing material: FPM / Viton (fluoroelastomer)

• Temperature range: approx. –20 °C to +200 °C

• Intended use: hydraulics, rotating machinery

• Operating pressure: up to approx. 10 bar

• Structure: dual-lip design with additional protection

This oil seal is suited for preventing oil leakage under pressure and protecting internal components from contamination thanks to its lip and pressure design.
