Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR

Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
Pressure oil seal 17,46x28,58x5,8/6,3 BABSL NBR
  • Code: 12012022B
  • In Stock: 21 pcs.
Updated: 17.10.2025 12:25
Rotary seal dimension
Shaft Diameter (mm) 17,46
Housing diameter (mm) 28,58
Width 1 5,8
Width 2 6,3
Details
Pressure P < 10bar
Seal type BABSL
Material type NBR
$10.99/pcs.
5 pcs. or more $2.47/pcs.
10 pcs. or more $1.92/pcs.

Description

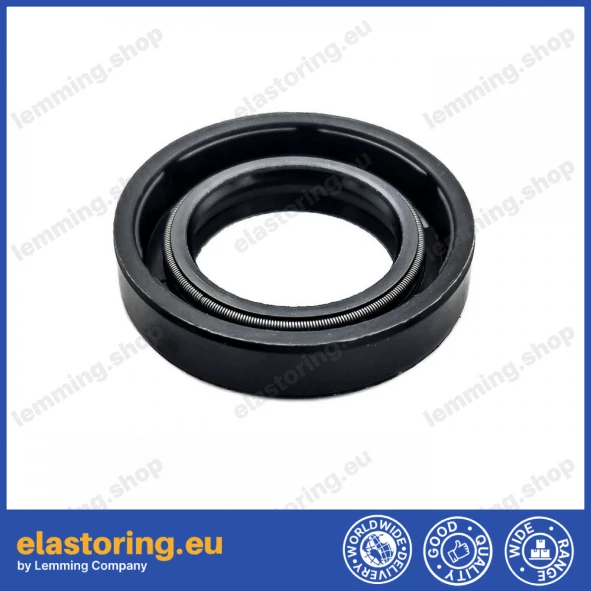

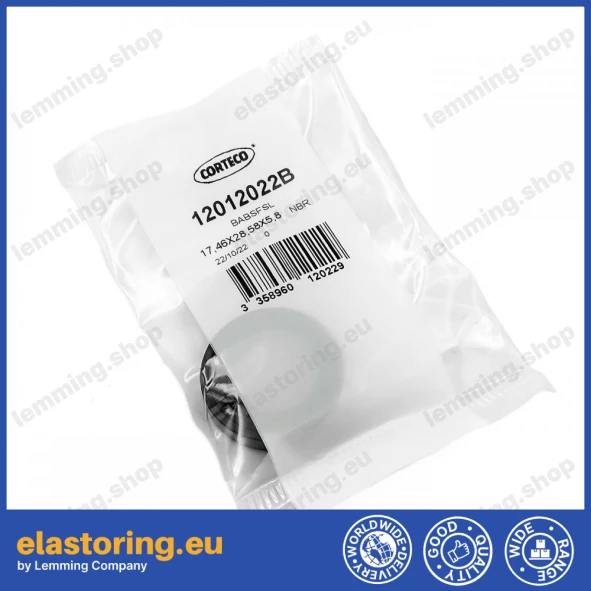

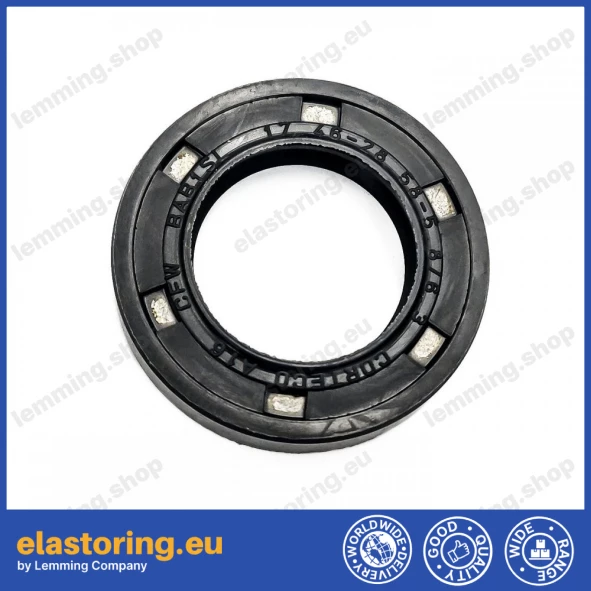

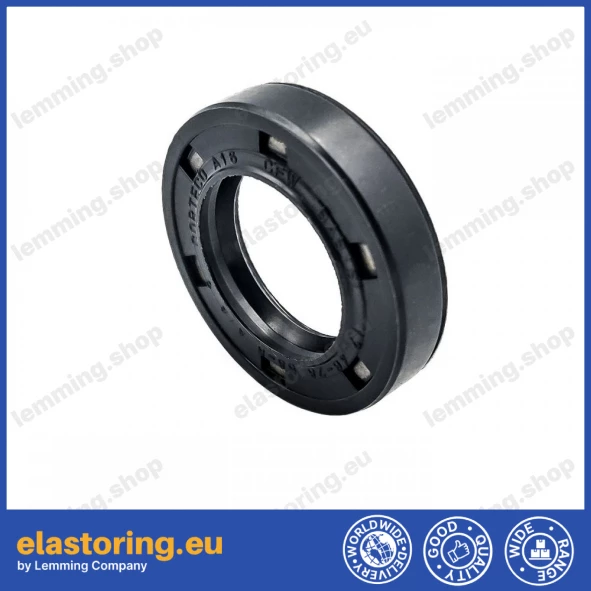

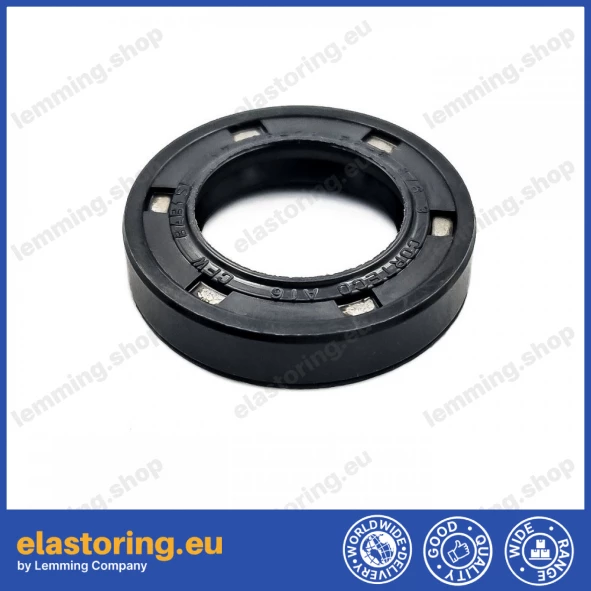

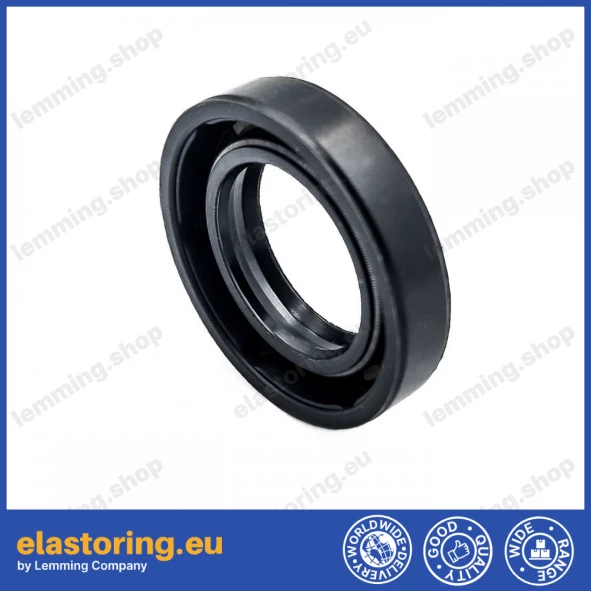

The Corteco 12012022B pressure oil seal is a BABSL-type radial shaft seal made from NBR (nitrile-butadiene rubber).
It is designed for pressure applications, providing reliable sealing of rotating shafts and protection against external contamination.

Technical specifications:

  • Inner diameter (d): 17.46 mm

  • Outer diameter (D): 28.58 mm

  • Height (H): 5.8 / 6.3 mm

  • Inch size: 0.687″ × 1.125″ × 0.23″ / 0.25″

  • Type: BABSL

  • Material: NBR

  • Temperature range: –30 °C to +100 °C

  • Max working pressure: up to 10 bar

About BABSL Design

BABSL seals include a spring-loaded sealing lip and an additional dust lip that prevents ingress of dirt and moisture. The rubber-covered metal case ensures secure fitting in the housing.
They are used in hydraulic pumps, motors, and gear units operating under pressure.
