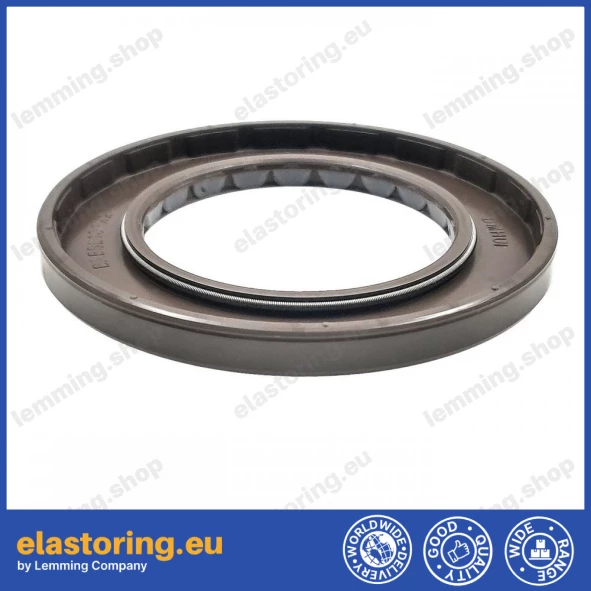

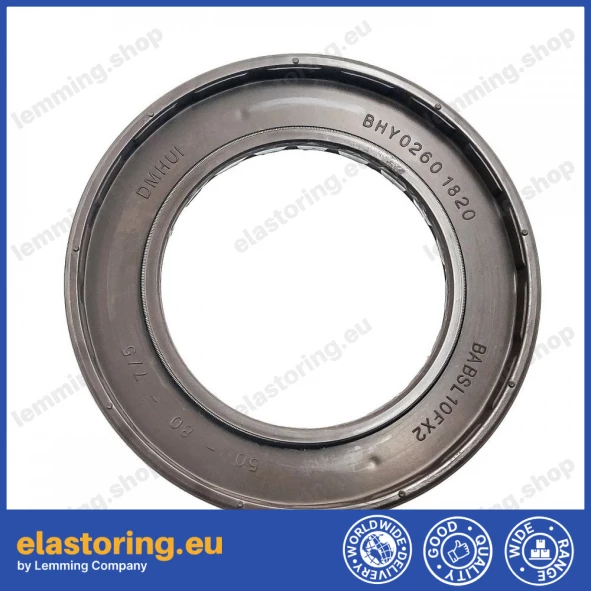

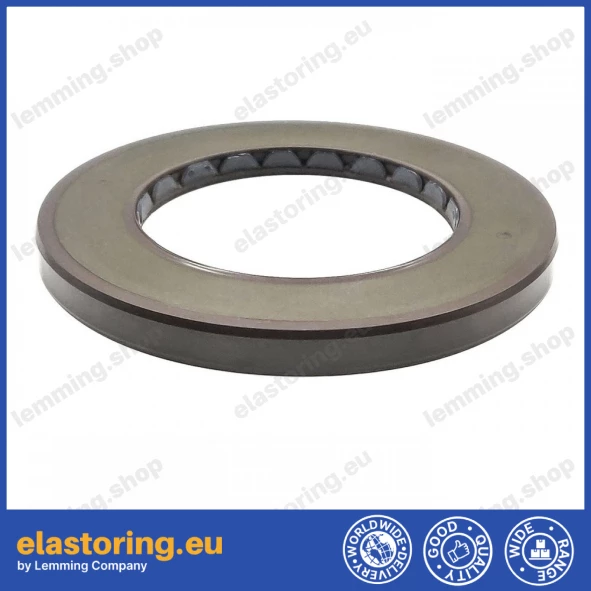

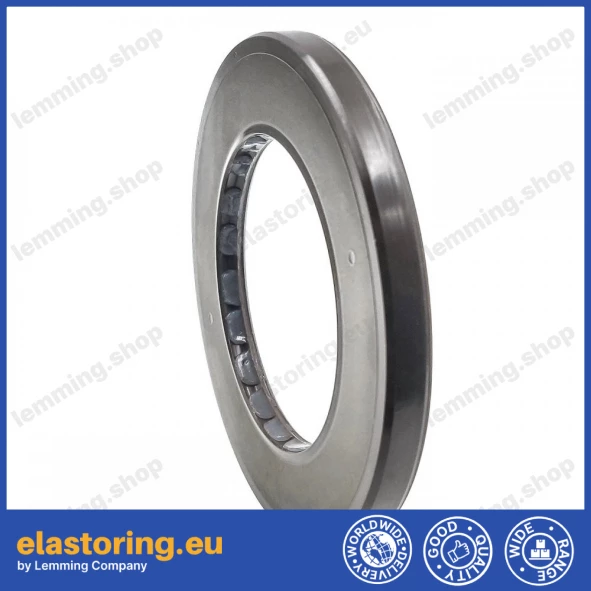

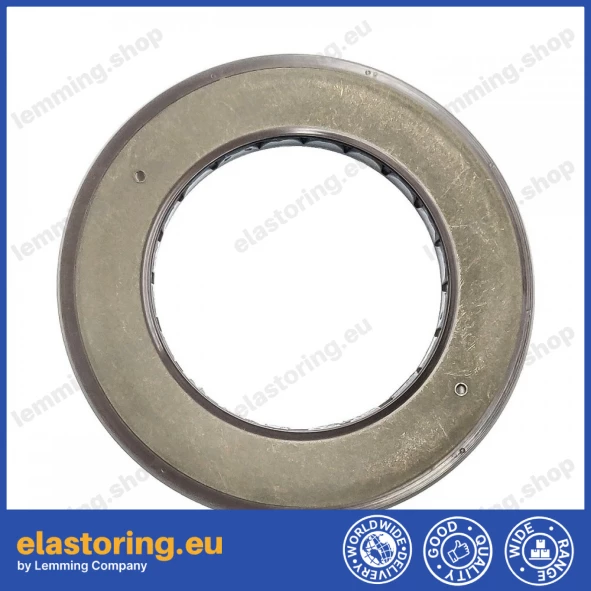

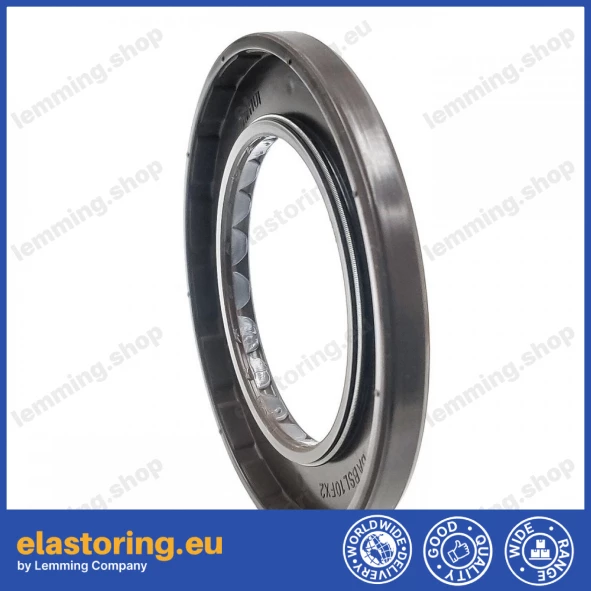

Pressure oil seal 50x80x7/5 BABSL10FX2 FPM

The high-pressure oil seal 50x80x7/5 BABSL10FX2 FPM is designed for hydraulic systems requiring stable sealing under elevated pressure.
It features an open-front metal insert that ensures secure housing retention and reliable operation under heavy-duty conditions.

Manufactured from FPM (FKM fluoroelastomer), this seal provides resistance to hydraulic oils, lubricants, and high temperatures.
The BABSL10FX2 profile is suitable for operating pressures up to 30 bar.

Technical details:

• Inner diameter: 50 mm (1.97 in)

• Outer diameter: 80 mm (3.15 in)

• Height: 7/5 mm (0.28/0.20 in)

• Working pressure: up to 30 bar

• Material: FPM (FKM)

• Open-front design
