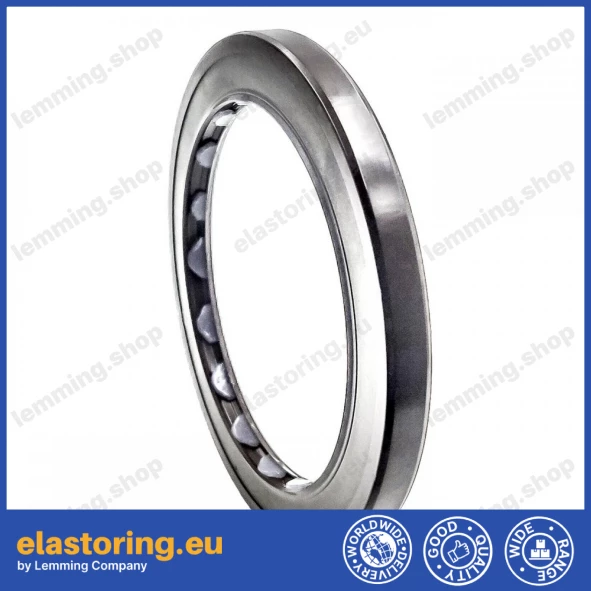

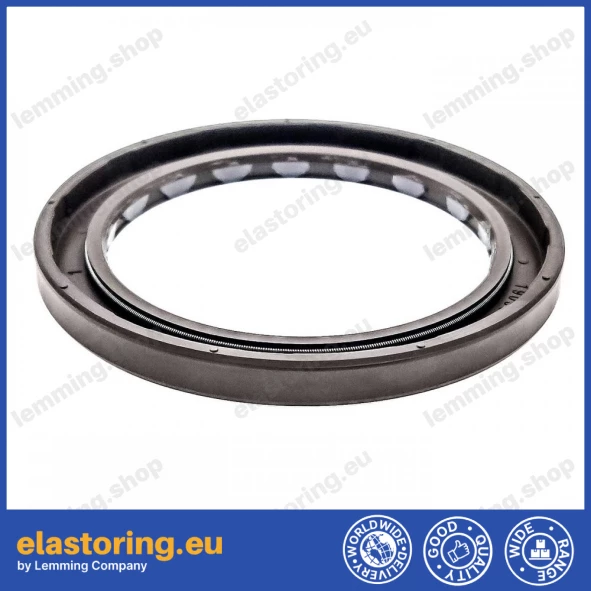

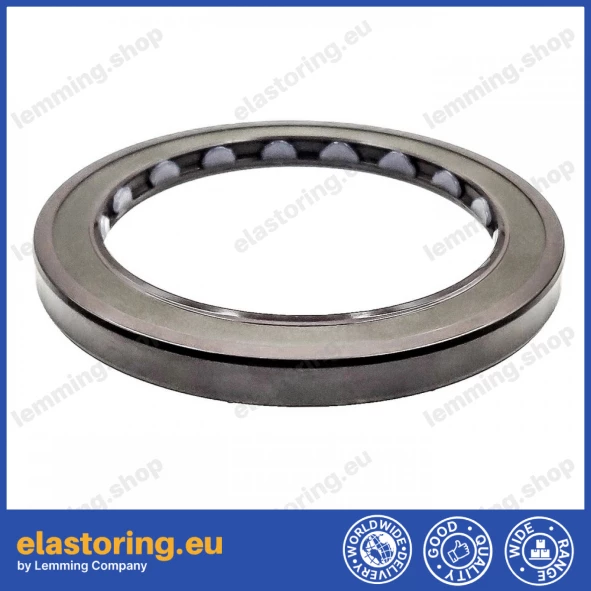

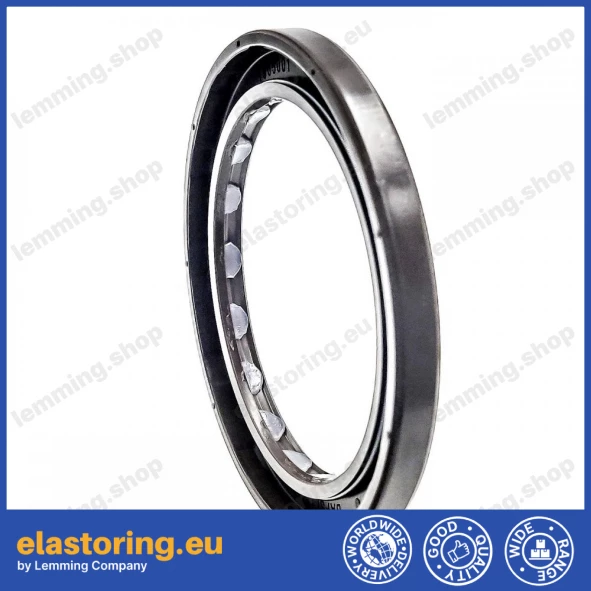

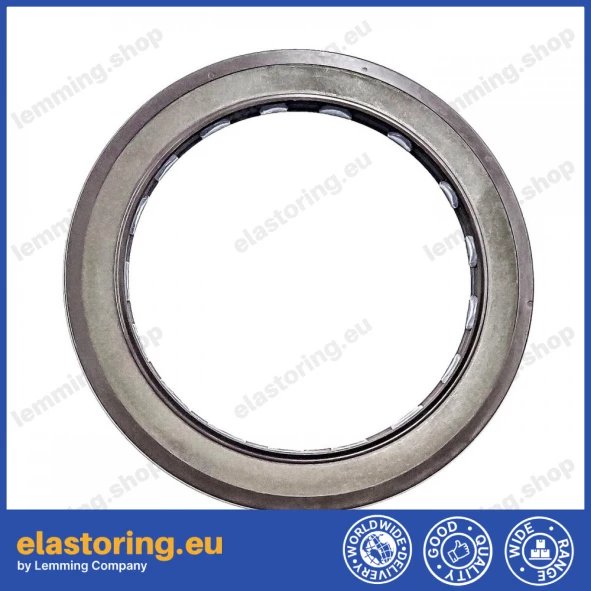

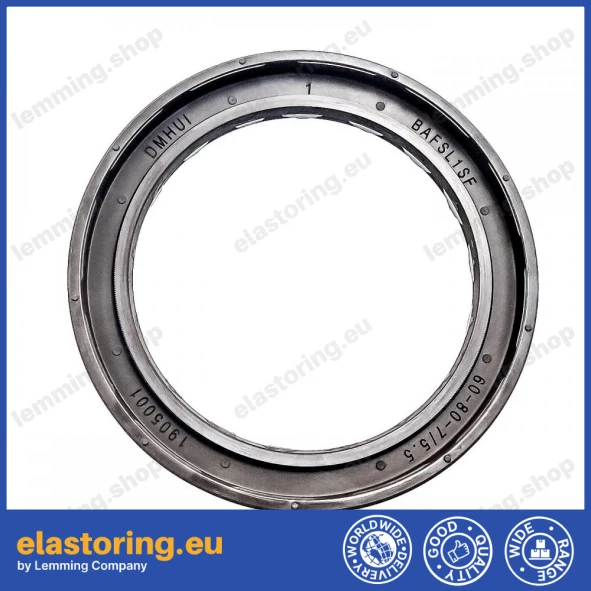

Pressure Oil Seal 60x80x7/5,5 BAFSL1SF FPM

The high-pressure oil seal 60x80x7/5.5 BAFSL1SF FPM is designed for hydraulic applications.
Its open-front metal insert provides reliable housing retention and ensures stability even under high operating pressure.

The seal is made of FPM (FKM fluoroelastomer), which offers resistance to hydraulic oils and elevated temperatures.
The BAFSL1SF type is suitable for working pressures up to 30 bar.

Technical details:

• Inner diameter: 60 mm (2.36 in)

• Outer diameter: 80 mm (3.15 in)

• Height: 7/5.5 mm (0.28/0.22 in)

• Working pressure: up to 30 bar

• Material: FPM (FKM)

• Open-front design
