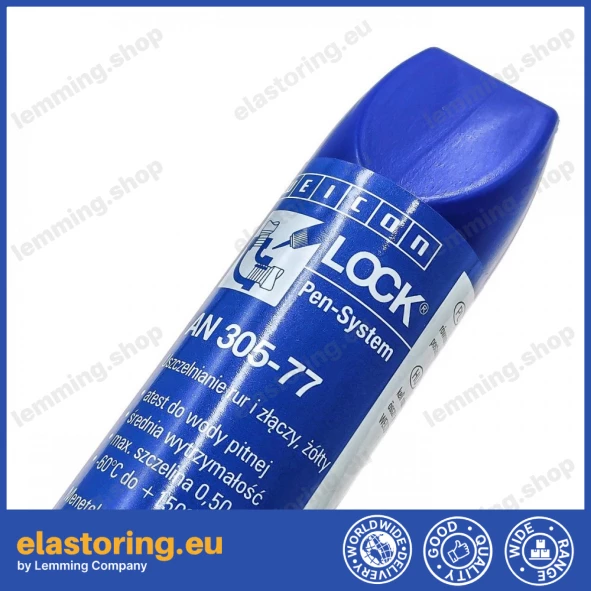

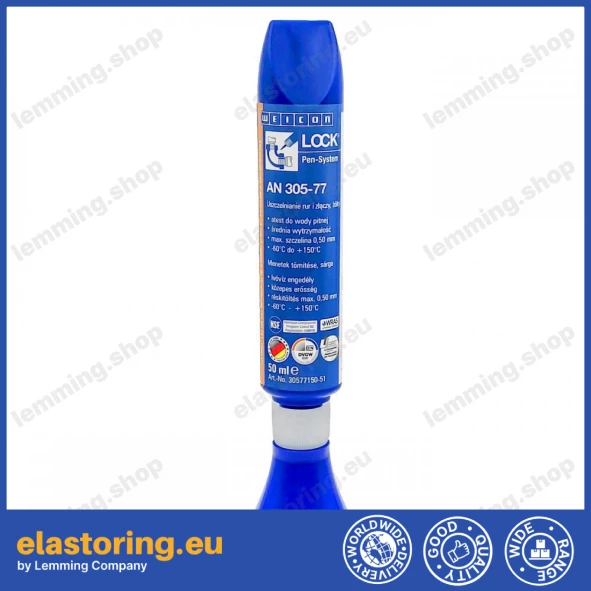

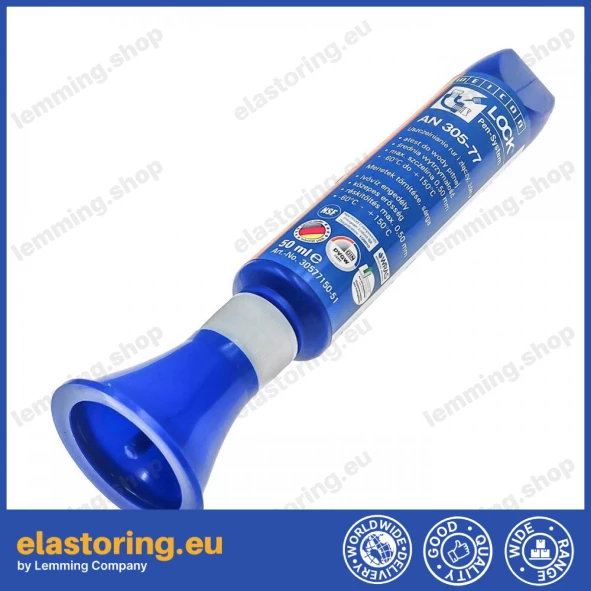

WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]

WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
WEICONLOCK AN 305-77 thread locking agent 50 ml [30577150-51]
  • Code: 10043760
  • In Stock: 3 pcs.
Updated: 24.07.2025 10:25
Details
Original YES
12.69€/pcs.

Description

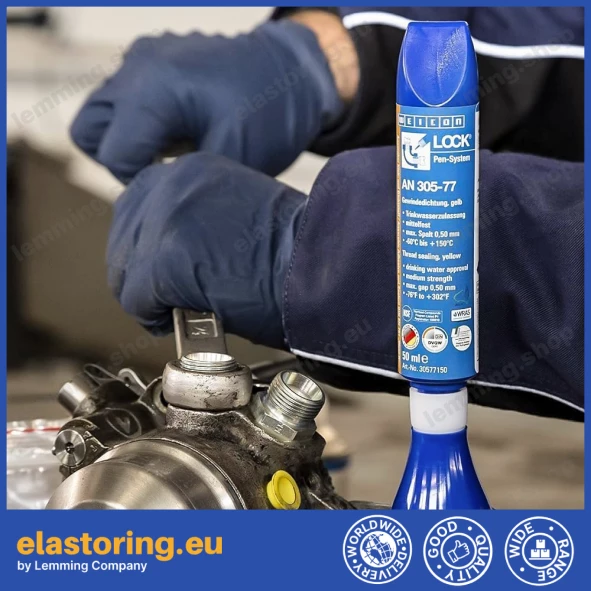

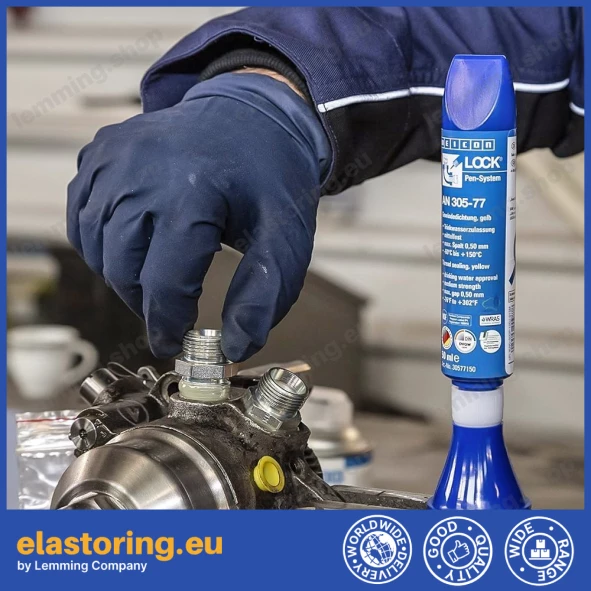

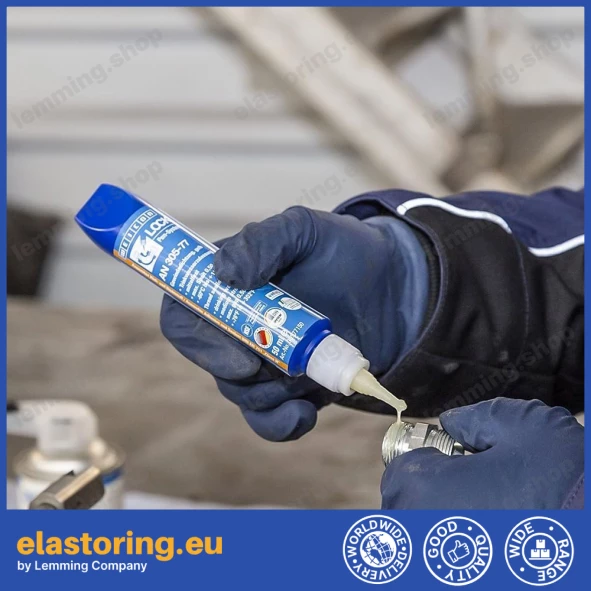

WEICONLOCK AN 305-77 is a high-viscosity, single-component anaerobic sealing adhesive designed for use on threaded and flange connections in hydraulic, pneumatic, and gas systems. It is certified for potable water use (WRAS) and gas installations (DVGW). The product cures in the absence of air between metal surfaces, preventing loosening due to vibration and shock. It is resistant to chemicals and solvents. The WEICON PEN applicator ensures precise and even application.

Technical details:

  • Color: yellow

  • Fluorescent: yes

  • Thread connection size: up to M 80 / R 3"

  • Viscosity at +25 °C (Brookfield): 24,000 – 70,000 mPa·s

  • Max gap fill: 0.5 mm

  • Breakaway torque: 18–22 Nm

  • Prevailing torque: 10–14 Nm

  • Strength (DIN 54452): 6–13 N/mm²

  • Fixture time at room temperature: 15–30 minutes

  • Full cure at room temperature: 1–3 hours

  • Temperature resistance: -60°C to +150°C

  • Certifications: WRAS, DVGW

  • ISSA-Code: 75.628.13/14

  • IMPA-Code: 815214/15
