Piston seal K501 100x79x8,1

Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
Piston seal K501 100x79x8,1
  • Code: K501-100/1
  • In Stock: 14 pcs.
Updated: 27.01.2026 22:26
Hydraulic seals dimension
Groove Diameter D (mm) 100
Groove Diameter d (mm) 79
Groove width H (mm) 8,1
Details
Seal type K501
Material type POM PU
7.76€/pcs.
5 pcs. or more 6.82€/pcs.
10 pcs. or more 6.20€/pcs.
25 pcs. or more 5.73€/pcs.
50 pcs. or more 5.25€/pcs.
100 pcs. or more 4.63€/pcs.

Description

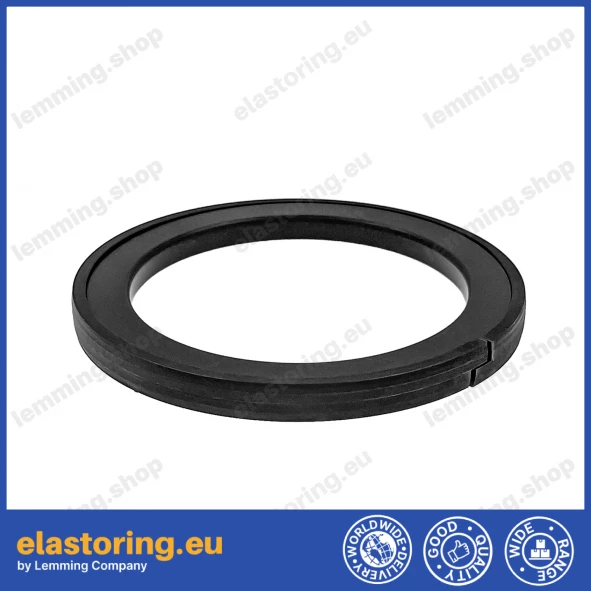

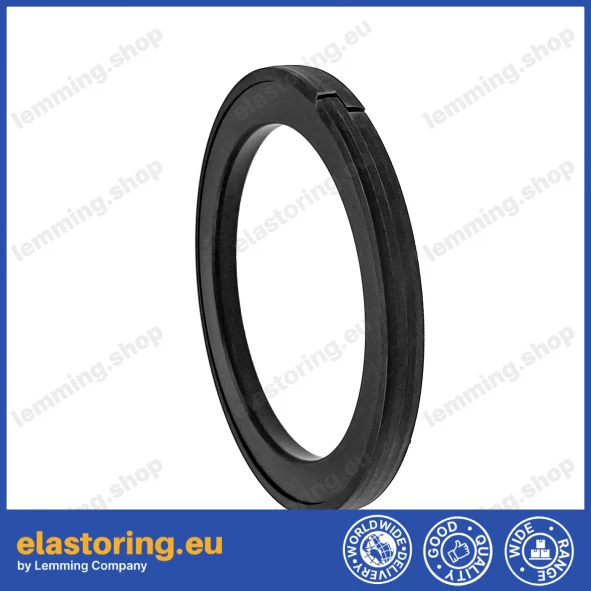

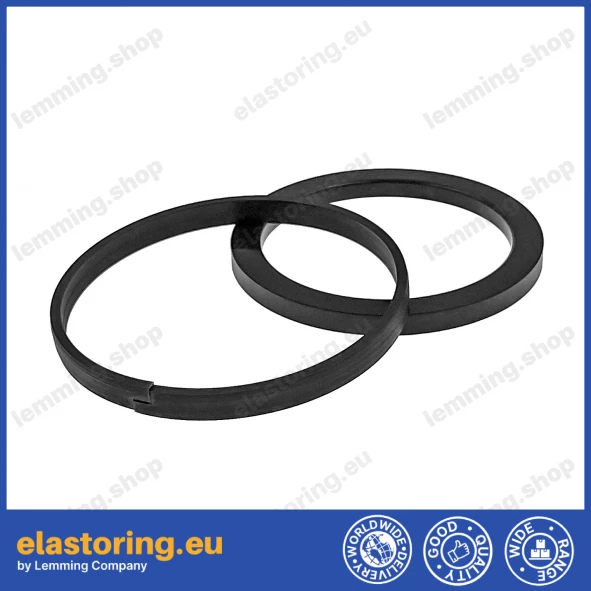

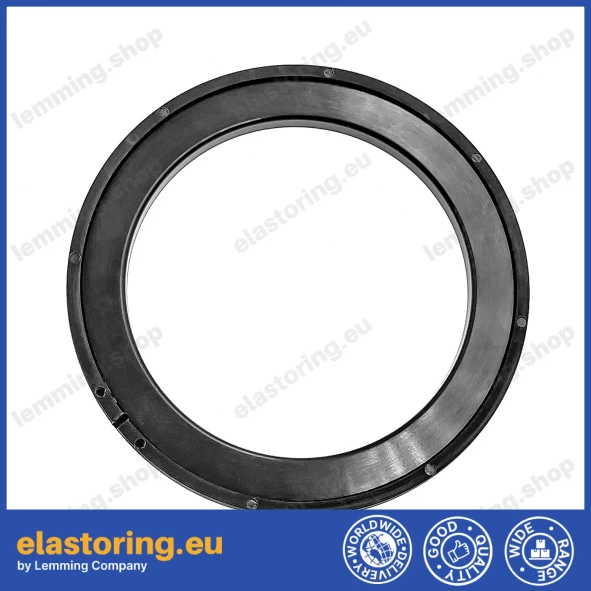

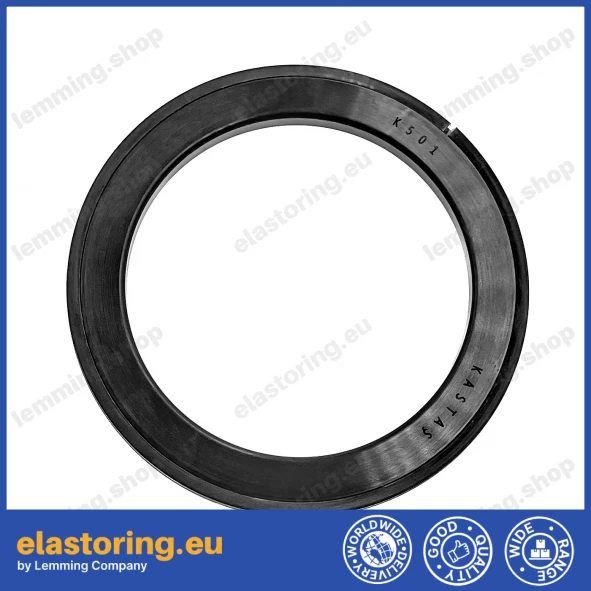

The K501 piston ring is a hydraulic sealing element designed for double-acting cylinders.
It is manufactured from polyamide (PA9904) and NBR (NB7001).

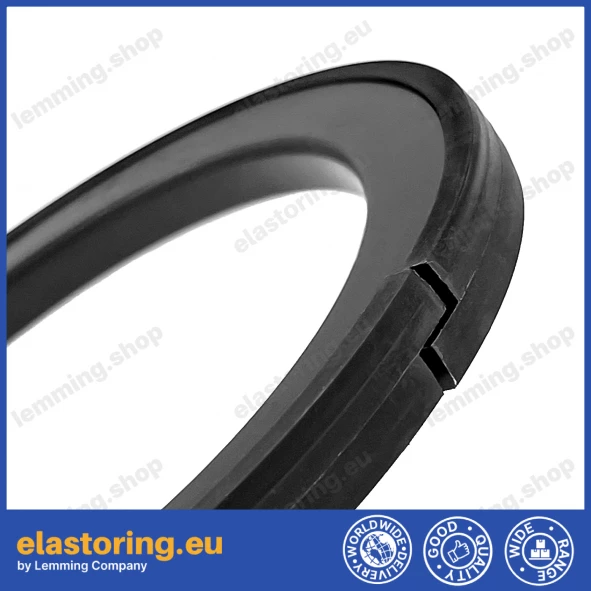

The ring is equipped with a Z cutted joint, which facilitates installation and provides proper sealing in the piston groove.

Technical details:

  • Outside diameter (D): 100 mm

  • Inside diameter (d): 79 mm

  • Height (H): 8.1 mm

  • Inch size: DxdxH = 100x79x8.1 mm ≈ 3.94”x3.11”x0.32”

  • Material: PA (PA9904) + NBR (NB7001)

  • Joint type: Z cutted

  • Working pressure: up to 500 bar

  • Temperature range: -30°C to +105°C

  • Sliding speed: up to 1.0 m/s
