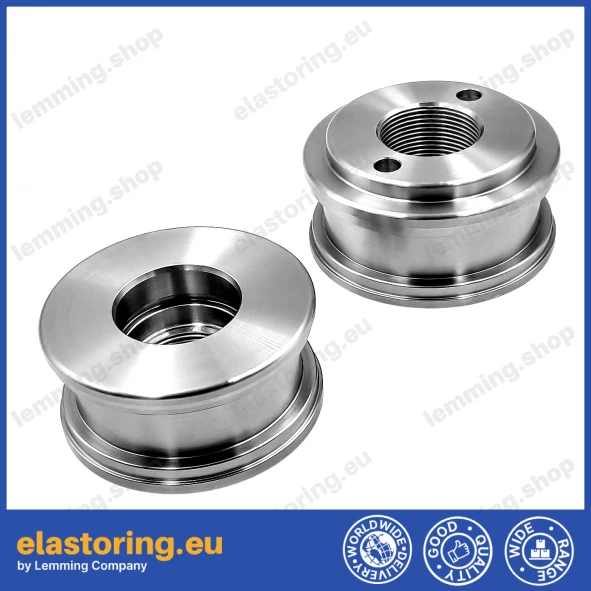

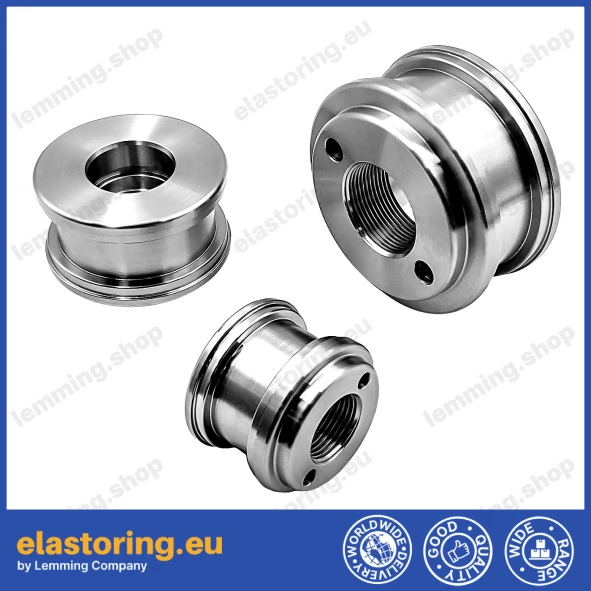

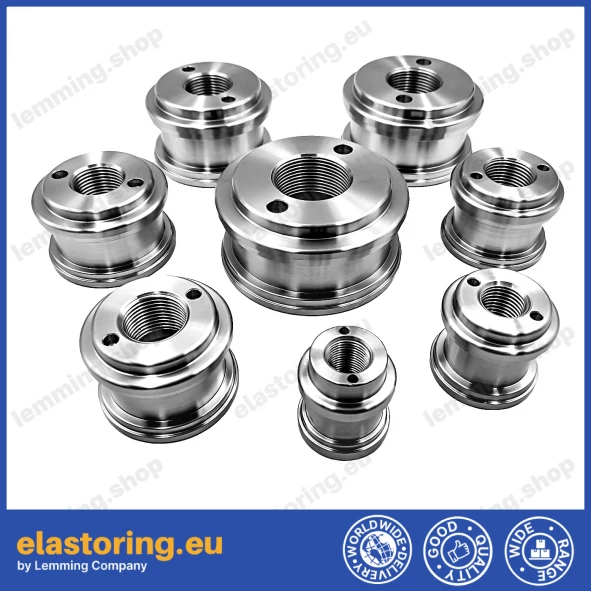

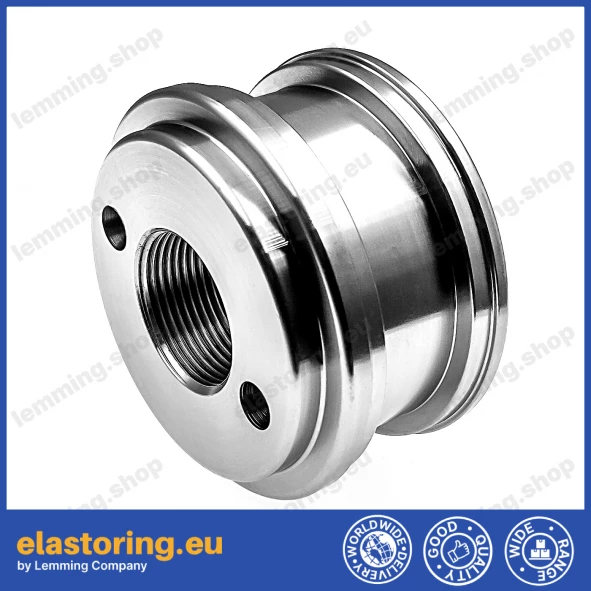

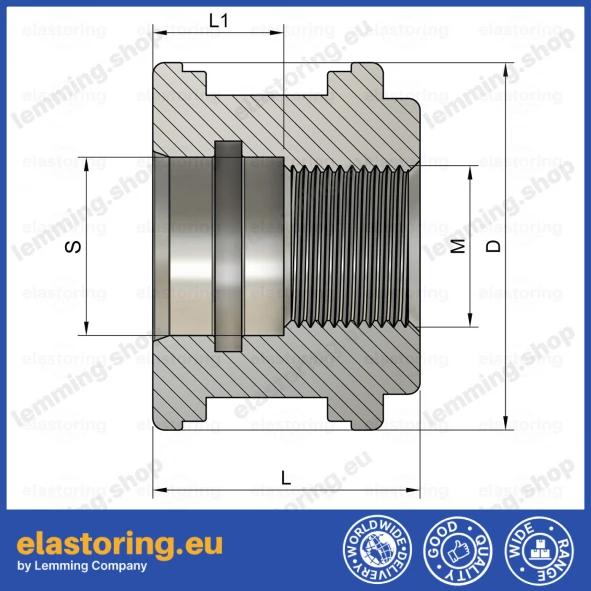

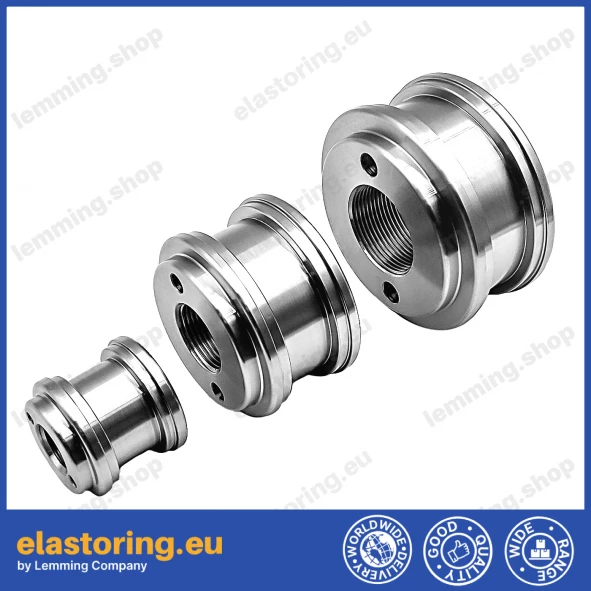

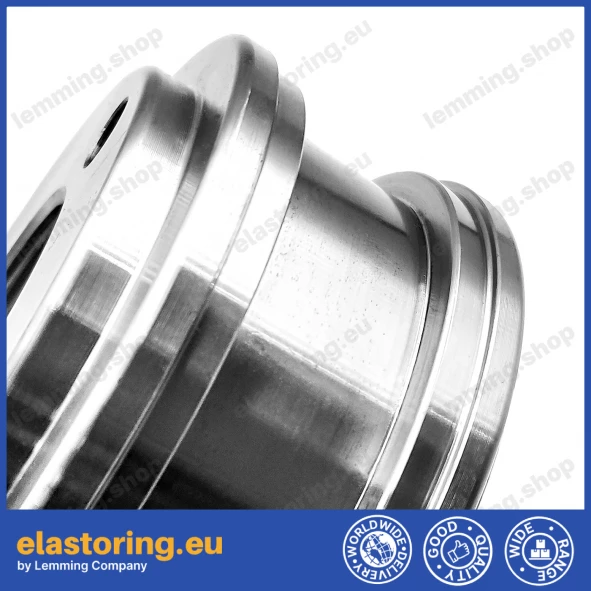

Piston SHM-SPT 40

The SHM SPT piston with a 40 mm diameter and internal thread M18x1.5, manufactured by SEHEM (Turkey), is designed for single- and double-acting hydraulic cylinders. Made of durable steel, it is used in applications with low to medium loads. The design supports easy seal replacement and is compatible with compact seals such as K18, TPM, L43, and KGD. The M18x1.5 thread provides a secure connection with the piston rod.

Technical specifications:

• Type: SHM SPT

• Outer diameter: 40 mm

• Internal thread: M18x1.5

• Material: steel

• Manufacturer: SEHEM (Turkey)

• Application: single- and double-acting cylinders

• Load range: low and medium

• Seal compatibility: K18, TPM, L43, KGD
