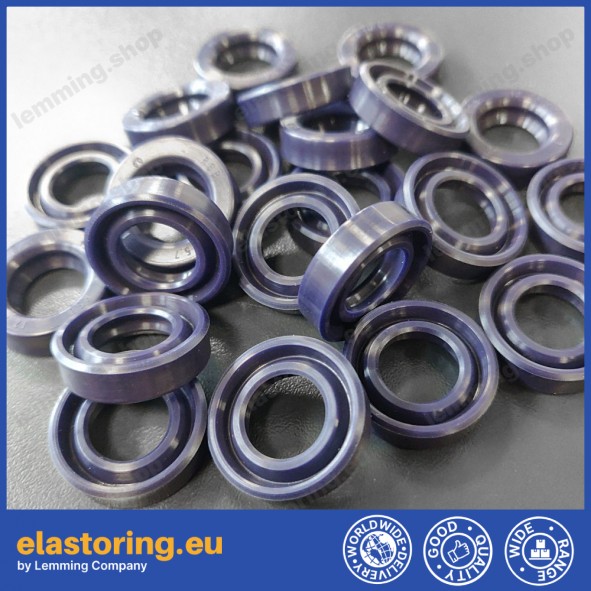

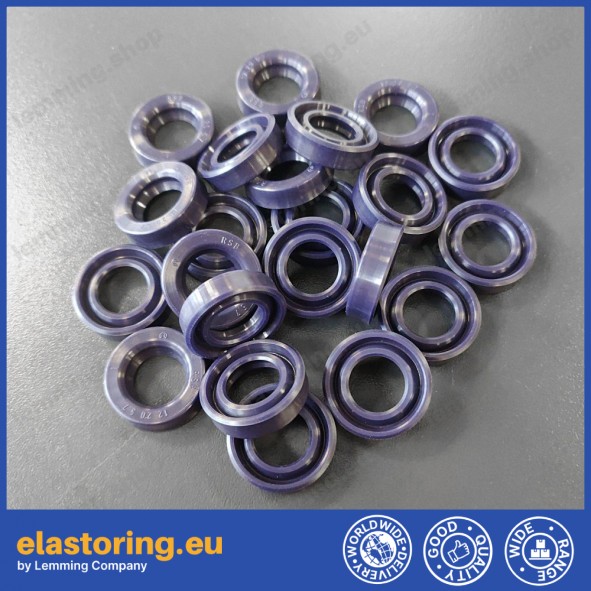

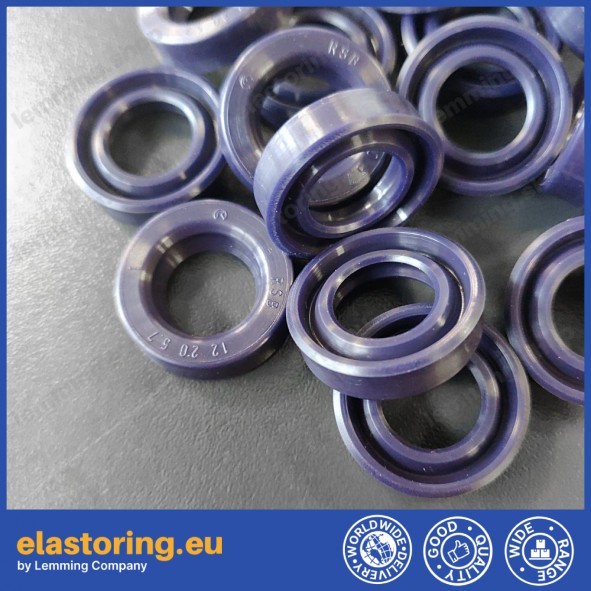

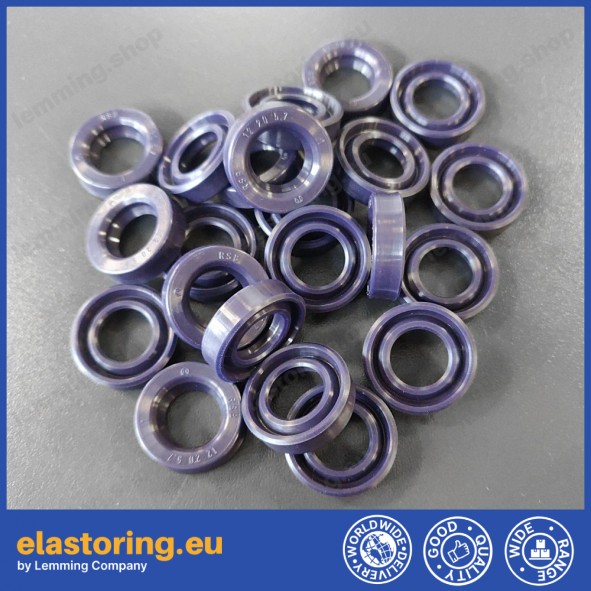

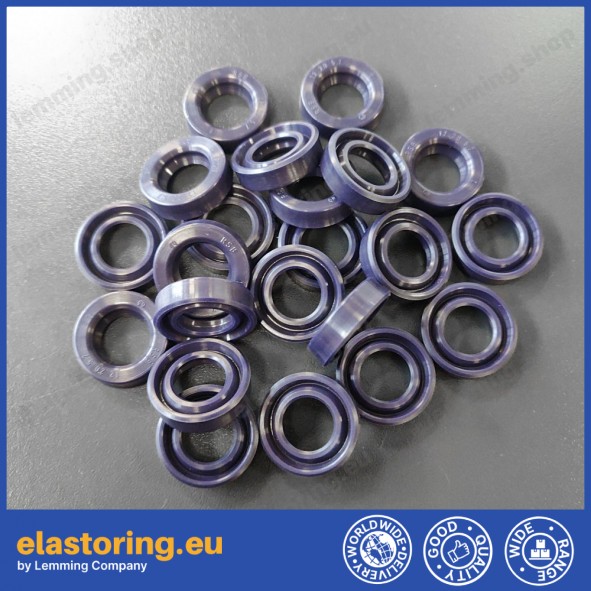

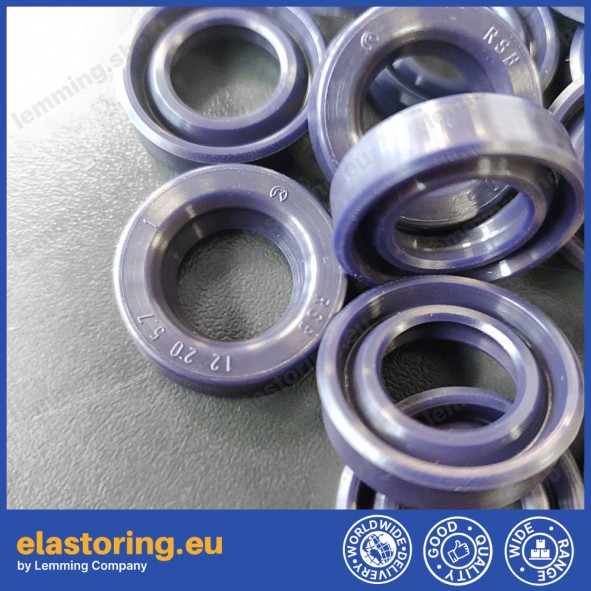

Rod seal RSB 12x20x5,7 PU

Name: Rod seal RSB 12x20x5,7 PU
Brand: Artic seals
SKU: 12750
Price: 30.00 EUR
Availability: InStock

Rod seal RSB 12x20x5,7 PU

Specifications

Hydraulic seals dimension
Rod diameter d (mm)	12
Groove Diameter D (mm)	20
Seal width h (mm)	5,7
Details
Pressure	< 400 bar
Seal type	RSB
Material type	PU
Material code	C0
Hardness Shore-A	93
Temperature	- 35°C ...+ 100°C

Stock: 220 pcs.
Brand: Artic seals
Model: RSB 0120 0200 057 C0
SKU: 12750

Product Views: 3140

6.99€ / pcs.

5 pcs. or more 2.10€/pcs.

10 pcs. or more 1.63€/pcs.

30 pcs. or more 1.06€/pcs.

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

The RSB ring is a rod seal of a single-acting hydraulic cylinder, which on the dynamic side presents a multifunctional double lip.

Product advantages:

reduces stick-slip effects thanks because it keeps oil between the secondary lip and the main one
stops any external impurities
faces the material shrinkage at low temperatures
acts as a stabilizer

The selection of these sealing elements takes place by means of dimensions: inside diameter 12 mm, outer diameter 20 mm, sealing height 5,7 mm. It should be remembered that the width of the groove for these rings is slightly wider than the height of the gasket.

The sealing material is Polyurethane C0 (93 Shore-A hardness), which is characterized by exceptional properties in terms of resistance to compression, abrasion and hydrolysis compared to conventional TPU based on polyester. Working temperature -35°C ... + 100°C, short-term up to + 110°C.

Hydraulic seals dimension
Rod diameter d (mm)	12
Groove Diameter D (mm)	20
Seal width h (mm)	5,7
Details
Pressure	< 400 bar
Seal type	RSB
Material type	PU
Material code	C0
Hardness Shore-A	93
Temperature	- 35°C ...+ 100°C
