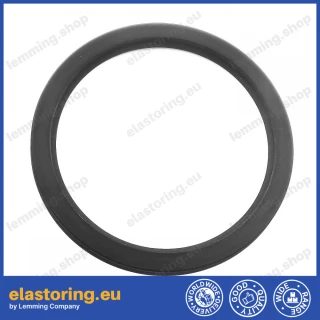

Rotary seal RTAA 115x135x10 NBR
Rotary seal RTAA 115x135x10 NBR
- Code: 48010958
- In Stock: 265 pcs.
Updated: 14.08.2026 14:45
| Rotary seal dimension | |
| Shaft Diameter (mm) | 115 |
| Housing diameter (mm) | 135 |
| Width 1 | 10 |
| Details | |
| Seal type | C5 |
| Material type | NBR |
- Brand: ALP
- SKU: 33940
11.30€/pcs.
5 pcs. or more 10.68€/pcs.
10 pcs. or more 9.46€/pcs.
25 pcs. or more 8.09€/pcs.
50 pcs. or more 7.74€/pcs.
100 pcs. or more 7.04€/pcs.
Interchangeable
Description
The RTAA 115×135×10 NBR rotation ring is an alternative to the C5 sealing profile used in slew columns and rotating joints of construction machinery.
Made of NBR elastomer, it operates in oil-lubricated housings and is intended for applications with low rotational speed.
It provides radial sealing and protects the internal lubrication space from contamination and leakage.
Technical properties
-
Material: NBR
-
Type: rotation ring seal (C5 replacement)
-
Application: slew column sealing, rotary joints, low-speed rotating assemblies
-
Installation: housings designed for C5-type seals
Dimensions
-
Inner diameter (d): 115 mm
-
Outer diameter (D): 135 mm
-
Height (H): 10 mm
-
Inch format (d×D×H): 4.53" × 5.31" × 0.39"
