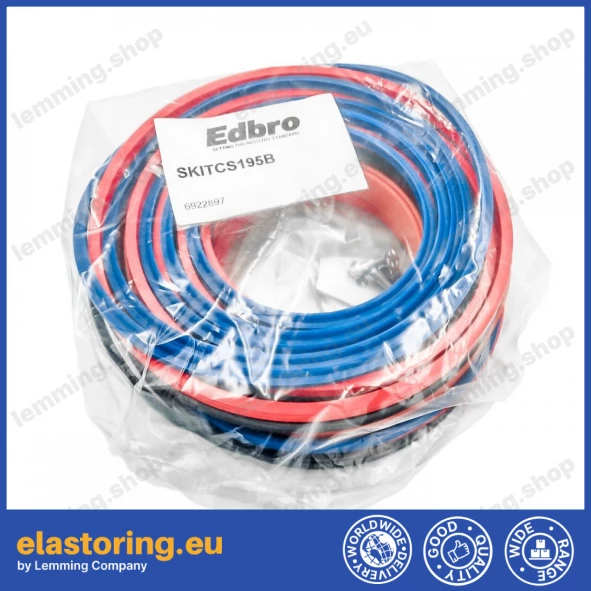

Seals kit CS19/5 SKITCS195B

Original repair kit for a 5-stage telescopic cylinder from the manufacturer EDBRO CS19 series.

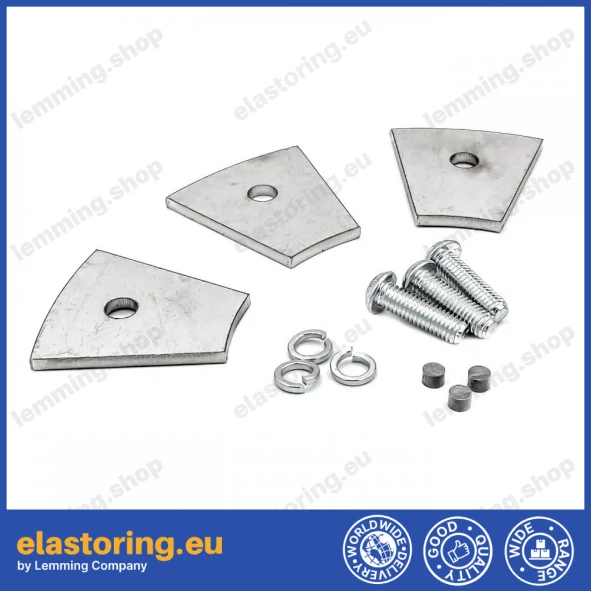

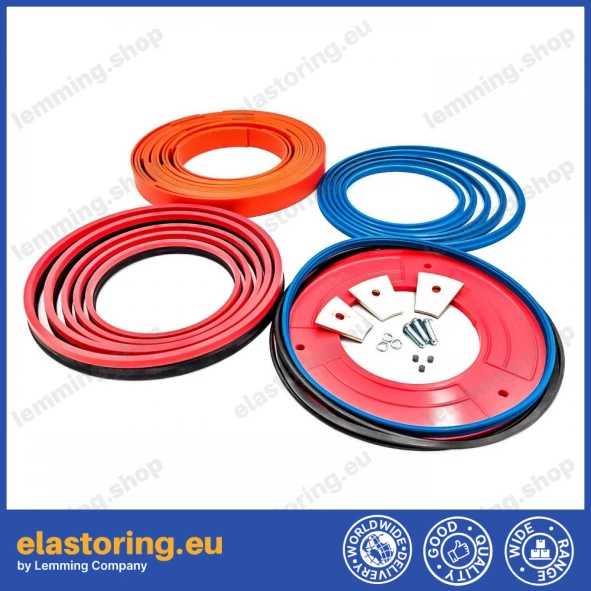

The kit includes: seals, scrapers, guide rings, O-rings, static seals, bottom cover, fasteners.

For rod 117.00 mm:

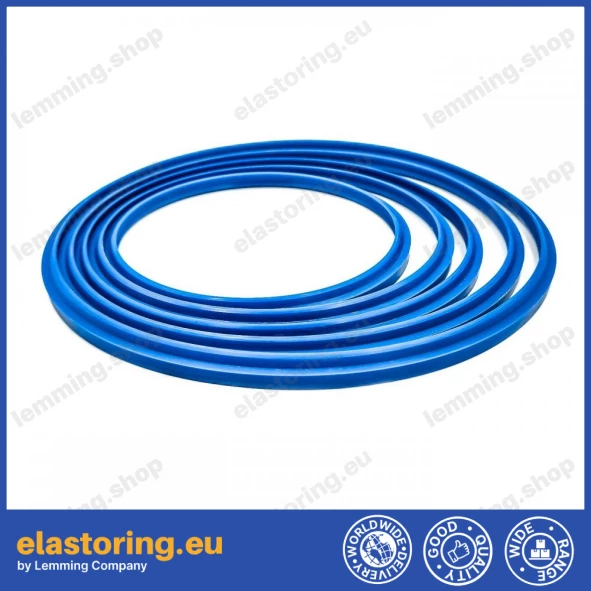

Scraper ring EWM117/01 (44488) - 1 pc.(117x127x5.8/8.8)

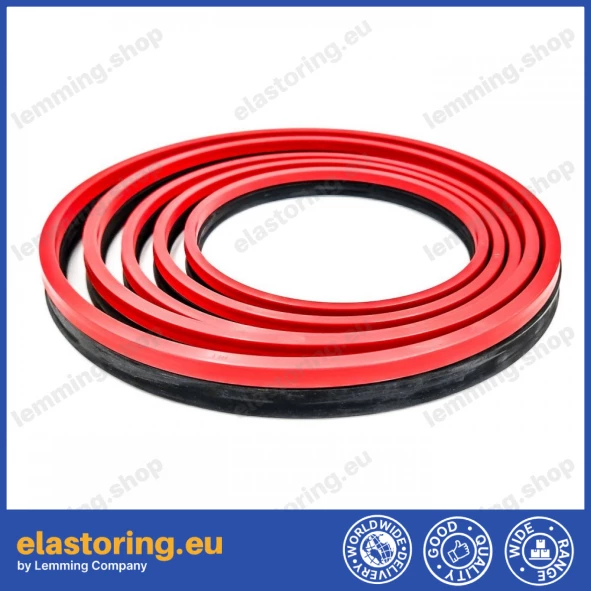

Piston seal SAM117/01 (44497 + 47702) - 1 pc.(117x127x14)

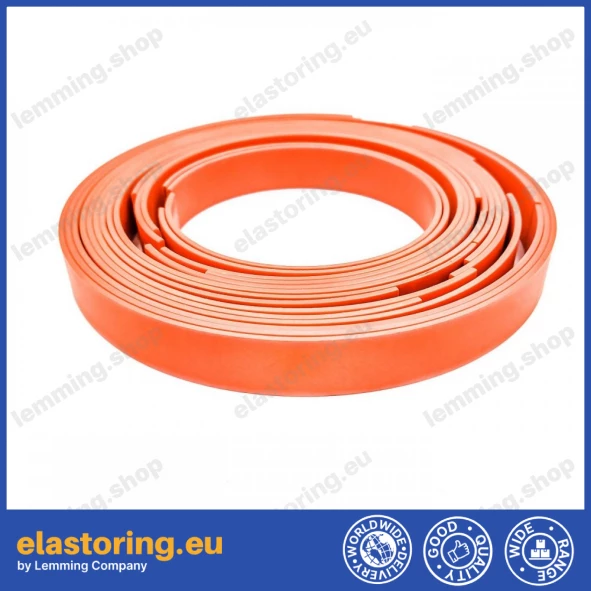

Guide ring BRH117/04/LF - 2 pcs.

For rod 136.00 mm:
Scraper ring EWM136/01 (44489) - 1 pc. (136x146x5.8/8.8)
Piston seal SAM136/03 (44489 + 47703) - 1 pc. (136x146x14)
Guide ring BRH136/04/LF - 3 pcs.

For rod 155.00 mm:
Scraper ring EWM155/01 (44490) - 1 pc. (155x165x5.8/8.8)
Piston seal SAM155/01 (44499 + 47704) - 1 pc. (155x165x14)
Guide ring BRH155/04/LF - 3 pcs.

For rod 176.00 mm:
Scraper ring EWM176/01 (44491) - 1 pc. (176x186x5.8/8.8)
Piston seal SAM176/01 (44500 + 47751) - 1 pc. (176x188x16.5)
Guide ring BRH176/02/LF - 3 pcs.

For rod 198.00 mm:
Scraper ring EWM198/01 (44492) - 1 pc. (176x186x5.8/8.8)
Piston seal SAM198/01 (44501 + 47763) - 1 pc. (176x188x16.5)
Guide ring BRH198/02/LF - 3 pcs.

Static ring:

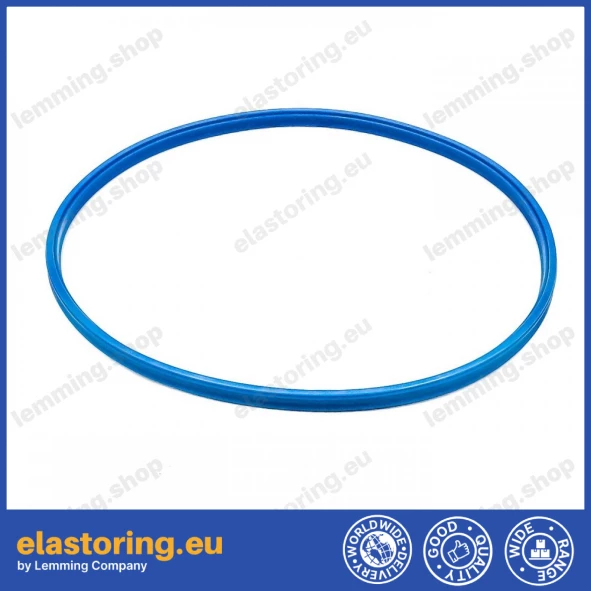

Hallite 48503 EDBRO

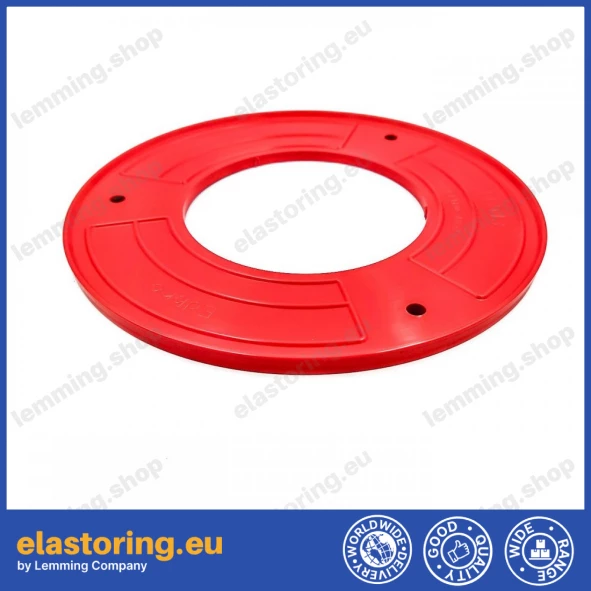

Bottom cover:
Hallite 48504 (EC543)

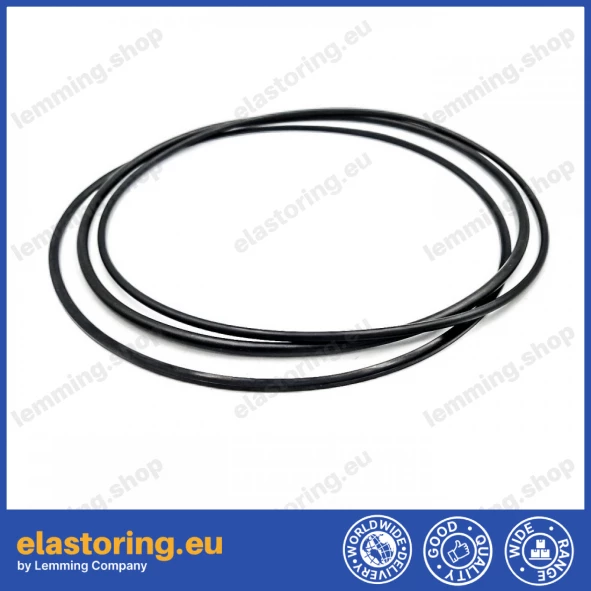

O-rings (2 pcs.)
Support ring (1 pc.)
