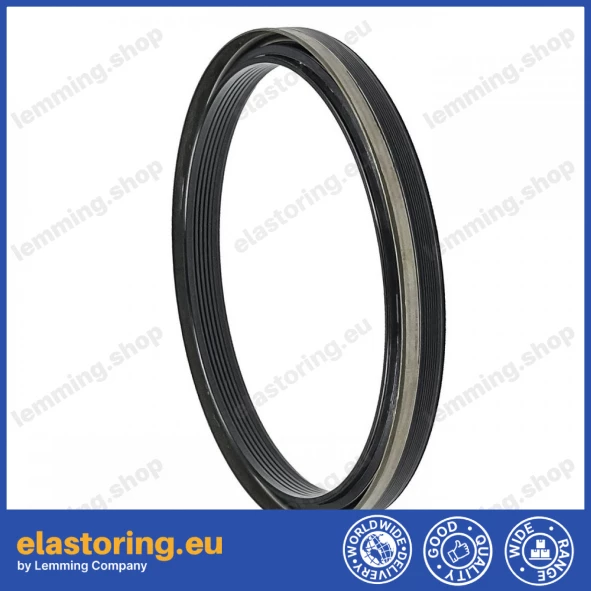

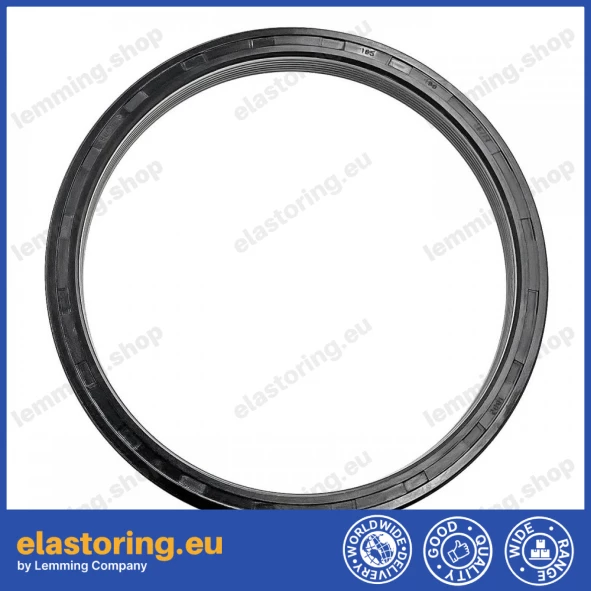

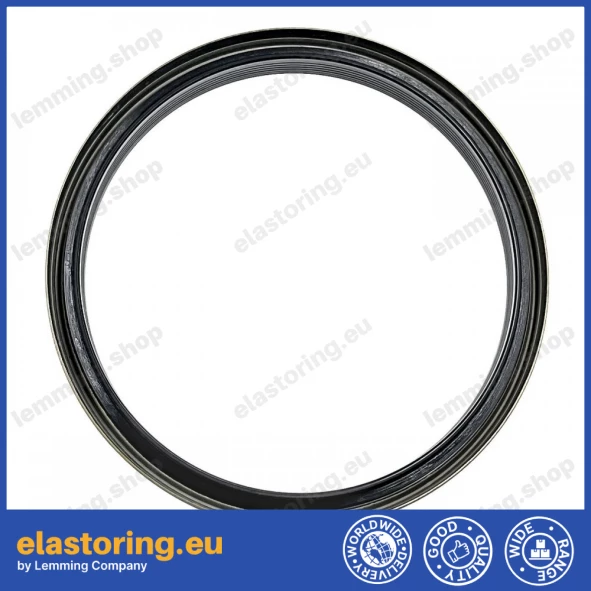

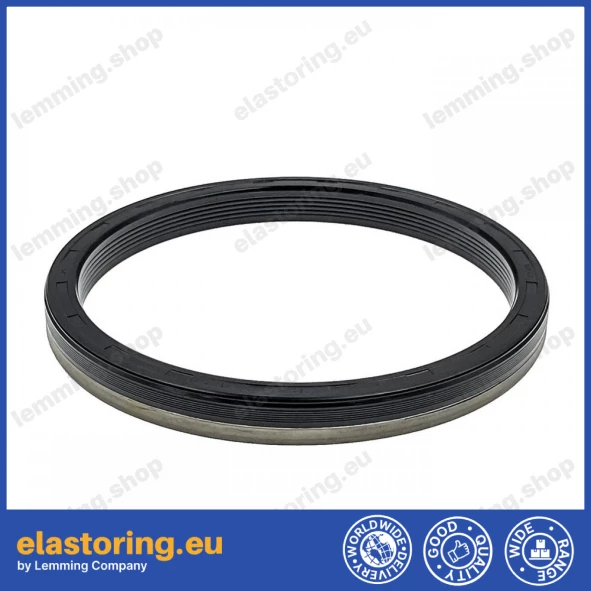

Wheel hub oil seal RWDR 165x190x16/17 NBR

Cassette seal RWDR Kassette 165×190×16/17 NBR by Suptex (Turkey) is a modular sealing unit designed for wheel hubs, gearboxes and reducers in agricultural and construction machinery.
The integrated steel running surface and spring-loaded sealing lip ensure reliable operation, while the grease-filled labyrinth provides strong protection against dirt and mechanical wear.

Dimensions (mm / inch):

• Inner diameter (d1): 165 mm / 6.50''

• Outer diameter (D): 190 mm / 7.48''

• Height (B): 16/17 mm / 0.63''/0.67''

Technical specifications:

• Material: NBR (acrylonitrile-butadiene rubber) + steel

• Design: RWDR cassette seal type 3

• Max peripheral speed: ≤ 4 m/s

• Operating temperature: up to +80°C

• Operating pressure: ≤ 0.05 MPa
