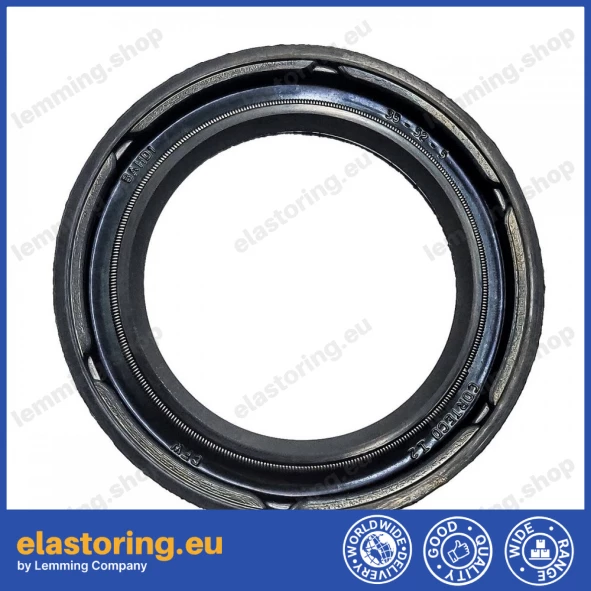

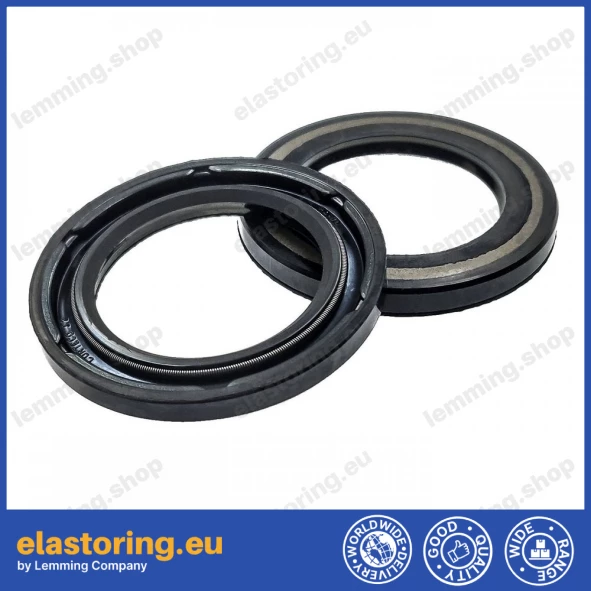

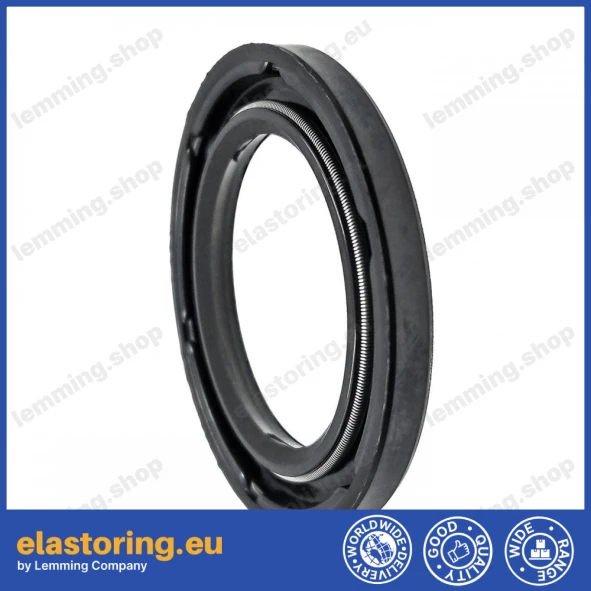

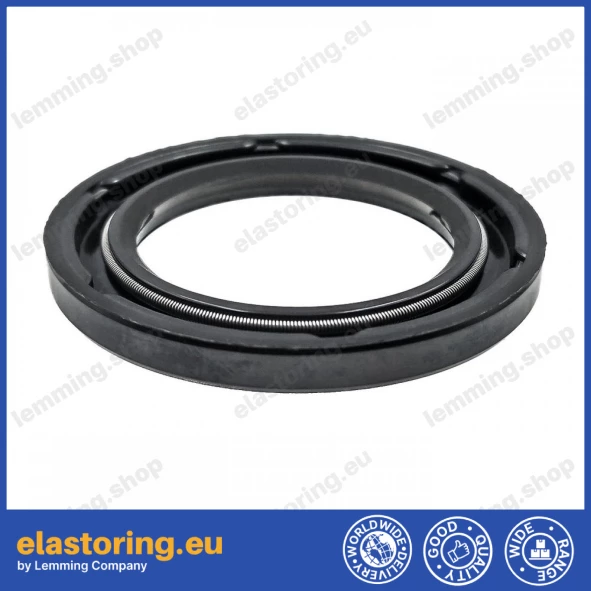

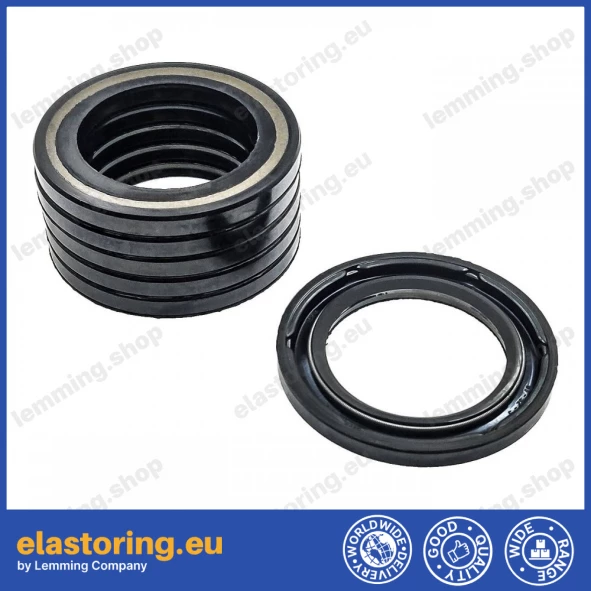

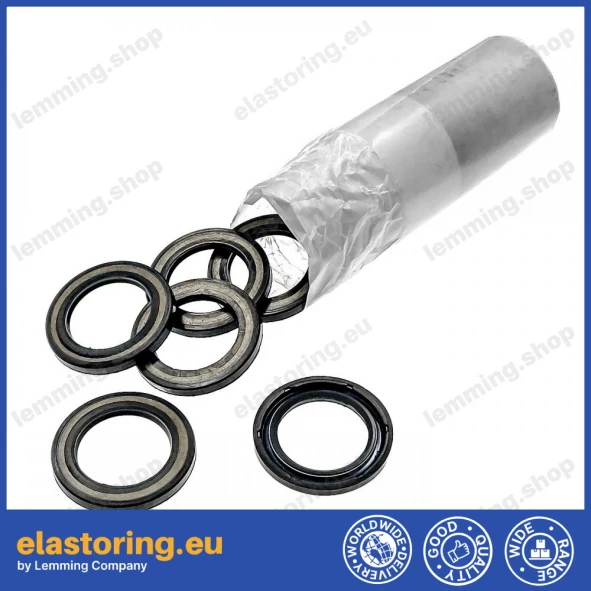

High pressure oil seal 35x52x5 BAHD NBR [633B3197]

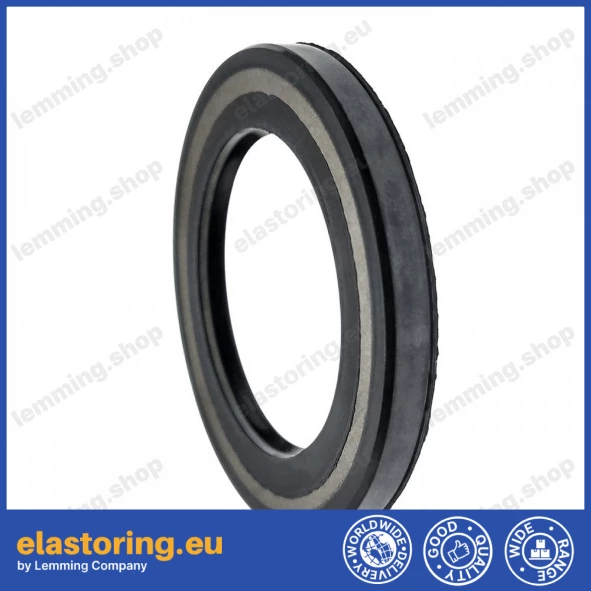

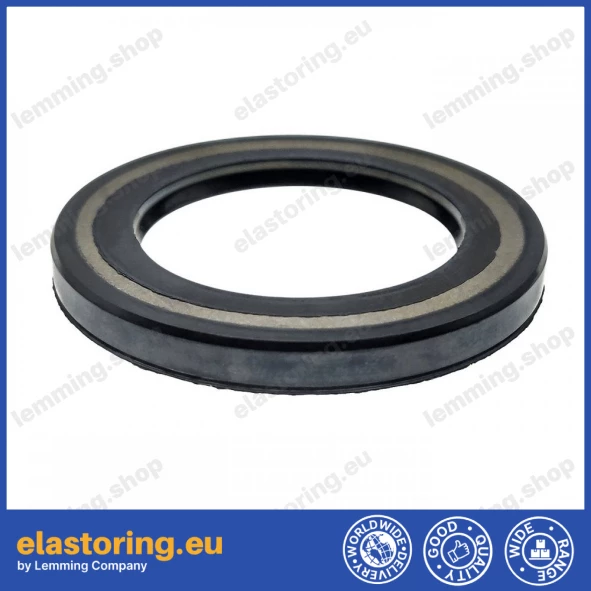

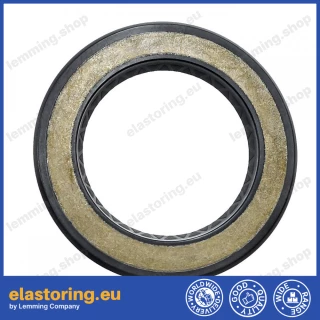

The high-pressure simmering 35x52x5 BAHD NBR [633B3197] is a specialised sealing element designed for use on shafts in hydraulic systems, especially in hydrokinetic drives where maintaining tightness under high pressure is essential. It features an open metal insert on the front side, which creates a stable contact surface and prevents deformation under load. Made of nitrile rubber (NBR), this material is resistant to hydraulic oils and external factors.

Technical specifications:

• Working pressure: up to 100 bar (max 150 bar)
• Linear speed: up to 2 m/s
• Operating temperature: –30 °C to +105 °C
• Material: NBR (nitrile rubber)
• Inner diameter: 35 mm (≈ 1.38 in)
• Outer diameter: 52 mm (≈ 2.05 in)
• Height: 5 mm (≈ 0.20 in)

Seals marked BAHD, BAHDSN and BAKHDSN are interchangeable and can be used in the same applications.
