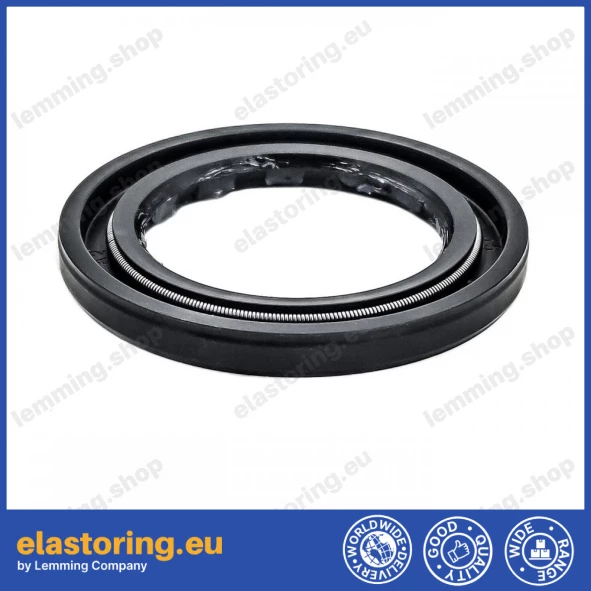

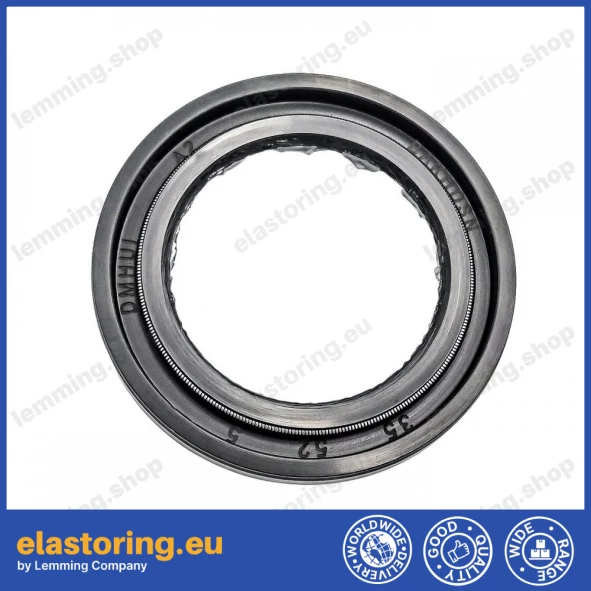

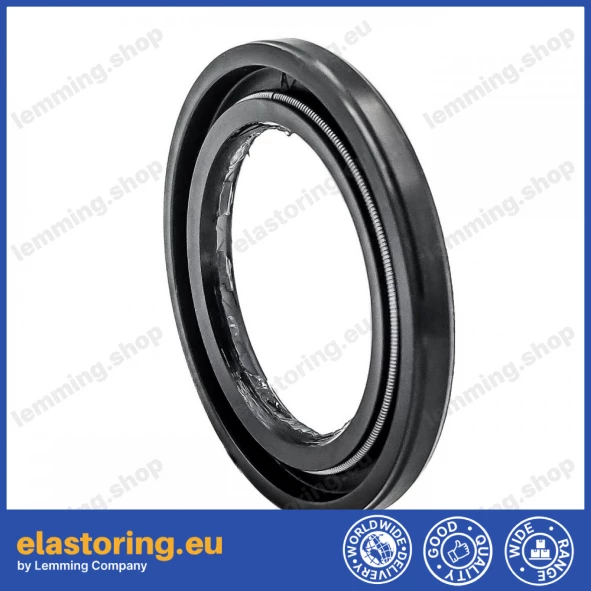

High pressure oil seal 35x52x5 BAKHDSN NBR

The high-pressure seal 35x52x5 BAKHDSN NBR is a specialised sealing element designed for use on shafts in hydraulic systems, particularly in hydrokinetic drives where high pressure resistance is required.

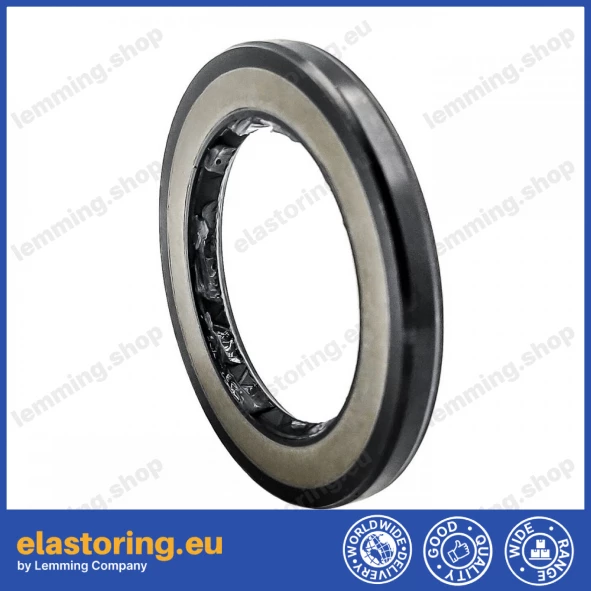

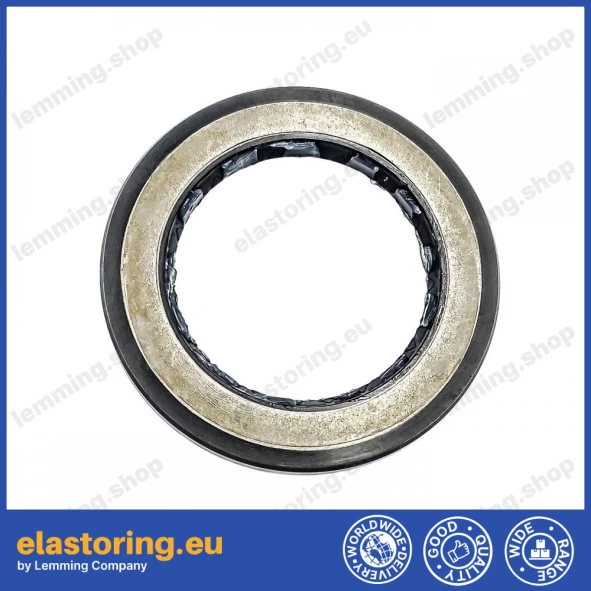

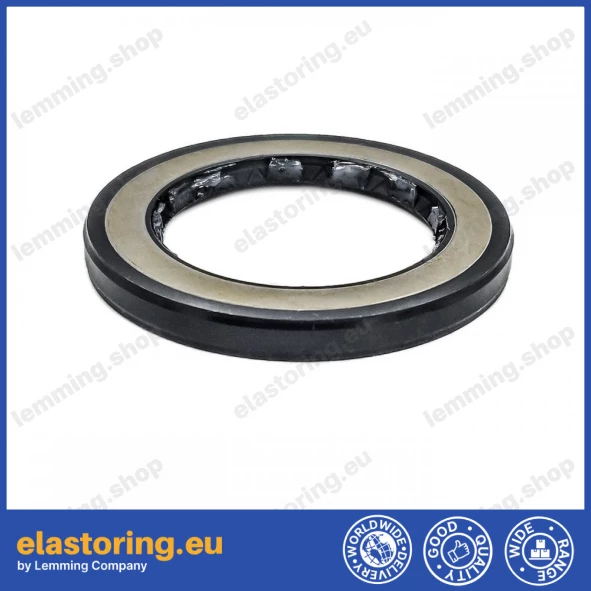

It features an open metal insert on the front side, providing a stable contact surface that prevents deformation under load.
Made of nitrile rubber (NBR), it offers excellent compatibility with hydraulic oils and lubricants.

Technical specifications:
• Working pressure: up to 100 bar (max 150 bar)
• Linear speed: up to 2 m/s
• Operating temperature: –30 °C to +105 °C
• Material: NBR (nitrile rubber)
• Inner diameter: 35 mm (≈ 1.38 in)
• Outer diameter: 52 mm (≈ 2.05 in)
• Height: 5 mm (≈ 0.20 in)

Seals marked BAHD, BAHDSN and BAKHDSN are interchangeable and can be used in the same applications.
