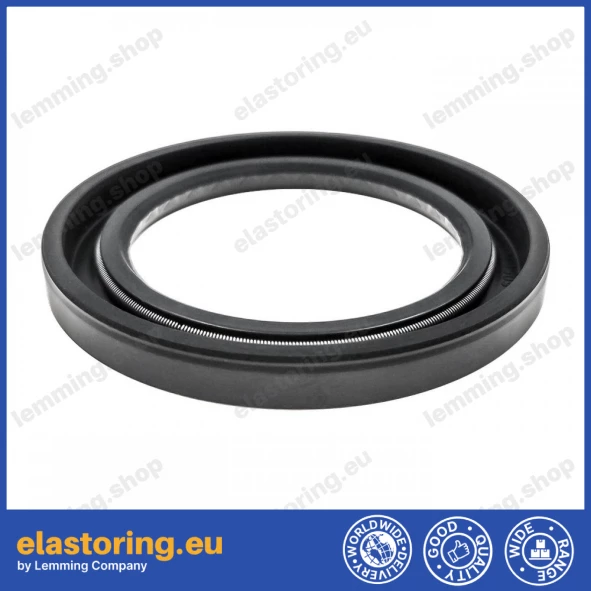

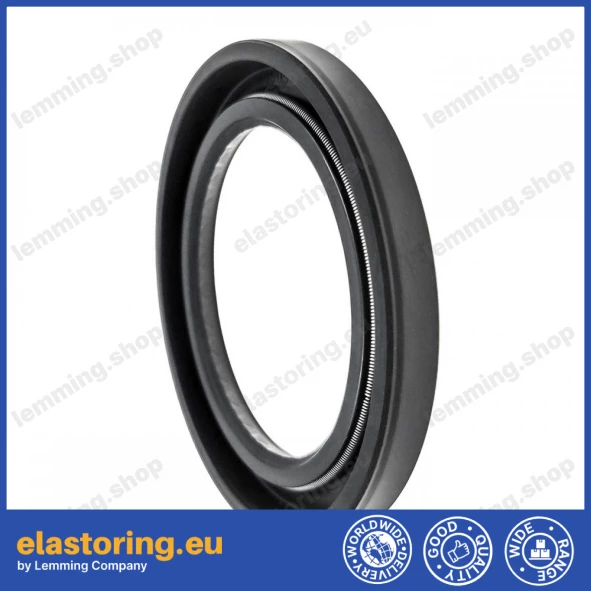

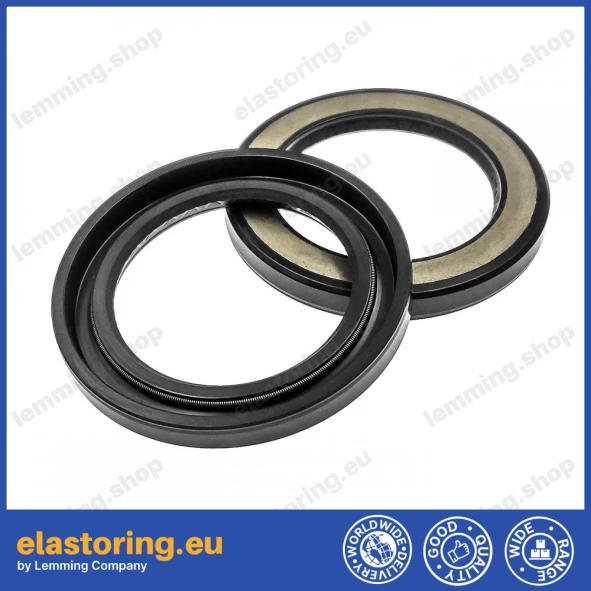

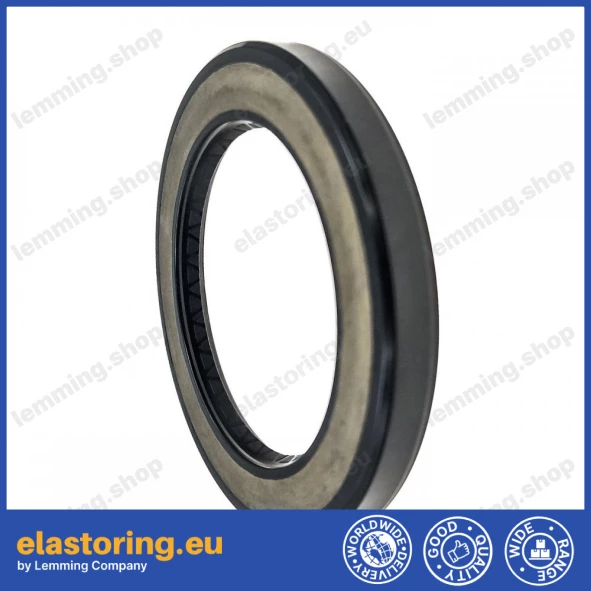

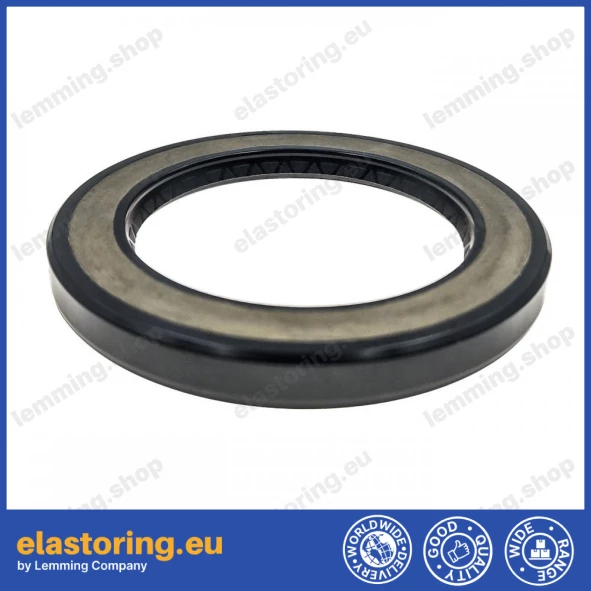

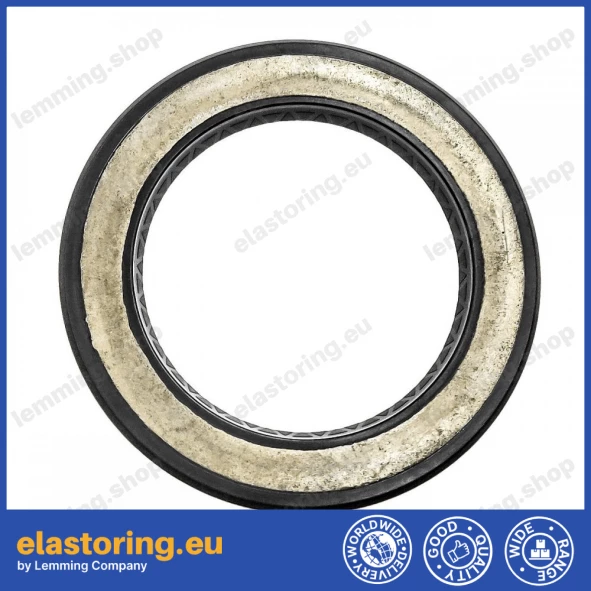

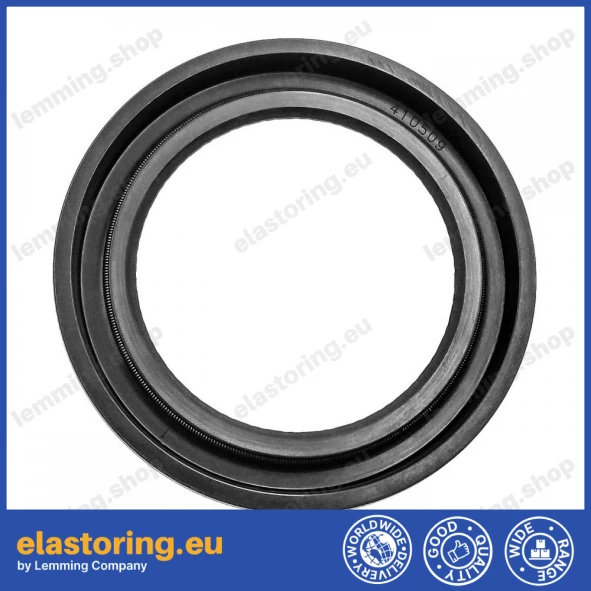

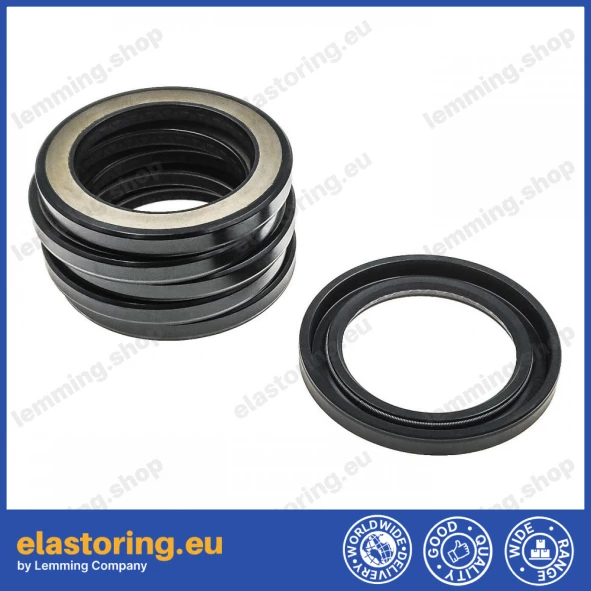

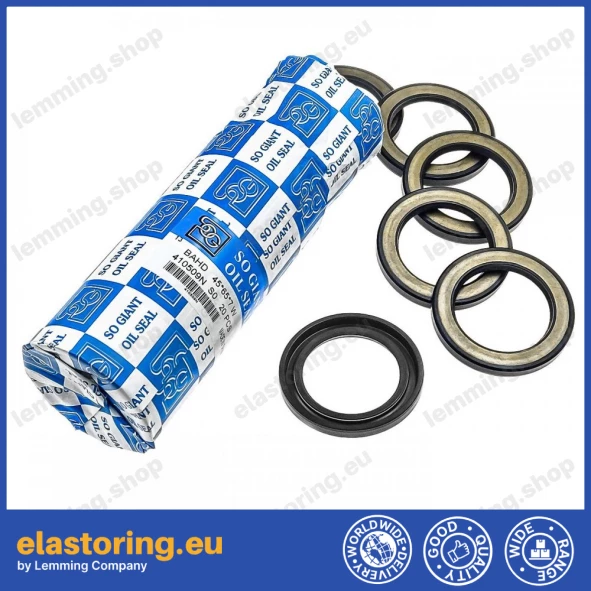

High pressure oil seal 45x65x7 BAHD NBR

High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
High pressure oil seal 45x65x7 BAHD NBR
  • Code: 410509N
  • In Stock: 558 pcs.
Updated: 05.12.2025 17:30
Rotary seal dimension
Shaft Diameter (mm) 45
Housing diameter (mm) 65
Width 1 7
Details
Pressure P > 10Bar
Seal type BAHD
Material type NBR
  • Brand: SOG
  • SKU: 13281
$10.41/pcs.
5 pcs. or more $8.98/pcs.
10 pcs. or more $7.64/pcs.
25 pcs. or more $6.17/pcs.
50 pcs. or more $5.81/pcs.
100 pcs. or more $5.09/pcs.

Description

The high-pressure oil seal 45x65x7 BAHD made of NBR (nitrile rubber) is used in hydraulic motors and hydrokinetic drives.
It features a front-side open metal insert for dimensional stability and pressure resistance. Compatible with BAHDSN and BAKHDSN types.

Technical specifications:

  • Type: BAHD

  • Material: NBR (nitrile rubber)

  • Operating pressure range: average 100 bar, maximum 150 bar

  • Max linear speed: 2 m/s

  • Application: hydraulic motors, hydrokinetic drives

  • Interchangeable with: BAHDSN, BAKHDSN

Dimensions:
Inner diameter: 45 mm (1.77 inch)
Outer diameter: 65 mm (2.56 inch)
Height: 7 mm (0.28 inch)
