  • Code: 1903012
  • In Stock: 96 pcs.
Updated: 05.12.2025 17:27
Rotary seal dimension
Shaft Diameter (mm) 45
Housing diameter (mm) 65
Width 1 7
Width 2 6
Details
Pressure P > 10Bar
Seal type BAKHDSN
Material type NBR
$14.20/pcs.
5 pcs. or more $13.63/pcs.
10 pcs. or more $12.16/pcs.
25 pcs. or more $10.50/pcs.
50 pcs. or more $10.07/pcs.
100 pcs. or more $9.23/pcs.

Description

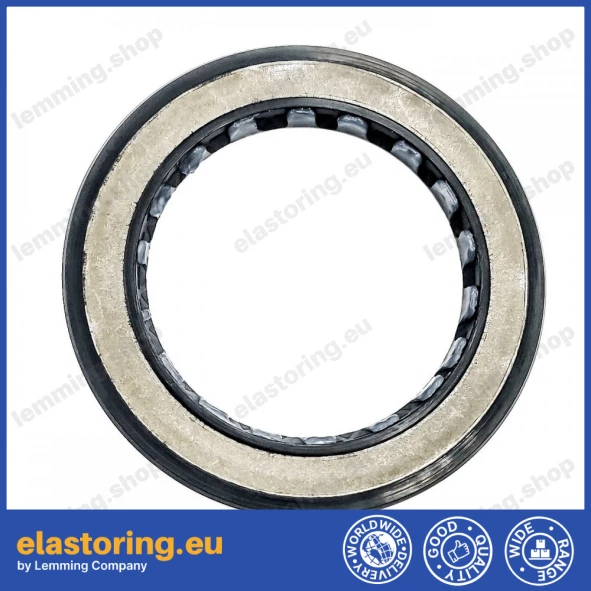

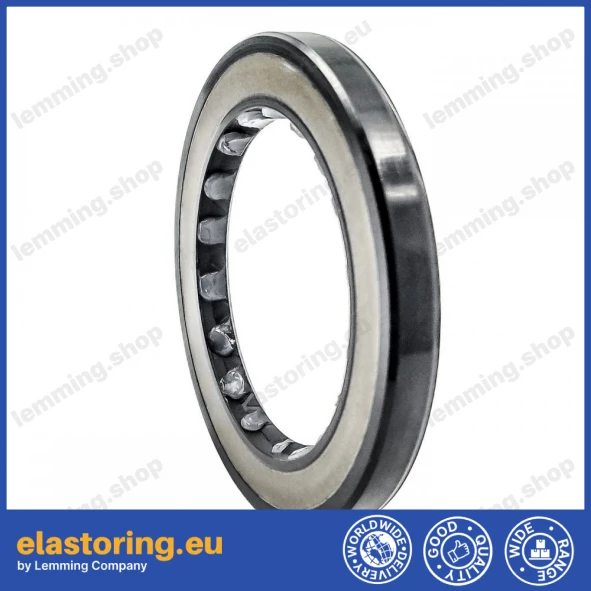

The high-pressure shaft seal 45x65x7/6 BAKHDSN made of NBR (nitrile rubber) is designed for use in hydraulic motors and hydrokinetic drives. Its open metal insert on the face side provides structural stability and pressure resistance. Seals marked BAHD, BAHDSN, and BAKHDSN are interchangeable in equivalent applications.

Technical specifications:

  • Type: BAKHDSN

  • Material: NBR (nitrile rubber)

  • Operating pressure range: average 100 bar, maximum 150 bar

  • Max linear speed: 2 m/s

  • Application: hydraulic motors, hydrokinetic drives

  • Interchangeable with: BAHD, BAHDSN

Dimensions:
Inner diameter: 45 mm (1.77 inch)
Outer diameter: 65 mm (2.56 inch)
Height: 7/6 mm (0.28/0.24 inch)
