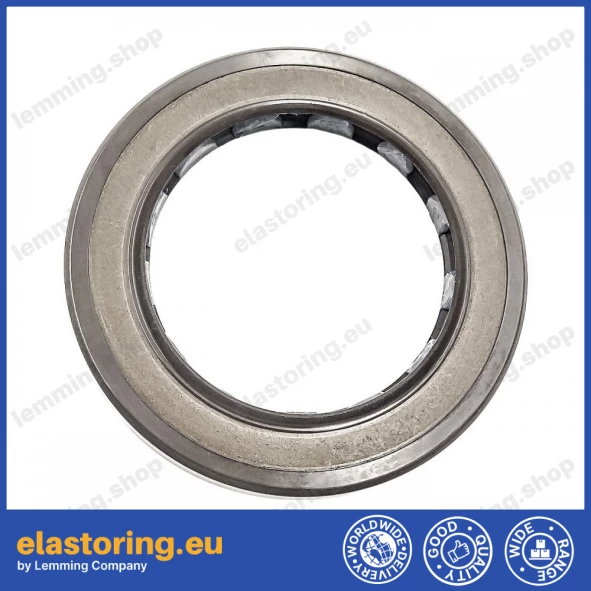

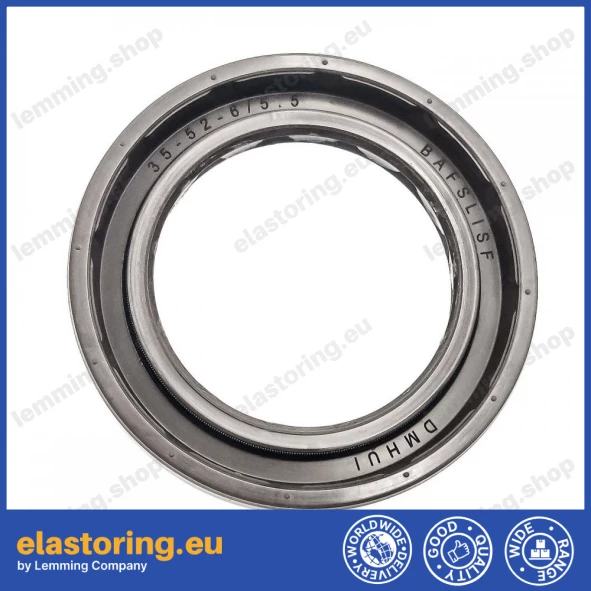

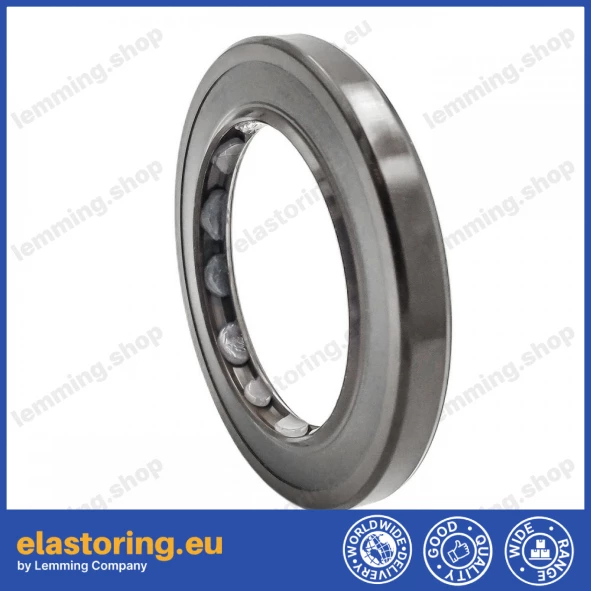

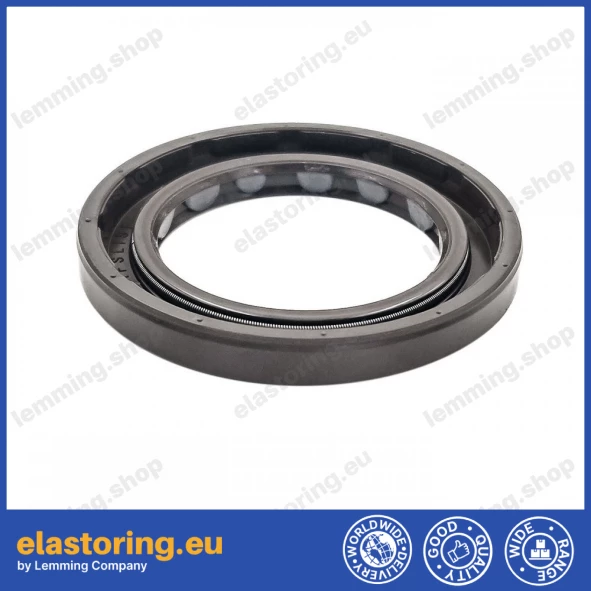

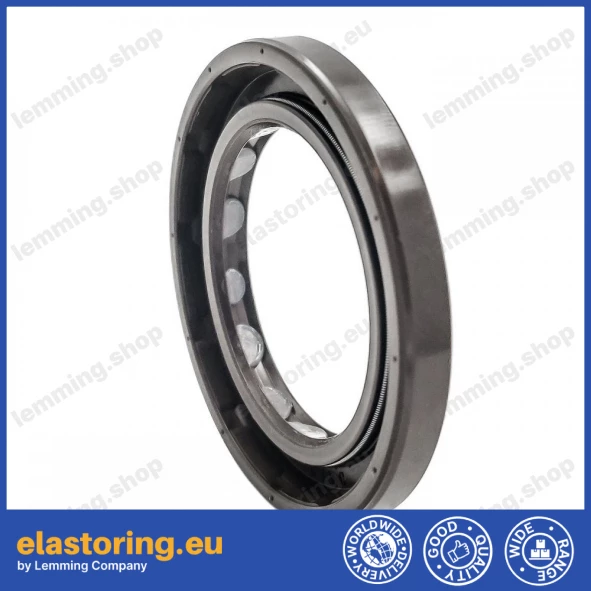

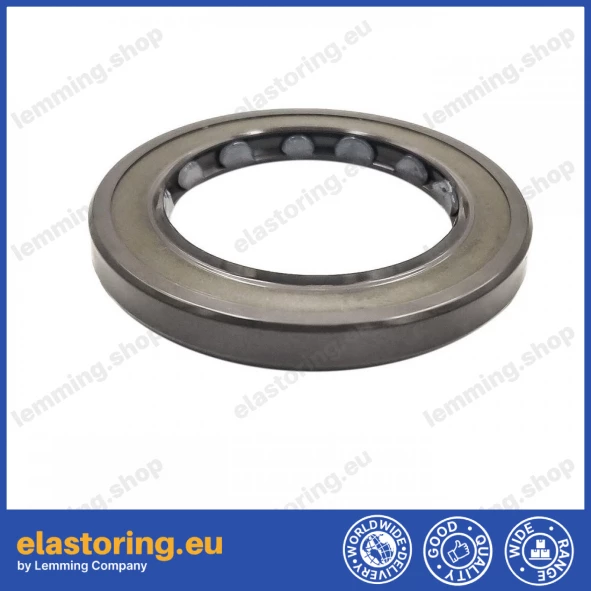

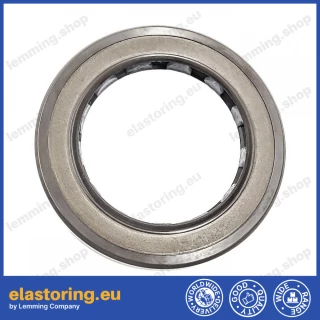

Pressure oil seal 35x52x6/5,5 BAFSL1SF FPM

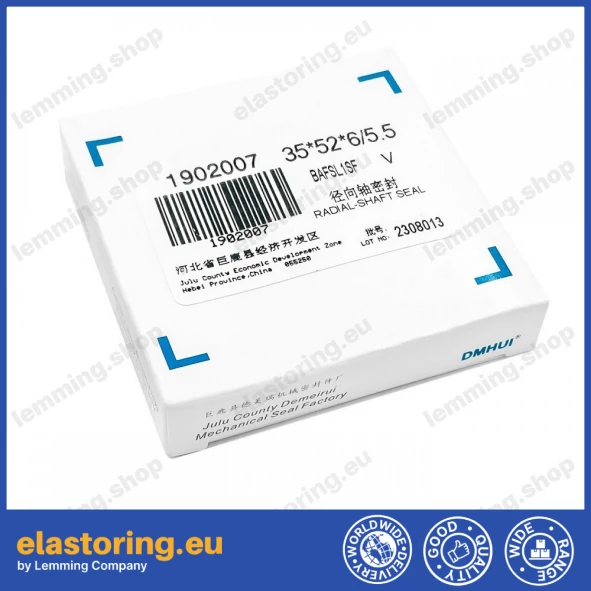

Oil seal 35×52×6/5.5 BAFSL1SF FPM, DMHUI code 1902007, is a rotary shaft seal made of fluoroelastomer (FPM/FKM).
Designed for hydraulic pumps, motors, gear systems and industrial machinery operating under elevated pressure and temperature.
The BAFSL1SF profile includes a metal case and reinforced sealing lip with an additional protective edge.

Technical data:

• Inner diameter (d): 35 mm (1.378 in)

• Outer diameter (D): 52 mm (2.047 in)

• Height (H): 6 / 5.5 mm (0.236 / 0.216 in)

• Material: FPM/FKM (fluoroelastomer)

• Type: BAFSL1SF – rotary shaft seal for elevated pressure

• Temperature range: –25 °C to +160 °C

• Maximum pressure: up to approx. 25 bar

• Applications: hydraulic pumps, hydraulic motors, gearboxes, construction and industrial machinery
