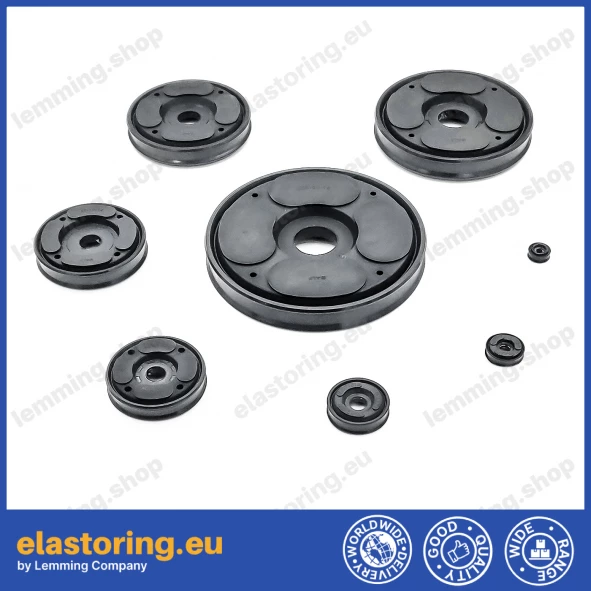

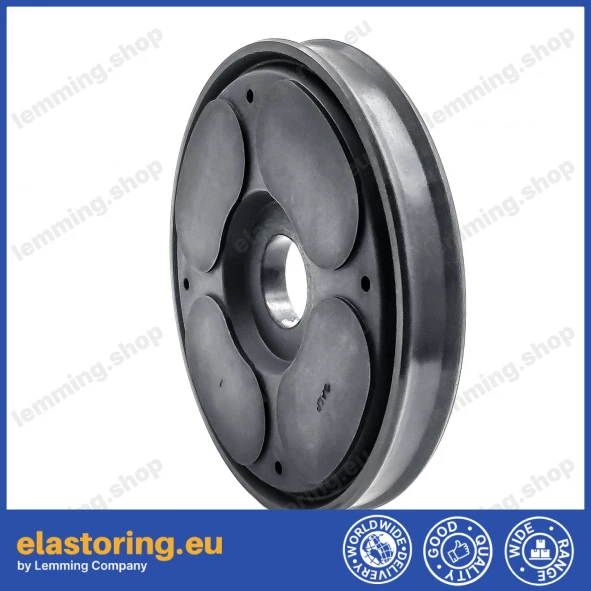

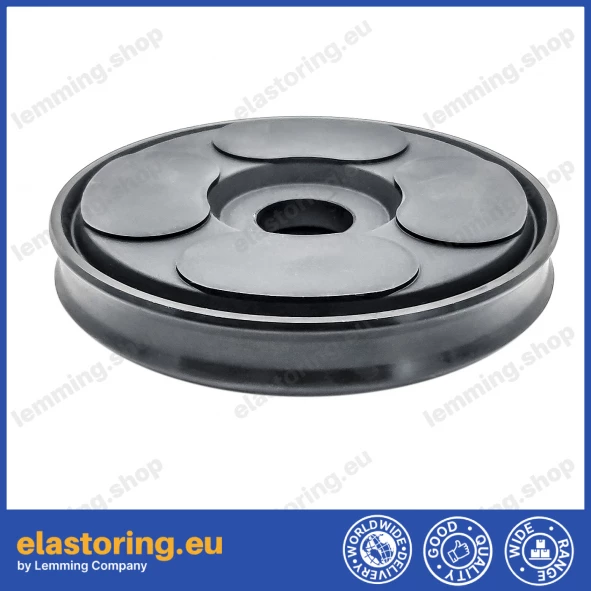

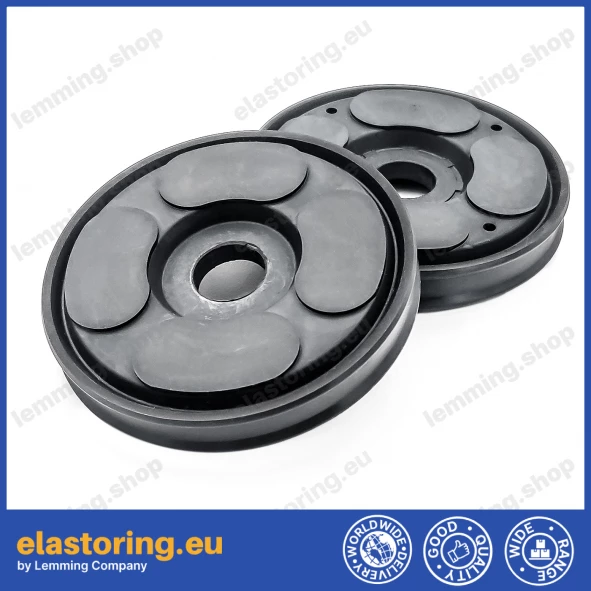

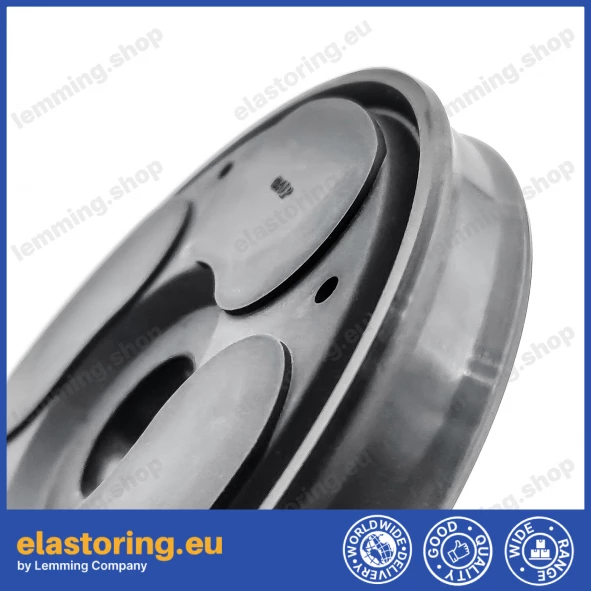

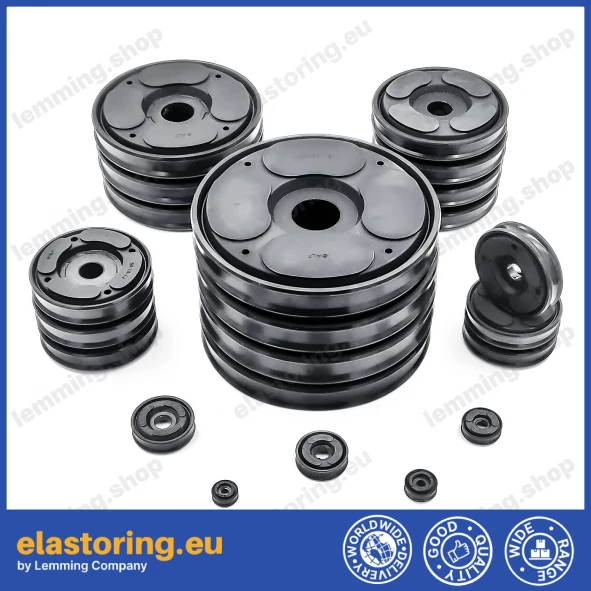

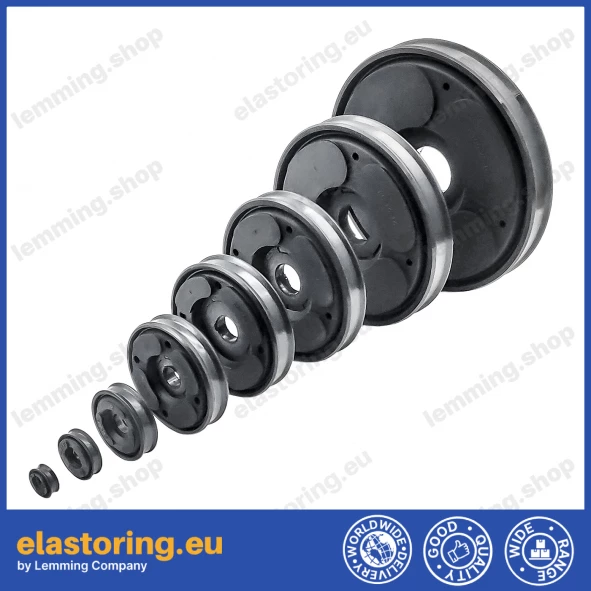

Pneumatic seal 10x3x5 A805 NBR

A805-010 (10x3x5) is a pneumatic piston seal for double-acting pneumatic cylinders.
It consists of an aluminum support ring with a bonded NBR sealing layer, ensuring easy installation and stability during operation.

Designed for use with treated, lubricated compressed air, the A805 profile is a standard solution for classic pneumatic applications.

Technical details:

• Type: piston seal (double acting)

• Material: NBR + aluminum

• Outer diameter (D): 10 mm

• Inner diameter (d): 3 mm

• Height (H): 5 mm

• Inch size: 0.394" x 0.118" x 0.197"

• Media: lubricated compressed air

• Max pressure: 12 bar

• Temperature range: –30°C to +105°C

• Max speed: 1 m/s
