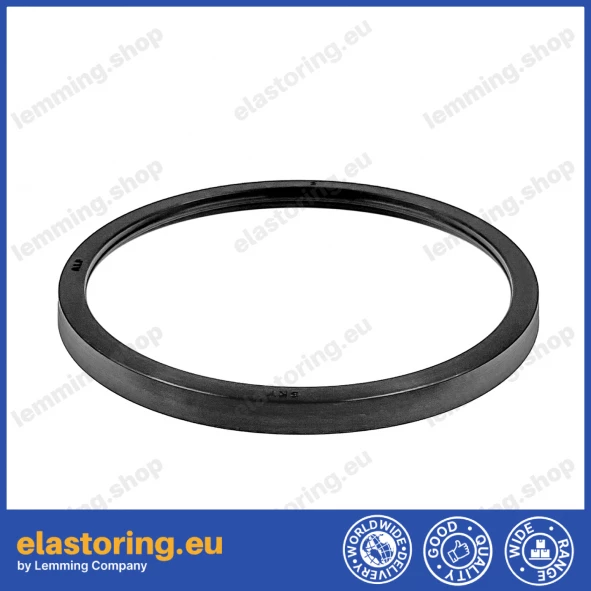

Rotary seal RTAA 110x130x10 NBR
Rotary seal RTAA 110x130x10 NBR
- Code: 48010959
- In Stock: 320 pcs.
Updated: 22.06.2026 11:30
| Rotary seal dimension | |
| Shaft Diameter (mm) | 110 |
| Housing diameter (mm) | 130 |
| Width 1 | 10 |
| Details | |
| Seal type | C5 |
| Material type | NBR |
- Brand: ALP
- SKU: 33941
11.03€/pcs.
5 pcs. or more 10.36€/pcs.
10 pcs. or more 9.15€/pcs.
25 pcs. or more 7.80€/pcs.
50 pcs. or more 7.45€/pcs.
100 pcs. or more 6.77€/pcs.
Interchangeable
..
59.29€
In Stock: 2
Description
The RTAA 110×130×10 NBR rotation ring is a radial sealing element used in slew columns and low-speed rotating joints of construction and industrial machinery. Made of NBR elastomer, it operates in oil-lubricated housings and serves as a replacement for C5-type rotary seals. It protects the lubrication chamber from contamination and minimizes leakage.
Technical properties
-
Material: NBR
-
Type: rotary ring seal (C5 replacement)
-
Application: slew columns, rotary joints, low-speed rotation
-
Fits C5-type housing geometry
Dimensions
-
Inner diameter (d): 110 mm
-
Outer diameter (D): 130 mm
-
Height (H): 10 mm
-
Inch format (d×D×H): 4.33" × 5.12" × 0.39"
