Wiper Z-07 55x65x4 PU+Stal IVORY

Code: 48010892
In Stock: 76 pcs.

Updated: 06.11.2025 13:14

Wipers dimension
Inside diameter d (mm)	55
Outside diameter D (mm)	65
Width h	4
Details
Seal type	Z-07
Material type	PU Stal

Brand: OEM
SKU: 33726

16.55€/pcs.

5 pcs. or more 4.02€/pcs.

10 pcs. or more 3.55€/pcs.

30 pcs. or more 2.97€/pcs.

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Similar

Quickview

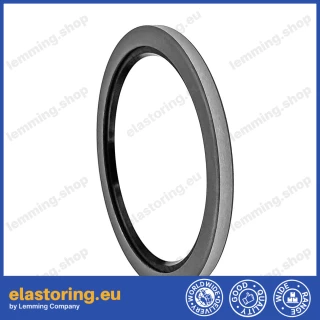

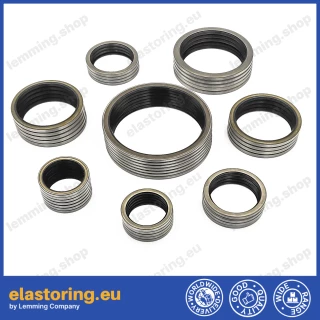

Wiper VAY 55x65x4 NBR

9.46€

In Stock: 284

Add to Cart

Add to Wish List Compare this Product

Buy Now Ask Question

Description

The Z-07 type wiper ring is used as protection against the ingress of contaminants, mud, and moisture into the interior of hydraulic cylinder working elements. It is most often mounted on the pins or pivots in the lugs of cylinders, where it prevents dirt from entering the lubricated space.

Construction and operation:
The wiper is made of polyurethane (PU) with high abrasion resistance, set in a steel casing providing rigidity and secure hold in the housing. The Z-07 design allows the wiper to be driven into the assembly, ensuring stable mounting even under conditions of heavy dust and vibration. During operation, it effectively “scrapes” dirt from the moving surface, protecting the bushings and internal lubricant from degradation.

Applications:
- pins and hinges of hydraulic cylinders,
- cylinder lugs in construction and agricultural machinery,
- mechanisms lubricated with solid grease, exposed to mud and dust.

Materials:
- working part: polyurethane (PU),
- casing: steel,

Dimensions:
- internal diameter (d): 55 mm
- external diameter (D): 65 mm
- height/thickness (H): 4 mm

Dimensions in inches (gland and universal seals):
- d × D × H: 2.17" × 2.56" × 0.16"
