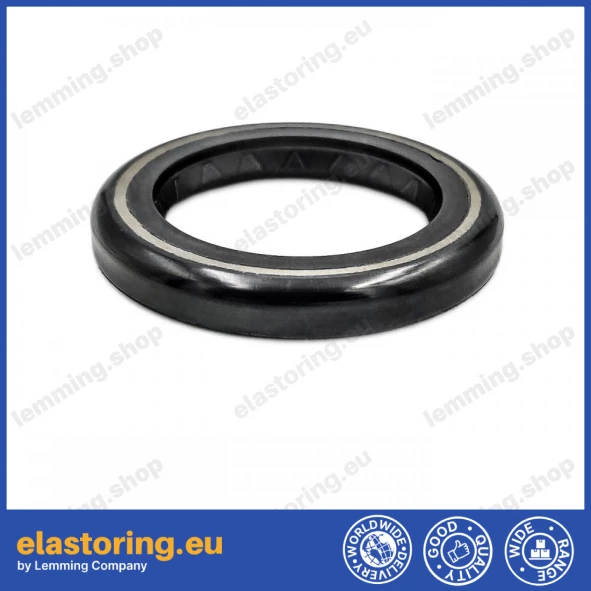

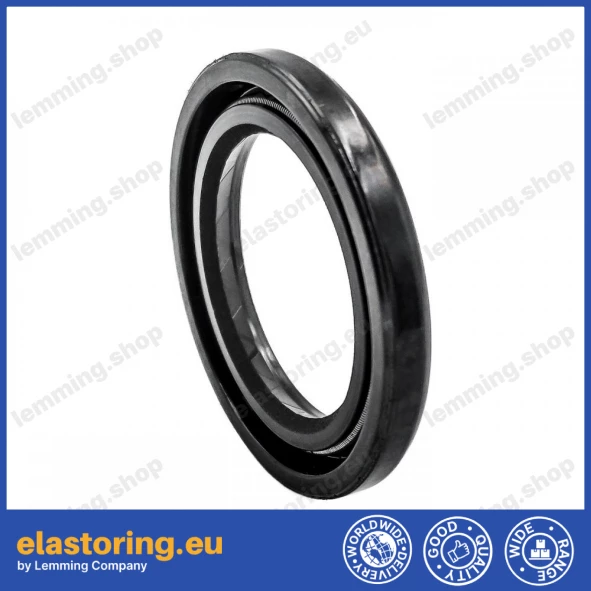

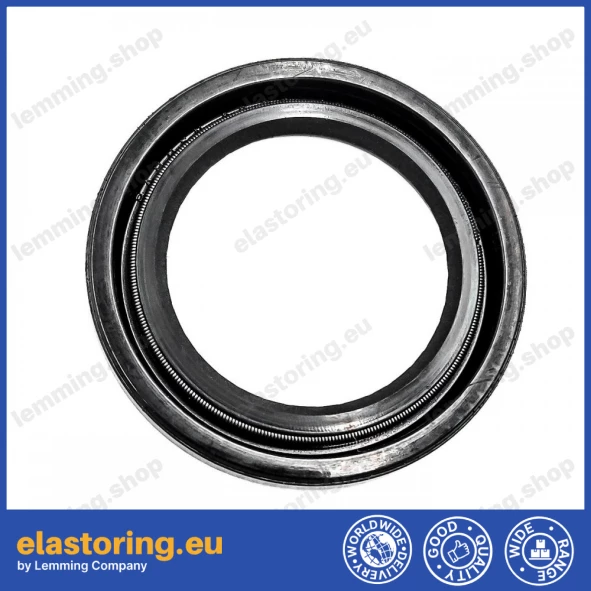

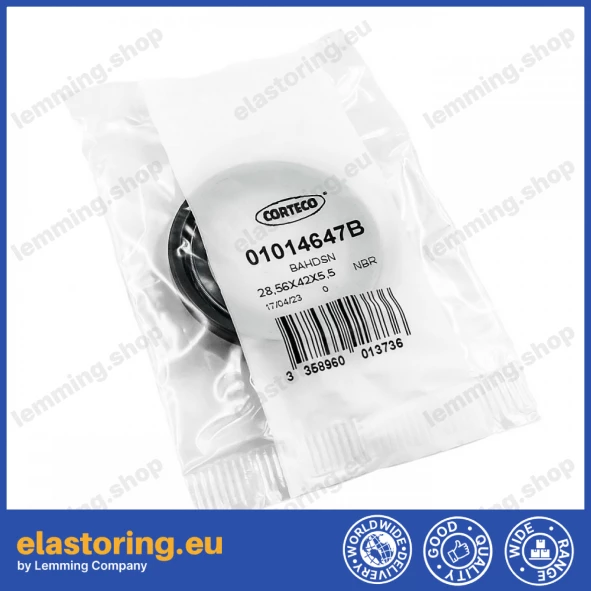

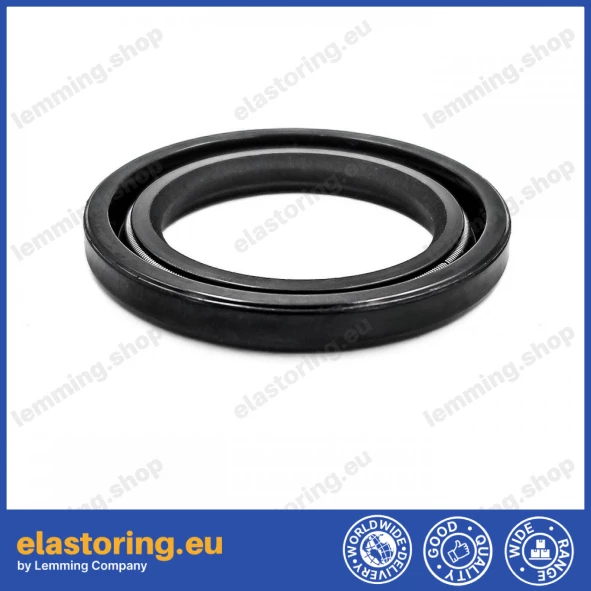

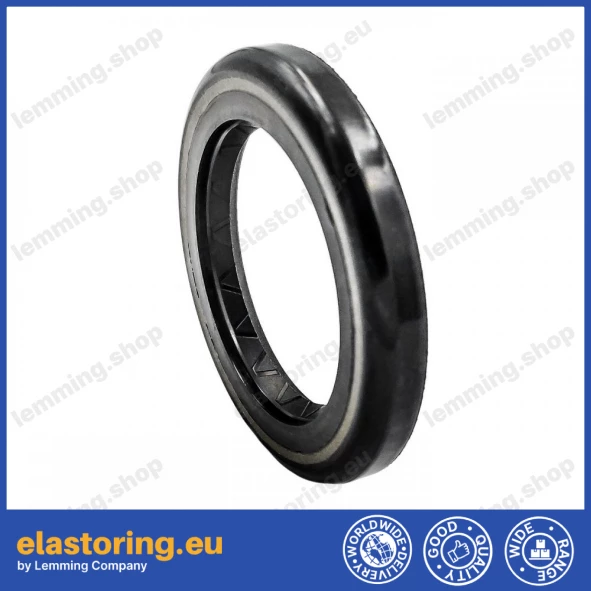

High pressure oil seal 28,56x42x5,5 BAHDSN NBR














High pressure oil seal 28,56x42x5,5 BAHDSN NBR
- Code: 01014647B
- In Stock: 41 pcs.
Updated: 01.10.2025 13:25
Rotary seal dimension | |
Shaft Diameter (mm) | 28,56 |
Housing diameter (mm) | 42 |
Width 1 | 5,5 |
Details | |
Pressure | P > 10Bar |
Seal type | BAHDSN |
Material type | NBR |
- Brand: Corteco
- SKU: 8332
23.50€/pcs.
5 pcs. or more 4.93€/pcs.
10 pcs. or more 4.46€/pcs.
Interchangeable
Similar
..
22.32€
In Stock: 86
..
56.39€
In Stock: 4
Description
The High-Pressure Shaft Seal 28.56x42x5.5 BAHDSN NBR is a specialist seal designed for hydraulic engines, which are a key component of hydrokinetic drives. Its open metal insert on the front side ensures a stable contact surface and prevents deformation under pressure. Made of nitrile rubber (NBR), it offers resistance to oils and greases, making it suitable for demanding hydraulic applications.
Dimensions:
-
28.56 x 42 x 5.5 mm (d1 x D x b)
-
1.125" x 1.654" x 0.217"
Technical details:
-
Material: NBR (nitrile rubber)
-
Max working pressure: 150 bar
-
Average working pressure: 100 bar
-
Max linear speed: 2 m/s
-
Interchangeable with: BAHD, BAHDSN, BAKHDSN
Applications:
-
Shaft sealing in hydraulic motors
-
Hydrokinetic drive systems
