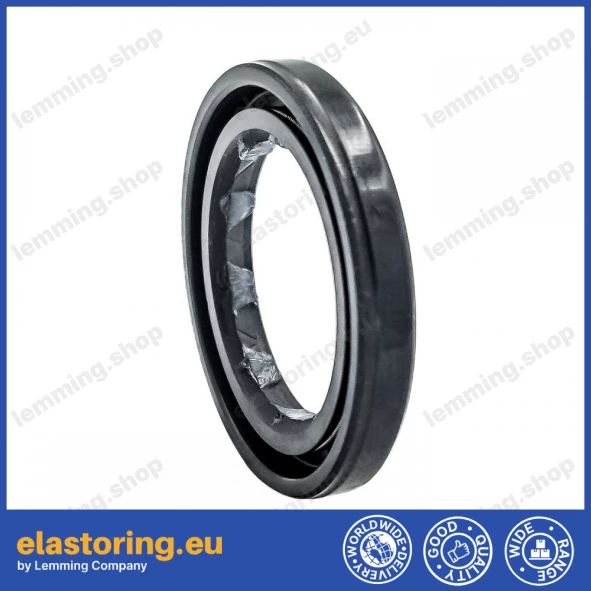

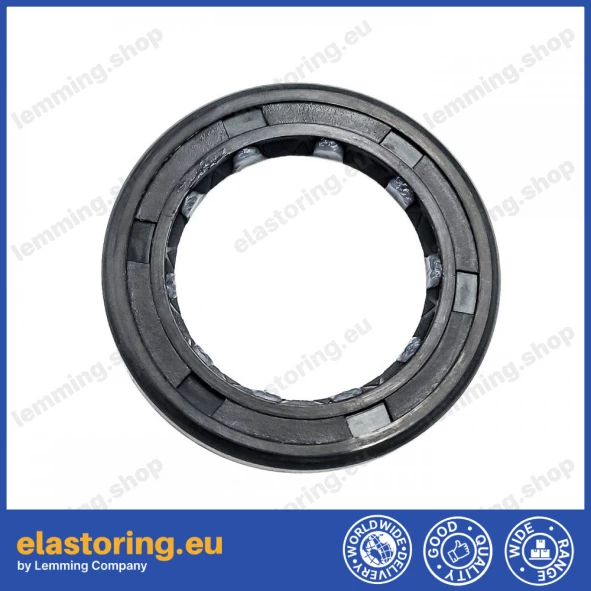

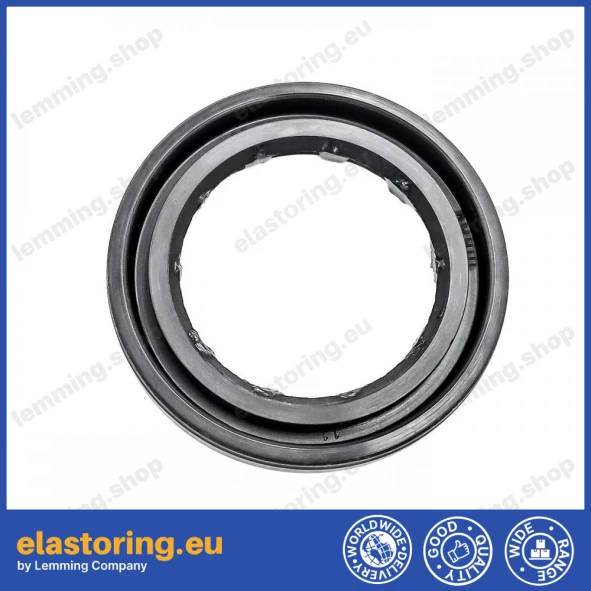

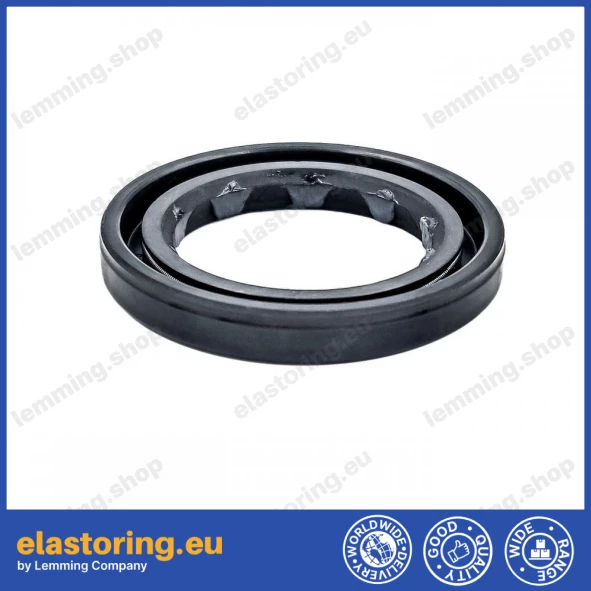

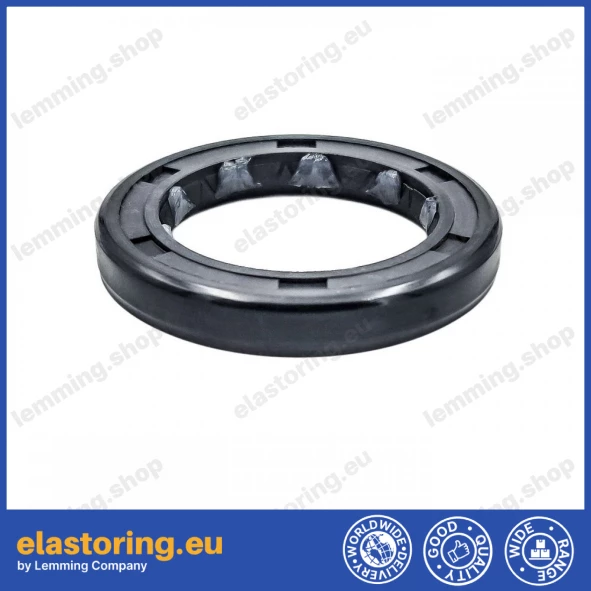

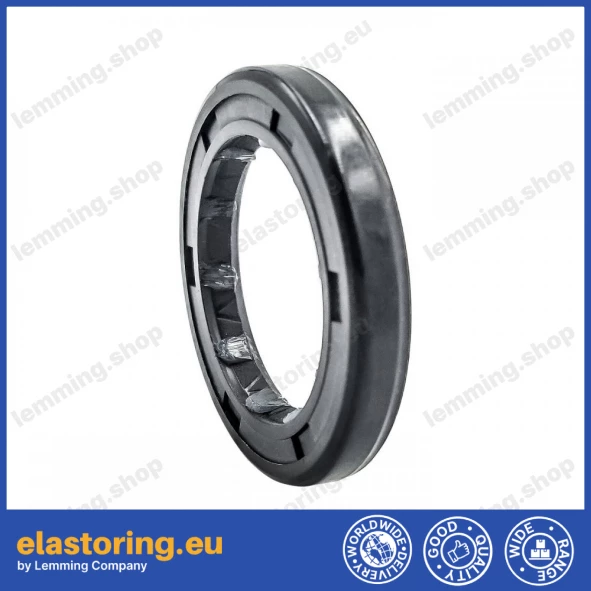

High pressure oil seal 28,56x42x5,5 BAKHDSN NBR

High pressure oil seal 28.56x42x5.5 BAKHDSN NBR is designed for shaft sealing in hydraulic motors used in hydrokinetic drives. Its open metal insert on the front side provides a stable contact surface and reduces deformation under pressure. Made of nitrile rubber (NBR), it is suitable for hydraulic applications.

Technical details:

• Type: BAKHDSN NBR (nitrile rubber)

• Open metal insert on the front side

• Dimensions: 28.56 x 42 x 5.5 mm (d1 x D x b)

• Dimensions in inches: 1.125" x 1.654" x 0.217"

• Max working pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s

• Interchangeable with: BAHD, BAHDSN, BAKHDSN

Applications:

• Shaft sealing in hydraulic motors

• Hydrokinetic drive systems
