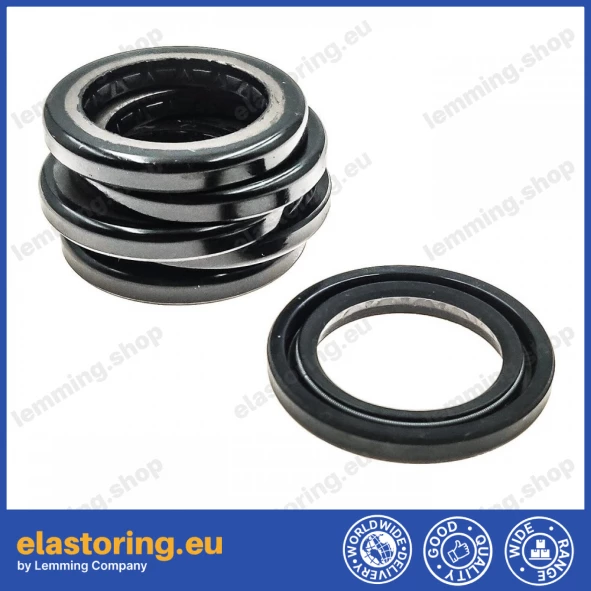

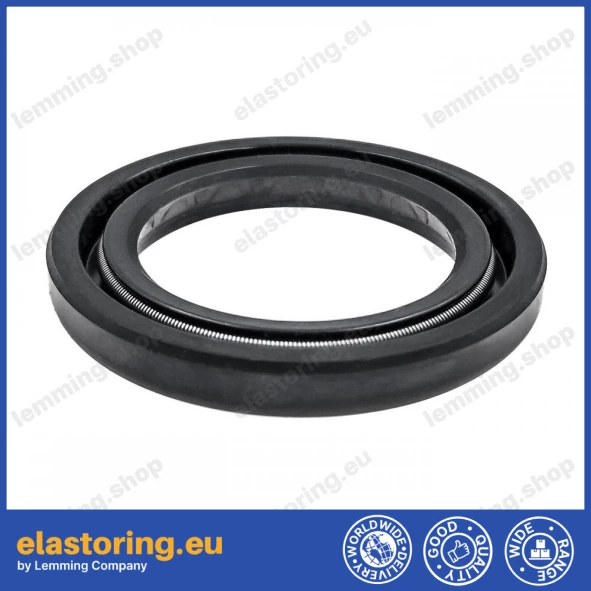

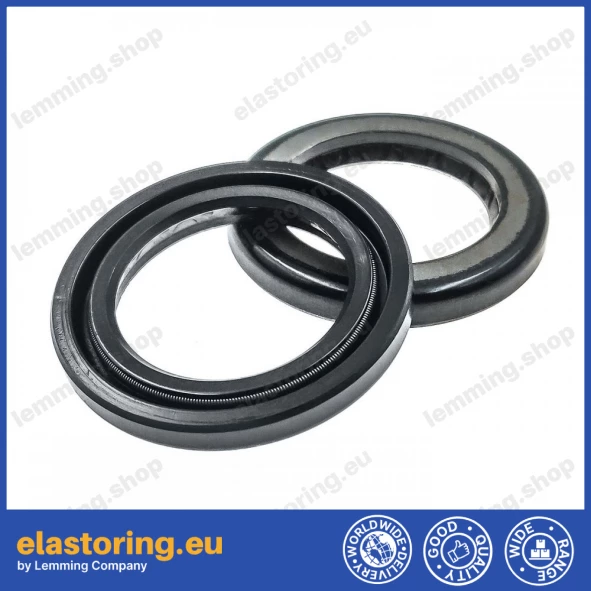

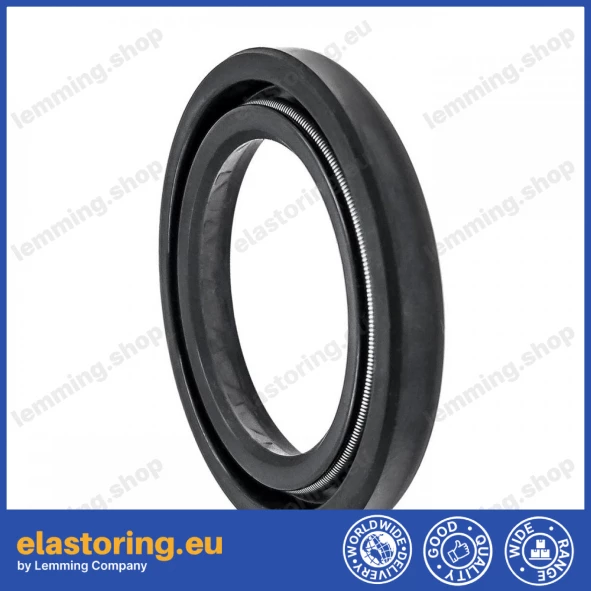

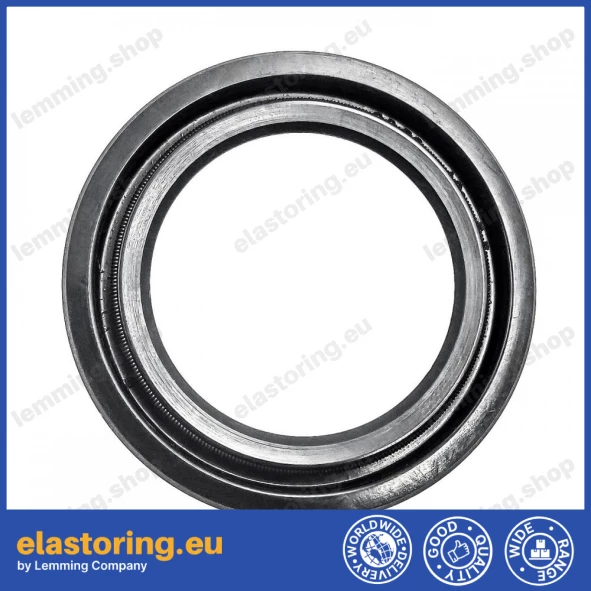

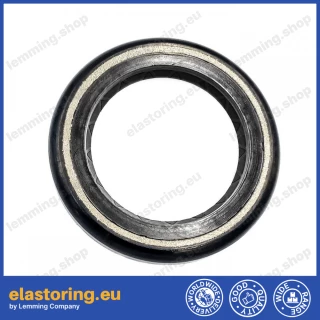

High pressure oil seal 28,56x42x5,5 BAKHDSN NBR

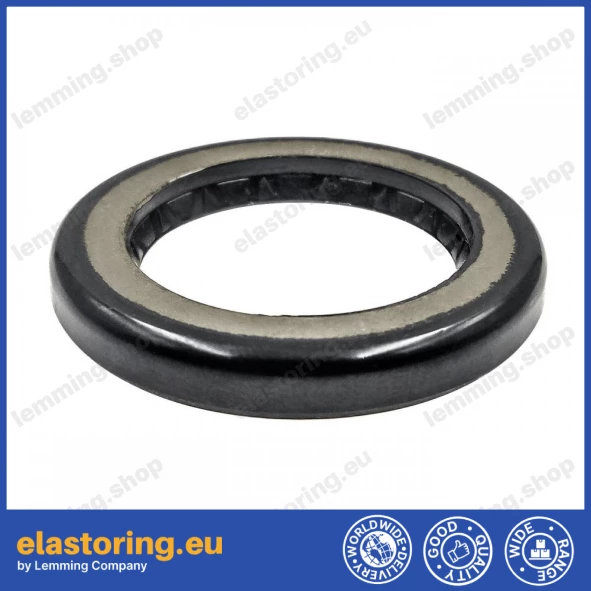

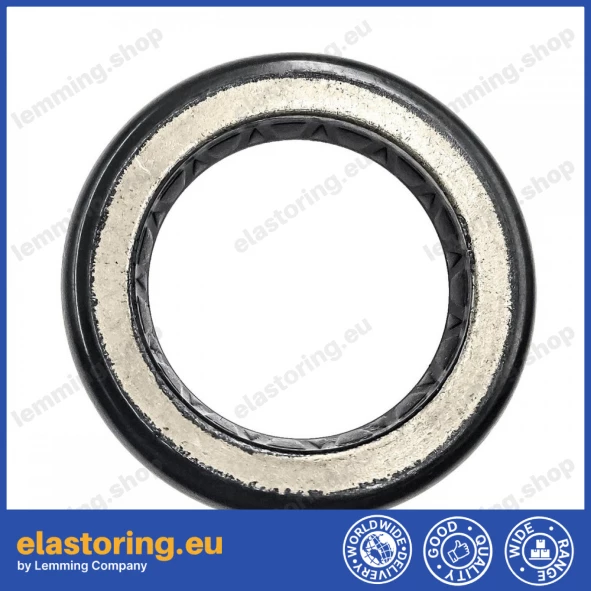

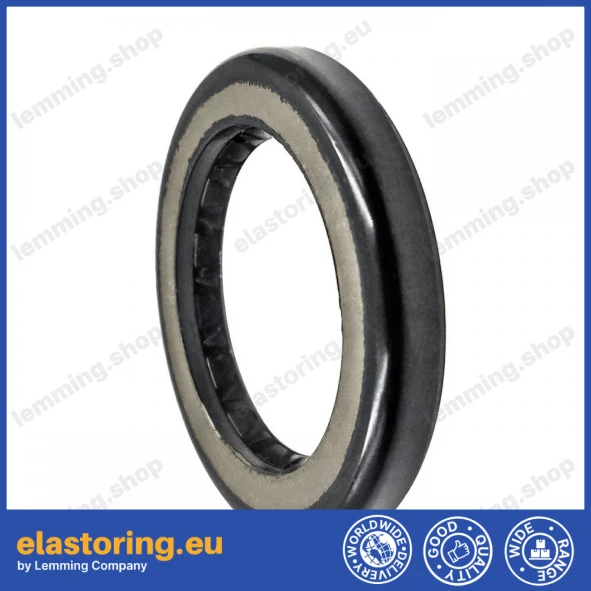

The High-Pressure Seal 28.56x42x5.5 BAHD NBR is a specialized sealing element used in hydraulic engines. Its design allows it to withstand high working pressures, making it well-suited for hydrokinetic drives. The open metal insert on the front side ensures a stable contact surface, protecting the seal from deformation under pressure. Made of nitrile rubber (NBR), it provides resistance to oils and greases.

Dimensions:

• 28.56 x 42 x 5.5 mm (d1 x D x b)

• 1.125" x 1.654" x 0.217"

Technical details:

• Manufacturer: SOG (Taiwan)

• Material: NBR (nitrile rubber)

• Max working pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s

• Interchangeable with: BAHD, BAHDSN, BAKHDSN

Applications:

• Shaft sealing in hydraulic motors

• Hydrokinetic drive systems
