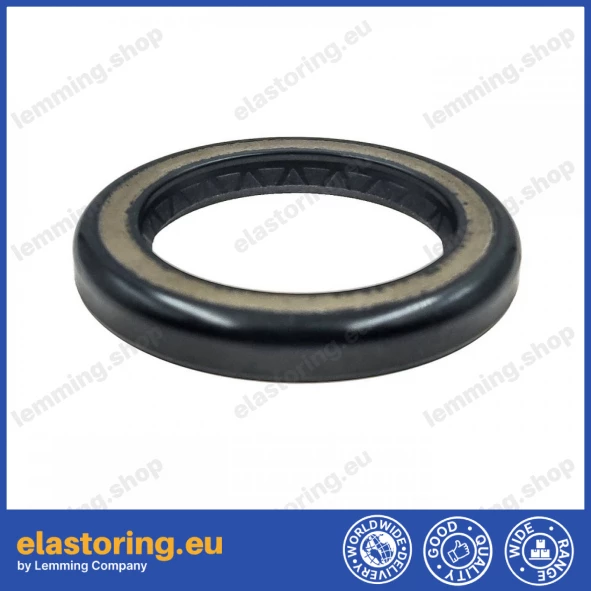

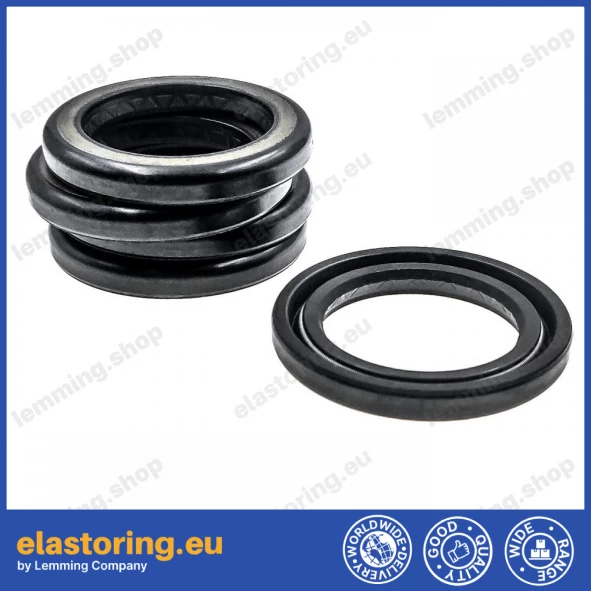

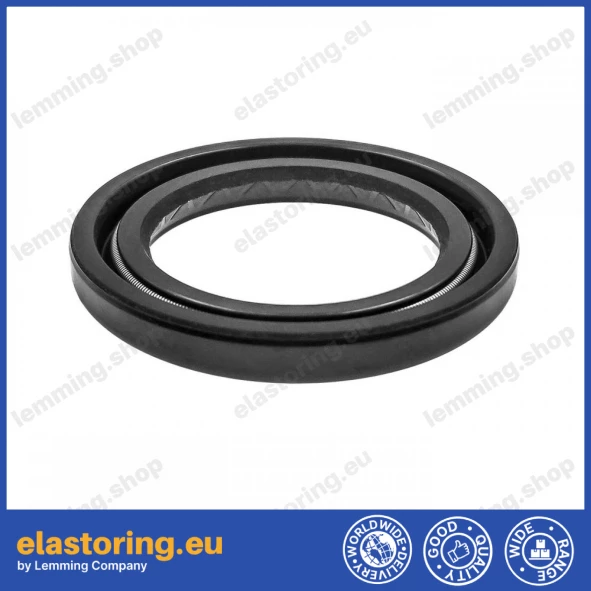

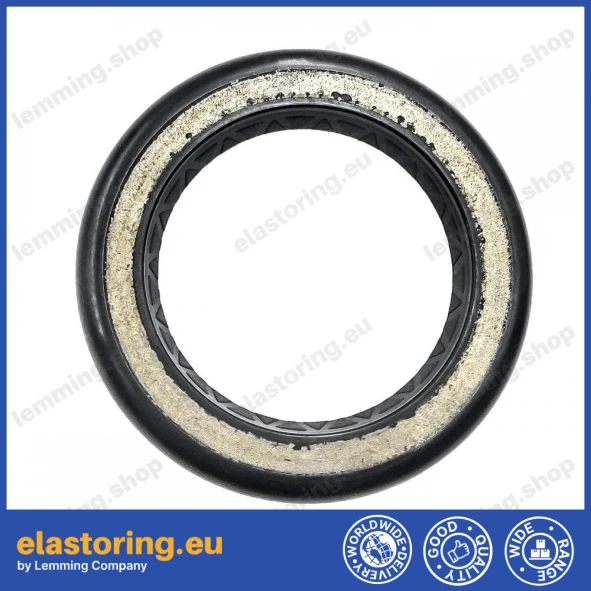

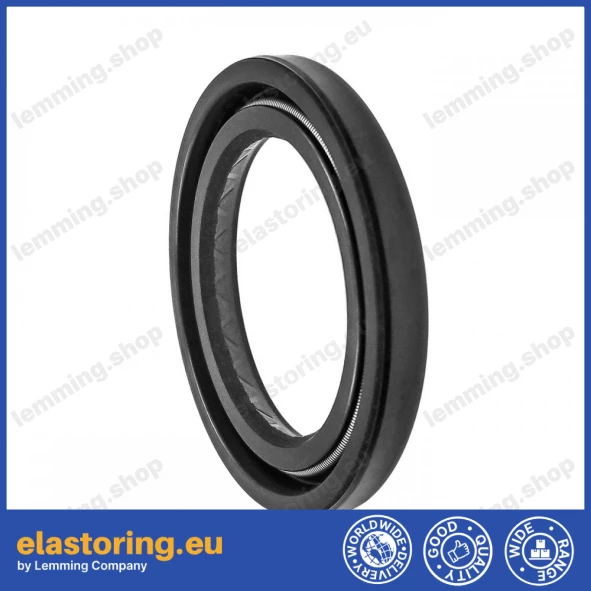

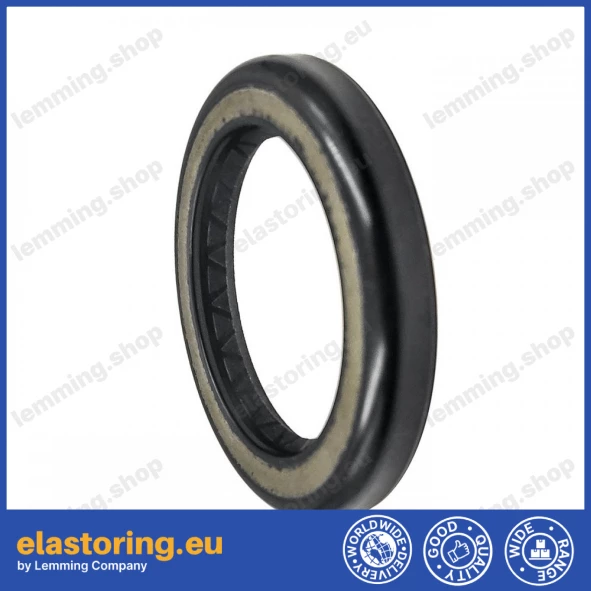

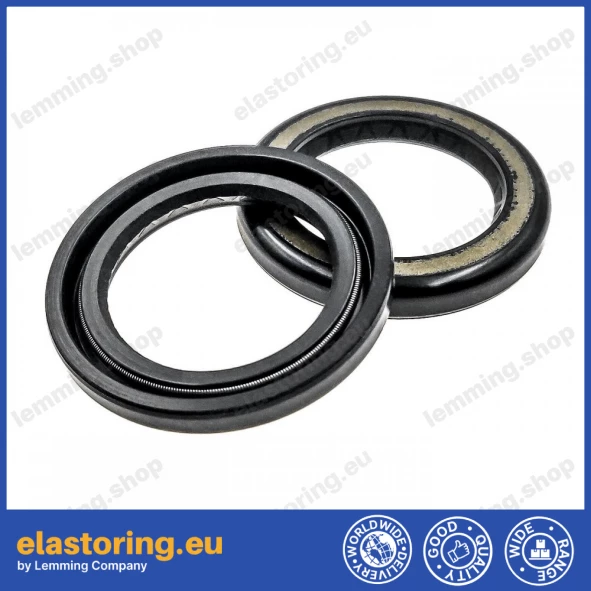

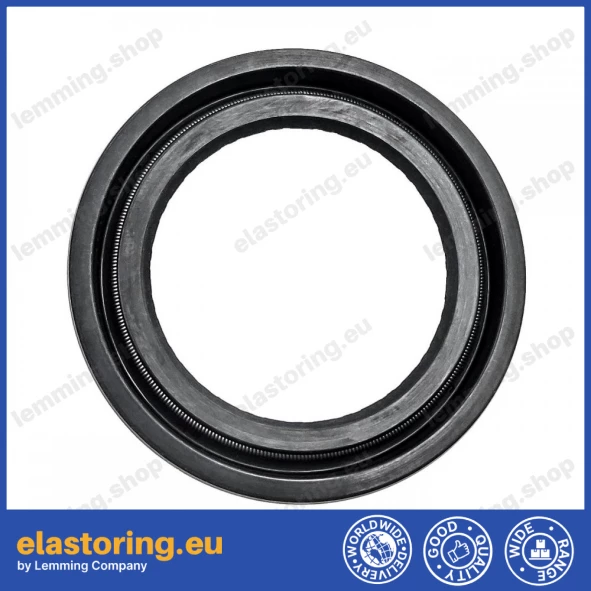

High pressure oil seal 28,56x42x5,5 NS01W NBR [BAHD]

The High-Pressure Seal 28.56x42x5.5 NS01W NBR [BAHD] is a specialist shaft seal used in hydraulic engines. Its design allows it to withstand high working pressure, making it ideal for hydrokinetic drives. The open metal insert on the front side ensures a stable contact surface and protects against deformation under pressure. Made of nitrile rubber (NBR), it is resistant to oils and greases.

Dimensions:

• 28.56 x 42 x 5.5 mm (d1 x D x b)

• 1.125" x 1.654" x 0.217"

Technical details:

• Manufacturer: Wintek (Taiwan)

• Type: NS01W NBR [BAHD]

• Material: NBR (nitrile rubber)

• Max working pressure: 150 bar

• Average working pressure: 100 bar

• Max linear speed: 2 m/s

• Interchangeable with: BAHD, BAHDSN, BAKHDSN

Applications:

• Shaft sealing in hydraulic motors

• Hydrokinetic drive systems
