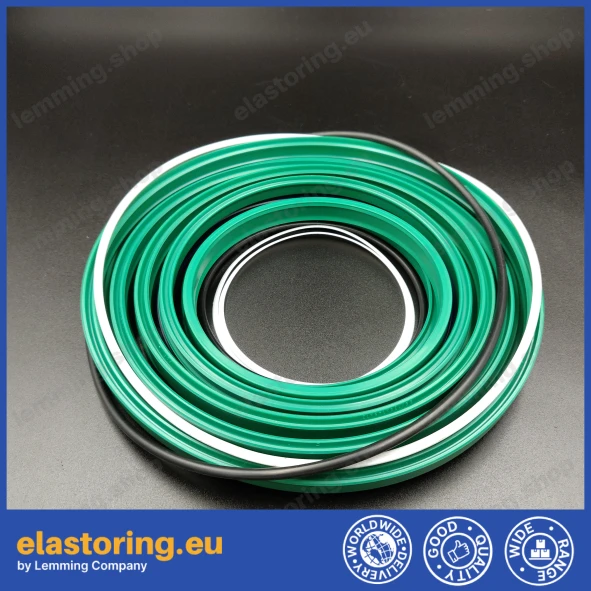

Seals kit for Georg KRA 167-5

Non-original technical seal kit designed for the Georg hydraulic cylinder, model KRA 167-5. The kit includes components made of polyurethane (PU) and nitrile rubber (NBR70), ensuring appropriate system sealing under standard hydraulic operating conditions.

Design of Sealing Profiles

Profile WH13 (Wiper): A polyurethane wiper seal designed to clean the piston rod from solid contaminants such as dust, dirt, and moisture, preventing them from entering the cylinder. It features a flexible wiping lip and a stable fit within the housing groove.

Profile RS10A (Rod Seal): An asymmetric rod seal made of polyurethane (PU). The profile is engineered with a shortened inner (dynamic) lip, which optimizes pressure distribution and minimizes friction during reciprocating motion, providing an effective barrier for pressurized hydraulic fluid.

O-ring: A circular cross-section sealing ring made of NBR material with a hardness of 70 Shore A, designed for static sealing applications to secure the stationary joints of the gland components.

Kit Contents and Dimensional Parameters

The kit consists of the following components sorted by metric and inch dimensions (d × D × H):

Wiper Seals (WH13 PU):

• 90 × 102 × 5/10 mm (3.543 × 4.016 × 0.197/0.394 inches) – 1 pc.
  Inside diameter (d): 90 mm | Outside diameter (D): 102 mm | Total height (H/h): 5 / 10 mm
• 107 × 119 × 5/10 mm (4.213 × 4.685 × 0.197/0.394 inches) – 1 pc.
  Inside diameter (d): 107 mm | Outside diameter (D): 119 mm | Total height (H/h): 5 / 10 mm
• 125 × 137 × 5/10 mm (4.921 × 5.394 × 0.197/0.394 inches) – 1 pc.
  Inside diameter (d): 125 mm | Outside diameter (D): 137 mm | Total height (H/h): 5 / 10 mm
• 145 × 157 × 5/10 mm (5.709 × 6.181 × 0.197/0.394 inches) – 1 pc.
  Inside diameter (d): 145 mm | Outside diameter (D): 157 mm | Total height (H/h): 5 / 10 mm
• 167 × 179 × 5/10 mm (6.575 × 7.047 × 0.197/0.394 inches) – 1 pc.
  Inside diameter (d): 167 mm | Outside diameter (D): 179 mm | Total height (H/h): 5 / 10 mm

Rod Seals (RS10A PU):

• 90 × 98 × 11.7 mm (3.543 × 3.858 × 0.461 inches) – 1 pc.
  Inside diameter (d): 90 mm | Outside diameter (D): 98 mm | Height (H): 11.7 mm
• 107 × 115 × 11.7 mm (4.213 × 4.528 × 0.461 inches) – 1 pc.
  Inside diameter (d): 107 mm | Outside diameter (D): 115 mm | Height (H): 11.7 mm
• 125 × 133 × 11.7 mm (4.921 × 5.236 × 0.461 inches) – 1 pc.
  Inside diameter (d): 125 mm | Outside diameter (D): 133 mm | Height (H): 11.7 mm
• 145 × 153 × 11.7 mm (5.709 × 6.024 × 0.461 inches) – 1 pc.
  Inside diameter (d): 145 mm | Outside diameter (D): 153 mm | Height (H): 11.7 mm
• 167 × 175 × 11.7 mm (6.575 × 6.890 × 0.461 inches) – 1 pc.
  Inside diameter (d): 167 mm | Outside diameter (D): 175 mm | Height (H): 11.7 mm

Static Elements:

• O-ring 180.0 × 4.0 mm NBR70 – 1 pc.
  Inside diameter (d): 180 mm | Cross section (H): 4 mm

If you cannot find the required size or profile in our standard product range, please contact us. We offer express custom manufacturing of seals using CNC machining centers based on your exact technical specifications.
